Renesas Electronics PWM Controller for ISL68200
- RS庫存編號:
- 121-5904
- 製造零件編號:
- ISL68200DEMO1Z
- 製造商:
- Renesas Electronics
查看此類別
- RS庫存編號:
- 121-5904
- 製造零件編號:
- ISL68200DEMO1Z
- 製造商:
- Renesas Electronics
法例與合規
- COO (Country of Origin):
- US
產品詳細資訊

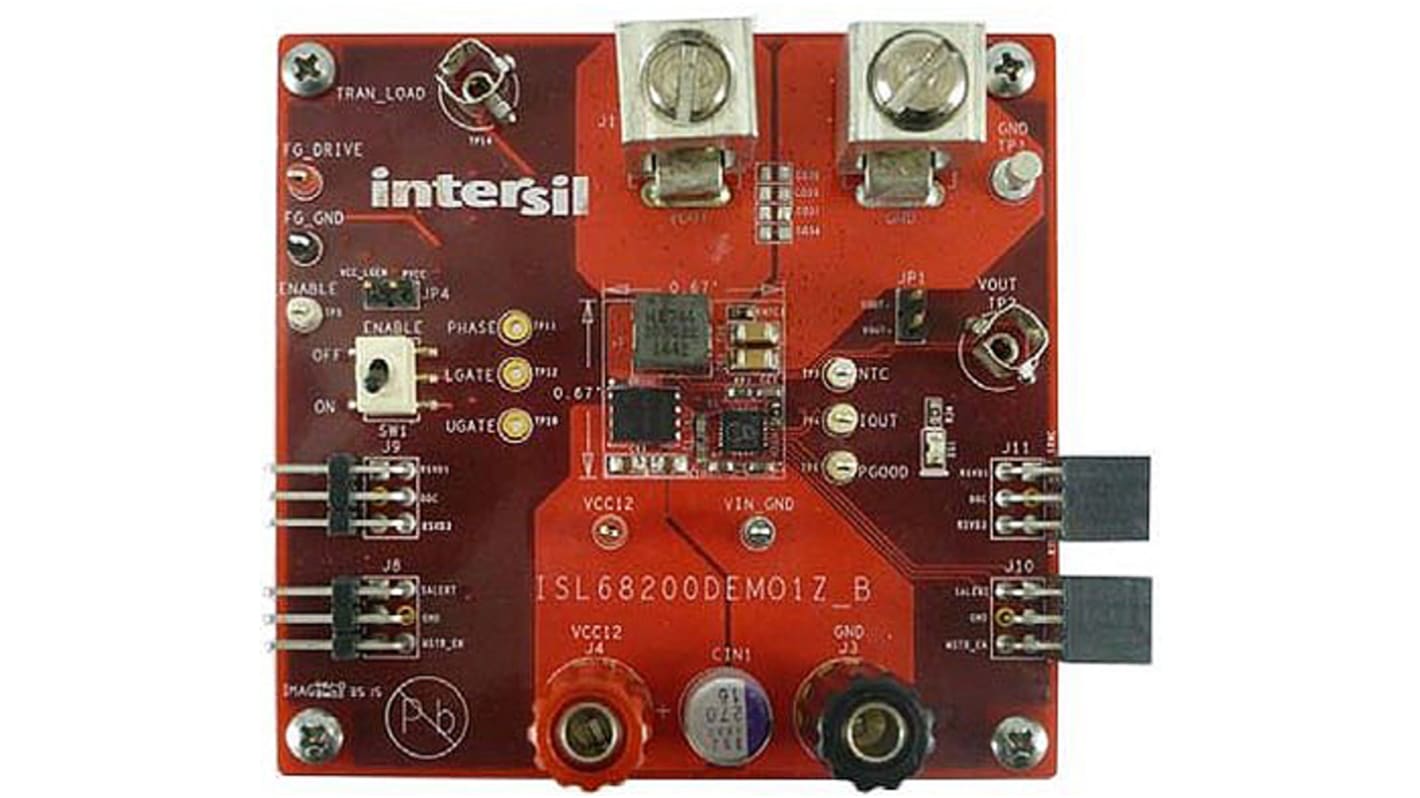

ISL68200 Hybrid Digital Controller Demonstration Board, Intersil
The ISL68200DEMO1Z is a Demonstration Board, based on the ISL68200, a single phase R4 technology Digital Hybrid PWM Controller with integrated Driver, and PMBus/SMBus/I²C and PFM Interface. Transient performance, fault protections, DC/AC regulations, PMBus programming, power sequencing, margining and other features can be evaluated using this board.
20A synchronous Buck Converter with PMBus control
On-board transient load with adjustable di/dt
Configurable through resistor pins
Cascadable PMBus connectors
Integrated LDO voltage regulators for single rail solution
Enable switch and Power-Good indicator
Compact board dimensions 17 x 17 mm
On-board transient load with adjustable di/dt
Configurable through resistor pins
Cascadable PMBus connectors
Integrated LDO voltage regulators for single rail solution
Enable switch and Power-Good indicator
Compact board dimensions 17 x 17 mm
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
PWM (Pulse Width Modulation) Controllers, Intersil
規格
| Attribute | Value |
| Power Management Function | PWM Controller |
| Kit Classification | Development Board |
| Featured Device | ISL68200 |
