Renesas Electronics Multiphase Controller for ISL68134 for Digital Multiphase Device
- RS庫存編號:
- 125-0641
- 製造零件編號:
- ISL68134-31P-EV1Z
- 製造商:
- Renesas Electronics
查看此類別
- RS庫存編號:
- 125-0641
- 製造零件編號:
- ISL68134-31P-EV1Z
- 製造商:
- Renesas Electronics
法例與合規
產品詳細資訊

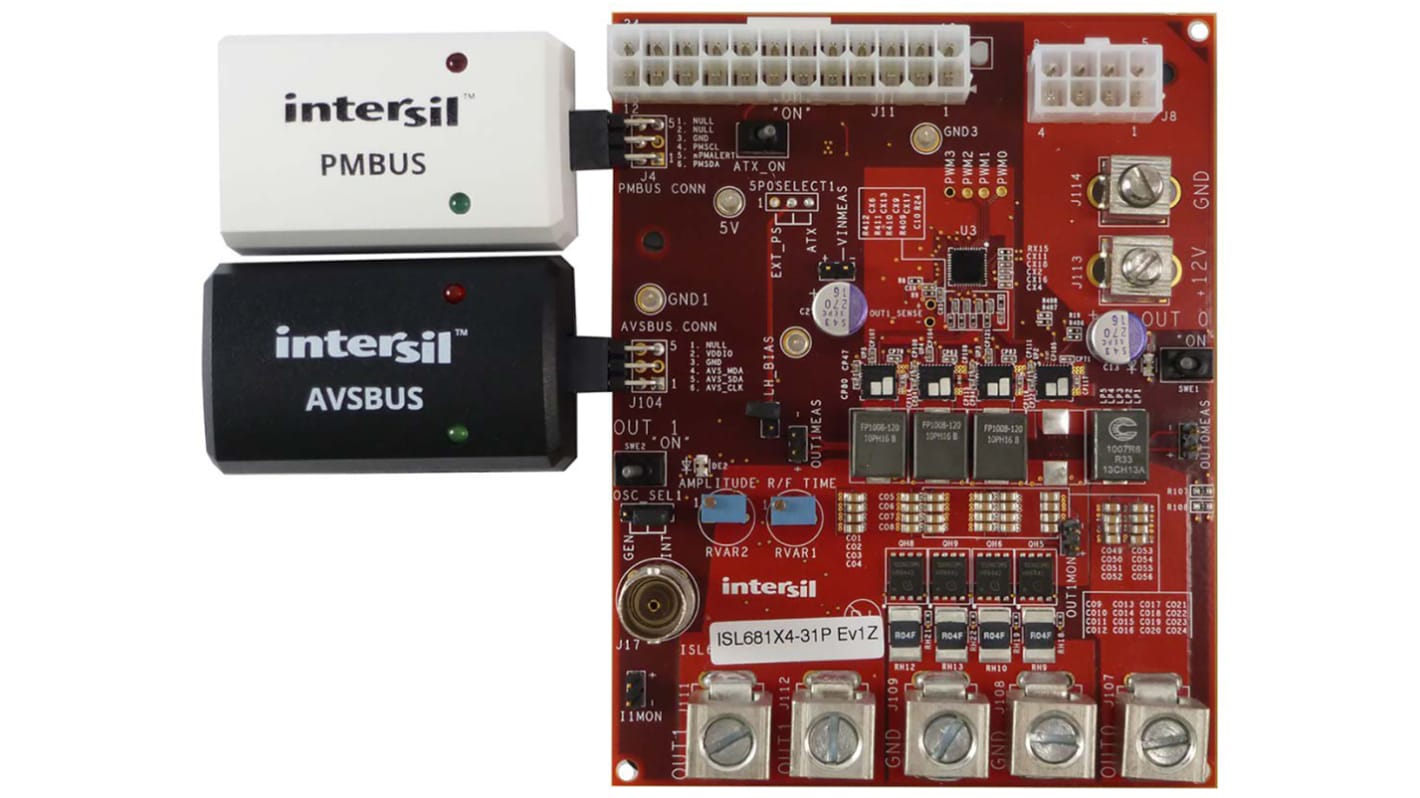

ISL68134, 3+1 Phase Digital Multiphase Controller Evaluation Board, Intersil
The ISL68134-31P-EV1Z board evaluates the ISL68134 Digital Dual Output, 4-Phase Configurable, PWM Controller with Adaptive Voltage Scaling (AVSBus) Bus.
The ISL68134 Digital Multiphase Controller is combined with the ISL99227 Smart Power Stage (SPS) to provide a balanced and highly efficient power.
The ISL68134 Digital Multiphase Controller is combined with the ISL99227 Smart Power Stage (SPS) to provide a balanced and highly efficient power.
Output from 0.6 V to 1.8 V
3+1 phase operation delivers up to 135A + 30A
Input from 5 V to 16 V
0.5% VOUT regulation accuracy
PMBus interface, AVSBus interface
3% IOUT telemetry accuracy
Transient load generator on-board to facilitate high di/dt loads testing
ATX or bench supply connections for input sources
3+1 phase operation delivers up to 135A + 30A
Input from 5 V to 16 V
0.5% VOUT regulation accuracy
PMBus interface, AVSBus interface
3% IOUT telemetry accuracy
Transient load generator on-board to facilitate high di/dt loads testing
ATX or bench supply connections for input sources
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
PWM (Pulse Width Modulation) Controllers, Intersil
規格
| Attribute | Value |
| Power Management Function | Multiphase Controller |
| For Use With | Digital Multiphase Device |
| Kit Classification | Evaluation Board |
| Featured Device | ISL68134 |
