Renesas Electronics Buck Regulator for ISL8088 for Synchronous Buck Regulator
- RS庫存編號:
- 125-0651
- 製造零件編號:
- ISL8088EVAL2Z
- 製造商:
- Renesas Electronics
查看此類別
- RS庫存編號:
- 125-0651
- 製造零件編號:
- ISL8088EVAL2Z
- 製造商:
- Renesas Electronics
法例與合規
產品詳細資訊

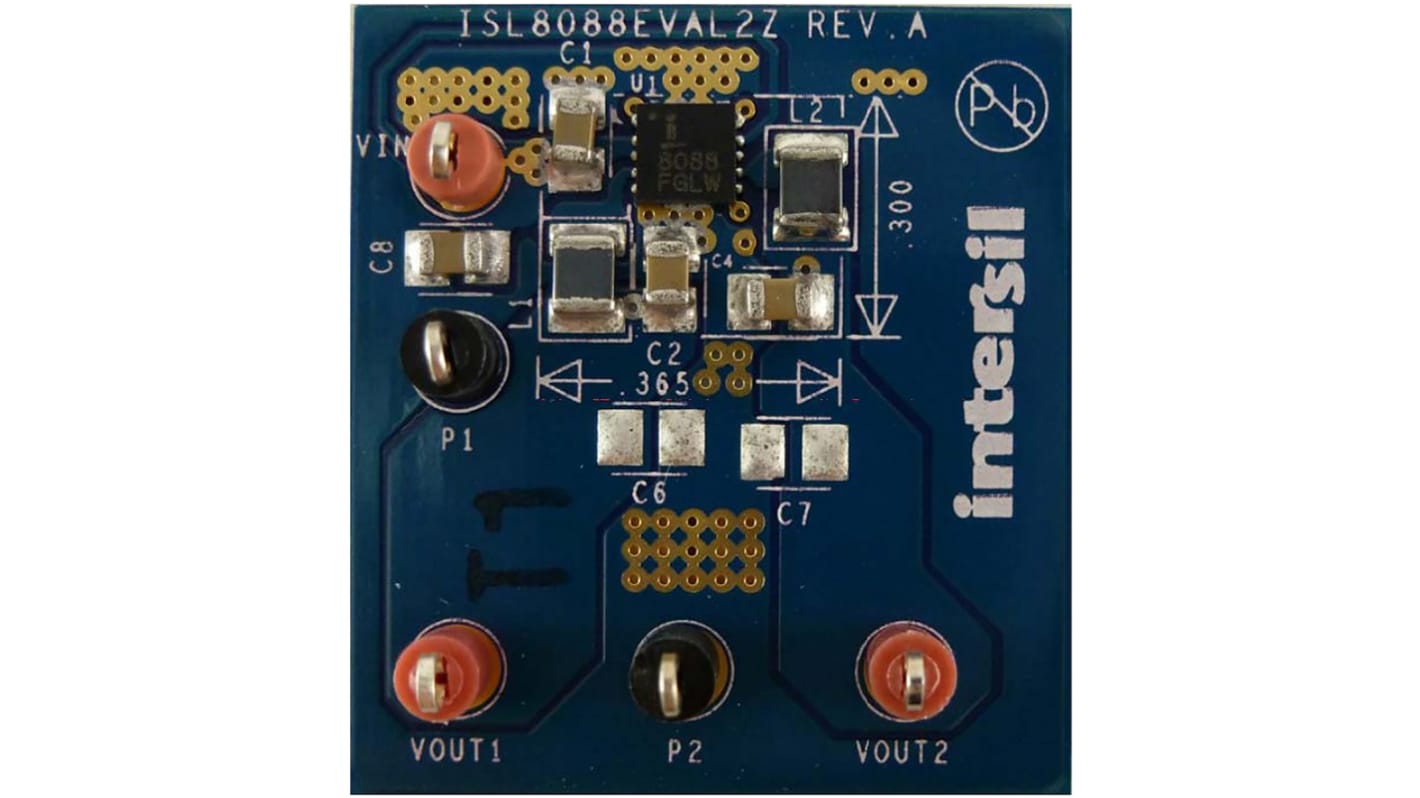

ISL8088 Dual 800mA Synchronous Buck Regulator Evaluation Board
The ISL8088EVAL2Z Evaluation Board demonstrates the features of the ISL8088, a Dual 800 mA Low Quiescent Current 2.25 MHz High Efficiency Synchronous Buck Regulator.
Up to 97% Efficiency
Power-Good (PG) output
Supply Voltage 2.75 V to 5.5 V
3% Output Accuracy over variation in load/line/temperature
Start-up with Pre-biased Output
2 ms Internal Digital Soft-Start
Soft-Stop Output Discharge During Disabled
30 μA Quiescent Supply Current in PFM Mode
PFM Mode selected and optional Forced PWM Mode
External Synchronisation up to 4 MHz
6.5 μA typical Logic Controlled Shutdown Current
100% maximum Duty Cycle for Lowest Dropout
Internal Current Mode Compensation
Peak Current Limiting
Over-Temperature Protection
Independent enable channels
Power-Good (PG) output
Supply Voltage 2.75 V to 5.5 V
3% Output Accuracy over variation in load/line/temperature
Start-up with Pre-biased Output
2 ms Internal Digital Soft-Start
Soft-Stop Output Discharge During Disabled
30 μA Quiescent Supply Current in PFM Mode
PFM Mode selected and optional Forced PWM Mode
External Synchronisation up to 4 MHz
6.5 μA typical Logic Controlled Shutdown Current
100% maximum Duty Cycle for Lowest Dropout
Internal Current Mode Compensation
Peak Current Limiting
Over-Temperature Protection
Independent enable channels
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Switching Voltage Regulators, Intersil
規格
| Attribute | Value |
| Power Management Function | Buck Regulator |
| For Use With | Synchronous Buck Regulator |
| Kit Classification | Evaluation Board |
| Featured Device | ISL8088 |
