MikroElektronika PWM Click PWM Controller for PCA9685PW for Robots, Servo Motors, LED Drivers

查看此類別
可享批量折扣

小計（1 件）*

HK$144.20

Add to Basket
選擇或輸入數量
有庫存
  • 7 件準備從其他地點送貨
  • 加上 16 件從 2026年2月03日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 4HK$144.20
5 +HK$141.30

* 參考價格

RS庫存編號:
136-0736
Distrelec 貨號:
301-63-618
製造零件編號:
MIKROE-1898
製造商:
MikroElektronika
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

MikroElektronika

Power Management Function

PWM Controller

Product Type

Power Management Development Kit

For Use With

Robots, Servo Motors, LED Drivers

Kit Classification

PWM Click

Featured Device

PCA9685PW

Kit Name

PWM Click

Standards/Approvals

No

Distrelec Product Id

30163618

PWM click mikroBUS™

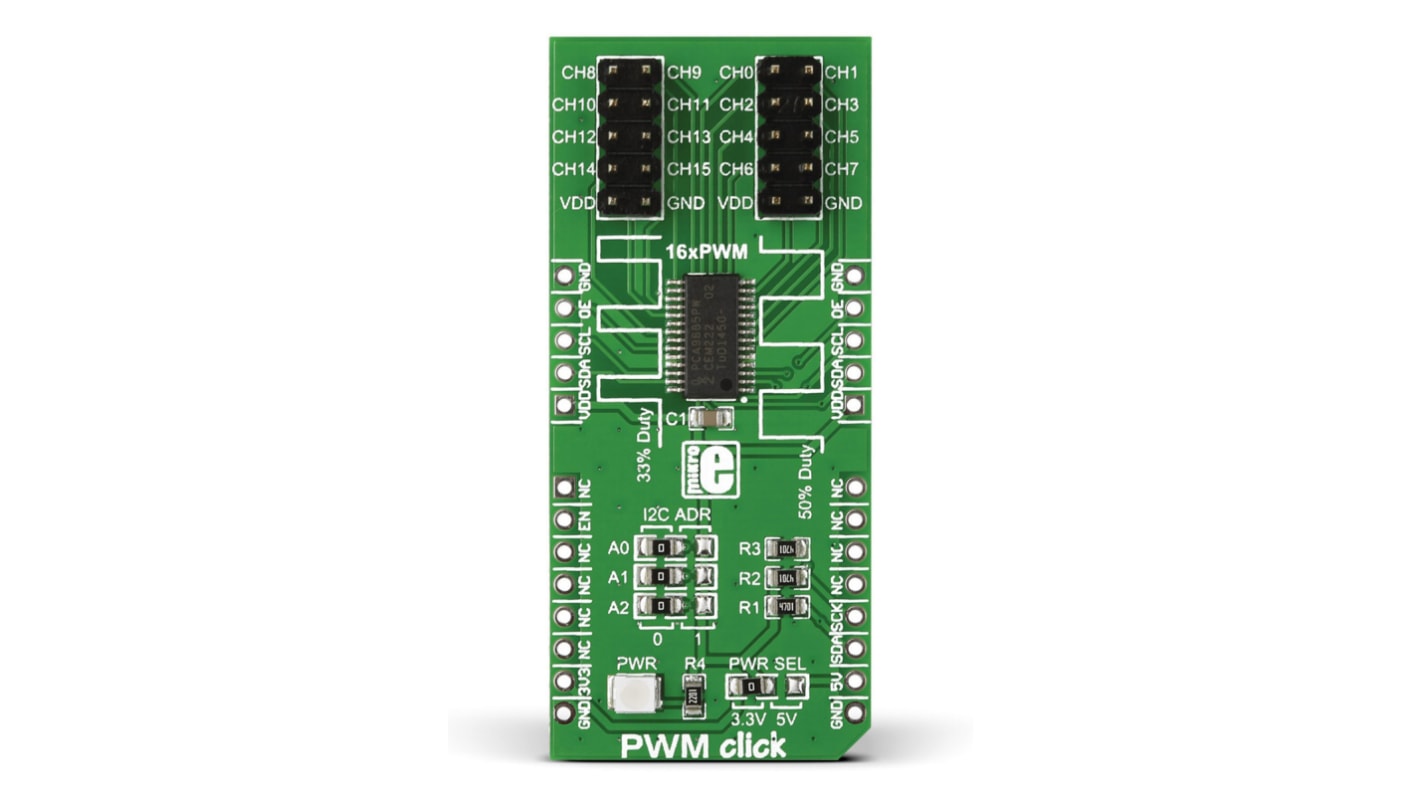

PWM click is a mikroBUS add-on board for controlling sixteen PWM (Pulse Width Modulation) outputs through a single I²C bus interface. It features the NXP PCA9685, a 16-channel, 12-bit resolution PWM Fm+ (Fast-mode Plus) I²C bus LED controller. Three jumpers allow you to configure the board's I²C bus hardware binary address.

Up to seven PWM click boards can share the I²C bus on a different address

24 Hz to 1526 Hz programmable frequency

Adjustable PWM duty cycle from 0% to 100%

3.3 V or 5 V power supply on mikroBUS socket

Dimensions 57.15 x 25.4 mm

Click mikroBUS™ Interface Boards


Note

Click board comes with the header strips soldered.
