Semtech Wireless Power Evaluation Kit Multi Device Transmitter for TSWITX-5V2-EVM for TS80002 Transmitter

查看此類別
可享批量折扣

小計（1 件）*

HK$4,742.22

Add to Basket
選擇或輸入數量
最後的 RS 庫存
  • 最終 4 個，準備發貨
單位
每單位
1 - 4HK$4,742.22
5 +HK$4,268.00

* 參考價格

RS庫存編號:
165-3155
製造零件編號:
TSWITX-5V-2RX-EVM
製造商:
Semtech
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

Semtech

Power Management Function

Multi Device Transmitter

Product Type

Power Management Development Kit

For Use With

TS80002 Transmitter

Kit Classification

Shield

Featured Device

TSWITX-5V2-EVM

Kit Name

Wireless Power Evaluation Kit

Standards/Approvals

No

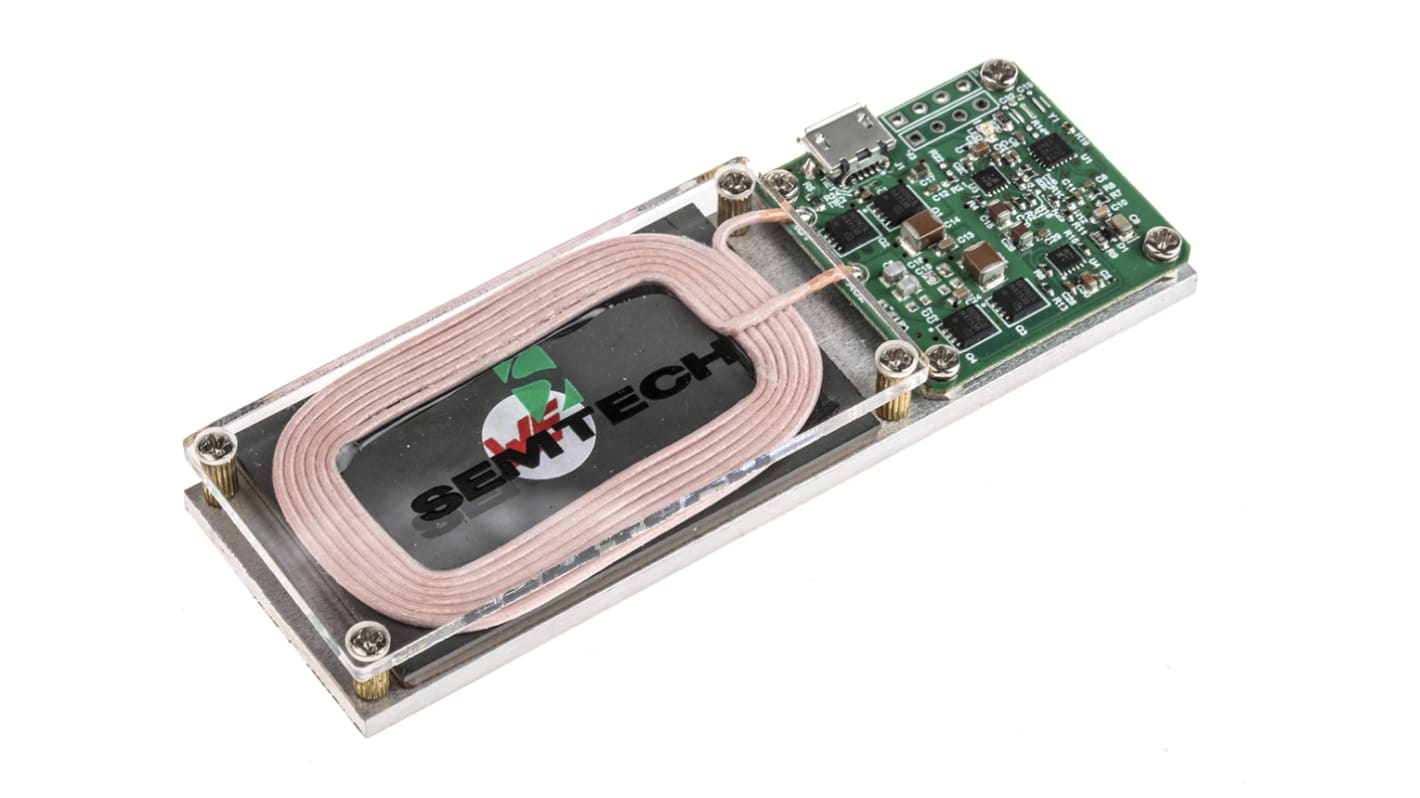

Semtech TSWITX-5V-2RX-EVM Wireless Charging Transmitter Evaluation Board


The Semtech TSWITX-5V-2RX-EVM is an evaluation platform for the test and experimentation of a wireless charging transmitter based on the Semtech TS80002 wireless power transmitter controller and TS61005 Dual N-channel MOSFET driver. This evaluation module, in conjunction with its compatible receiver, the TSWIRX-5V2-EVM, provides a complete system. This evaluation platform used for experimentation and testing of approximately 1-watt. The TSWITX-5V-2RX-EVM is a multi-device wireless charging platform that can support two TSWIRX5V2-EVM on currently with each RX output at a 100mA.

Features and Benefits


• Automatic timer with shut-off

• Foreign Object Detection (FOD)

• Freedom of positioning X, Y and Z of the receivers

• High switching frequency at 1MHz for low thermal dissipation into metal objects

• Input power supply is 5V

• Low power multi-device charging wireless power transmitter

• Pairs with two LinkCharge LP receivers simultaneously

Applications


• Electric tooth brushes

• Industries

• LED fixtures such as power and charging tea lights

• Low power Wearables

• Smart jewellery, trackers and clothing
