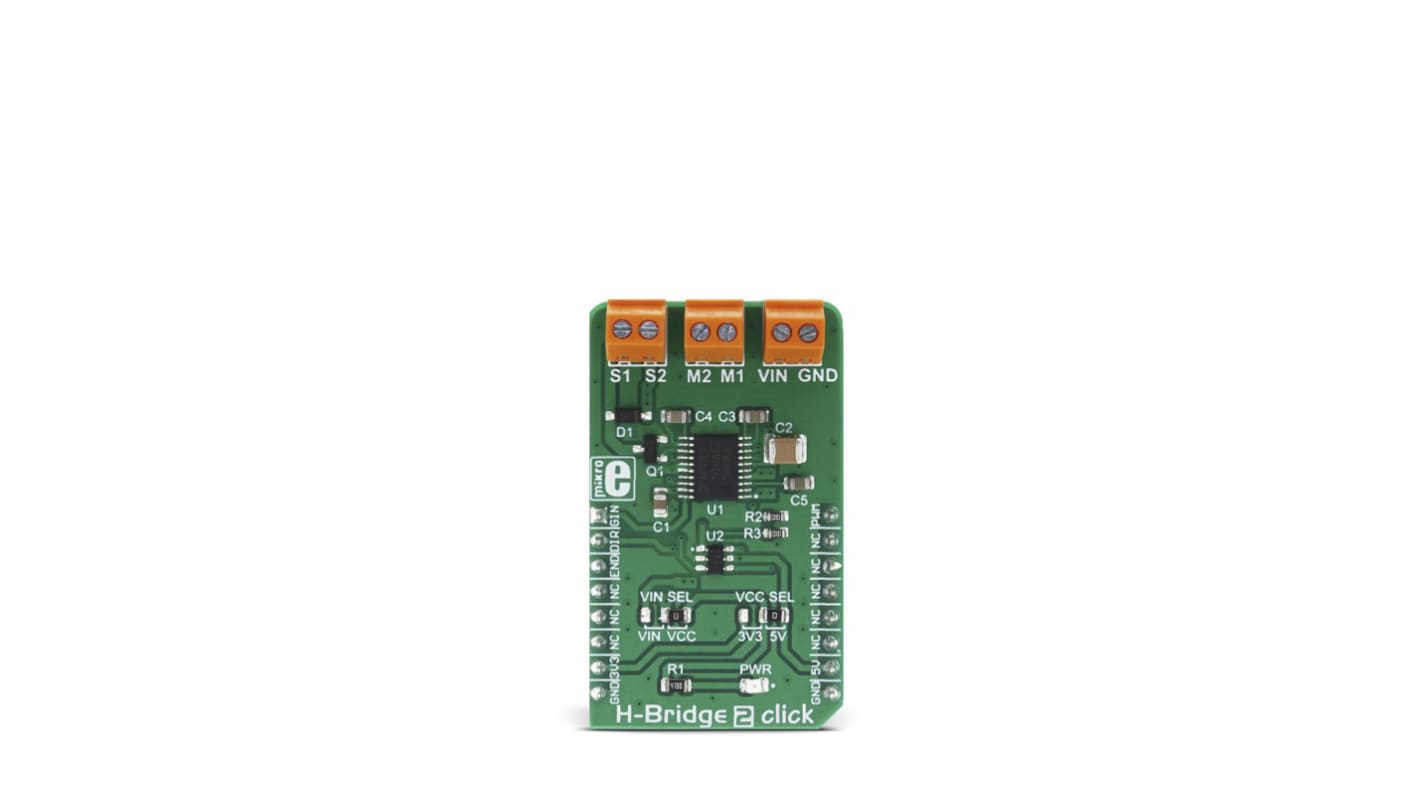

MikroElektronika H-Bridge 2 Click Board Half-Bridge Driver for MPC17510 for Mechanised Toys, Prototype Robots, Motor

查看此類別

小計（1 件）*

HK$179.00

Add to Basket
選擇或輸入數量
有庫存
  • 加上 14 件從 2025年12月15日 起發貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 +HK$179.00

* 參考價格

RS庫存編號:
184-0882
Distrelec 貨號:
301-63-889
製造零件編號:
MIKROE-3000
製造商:
MikroElektronika
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

MikroElektronika

Product Type

Development Kit

Power Management Function

Half-Bridge Driver

For Use With

Mechanised Toys, Prototype Robots, Motor Speed, Movement Actuators, Direction Control

Kit Classification

H-Bridge 2 Click Board

Featured Device

MPC17510

Kit Name

H-Bridge 2 Click Board

Standards/Approvals

No

Distrelec Product Id

301-63-889

H-Bridge 2 click can be used to drive a motor by utilizing a specific configuration of the output stage MOSFETs, known as the H-bridge. This configuration enables H-Bridge 2 click to drive a motor with up to 1.2A and 15V, providing control of the speed and direction, as well as the dynamic (rheostatic) braking capability. The Click board™ uses a monolithic H-bridge IC, which implements a set of features that provide trouble-free operation of the connected motor, such as the undervoltage detection, shoot-through current protection, efficient output stage MOSFETs with low RDSON, level shifted output for an external MOSFET control and more.

2.0 V to 15 V continuous operation

Output current 1.2 A (DC), 3.8 A (peak)

450 mΩ RDS(on) H-Bridge MOSFETs

5.0 V TTL- / CMOS-compatible inputs

PWM frequencies up to 200 kHz

Undervoltage shutdown

Cross-conduction suppression
