STMicroelectronics Dual Full Bridge Driver Board Power Management for L6207Q for Drive a Single 2-Phase Stepper Motor or

查看此類別
可享批量折扣

小計（1 件）*

HK$950.20

Add to Basket
選擇或輸入數量
有庫存
  • 3 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位
每單位
1 - 4HK$950.20
5 +HK$931.20

* 參考價格

RS庫存編號:
196-1700
製造零件編號:
EVAL6207Q
製造商:
STMicroelectronics
透過選取一個或多個屬性來查找類似產品。
選取全部

品牌

STMicroelectronics

Product Type

Power Management Development Kit

Power Management Function

Power Management

For Use With

Drive a Single 2-Phase Stepper Motor or up to Four DC Motors

Kit Classification

Evaluation Board

Featured Device

L6207Q

Kit Name

Dual Full Bridge Driver Board

Standards/Approvals

RoHS

COO (Country of Origin):
IT

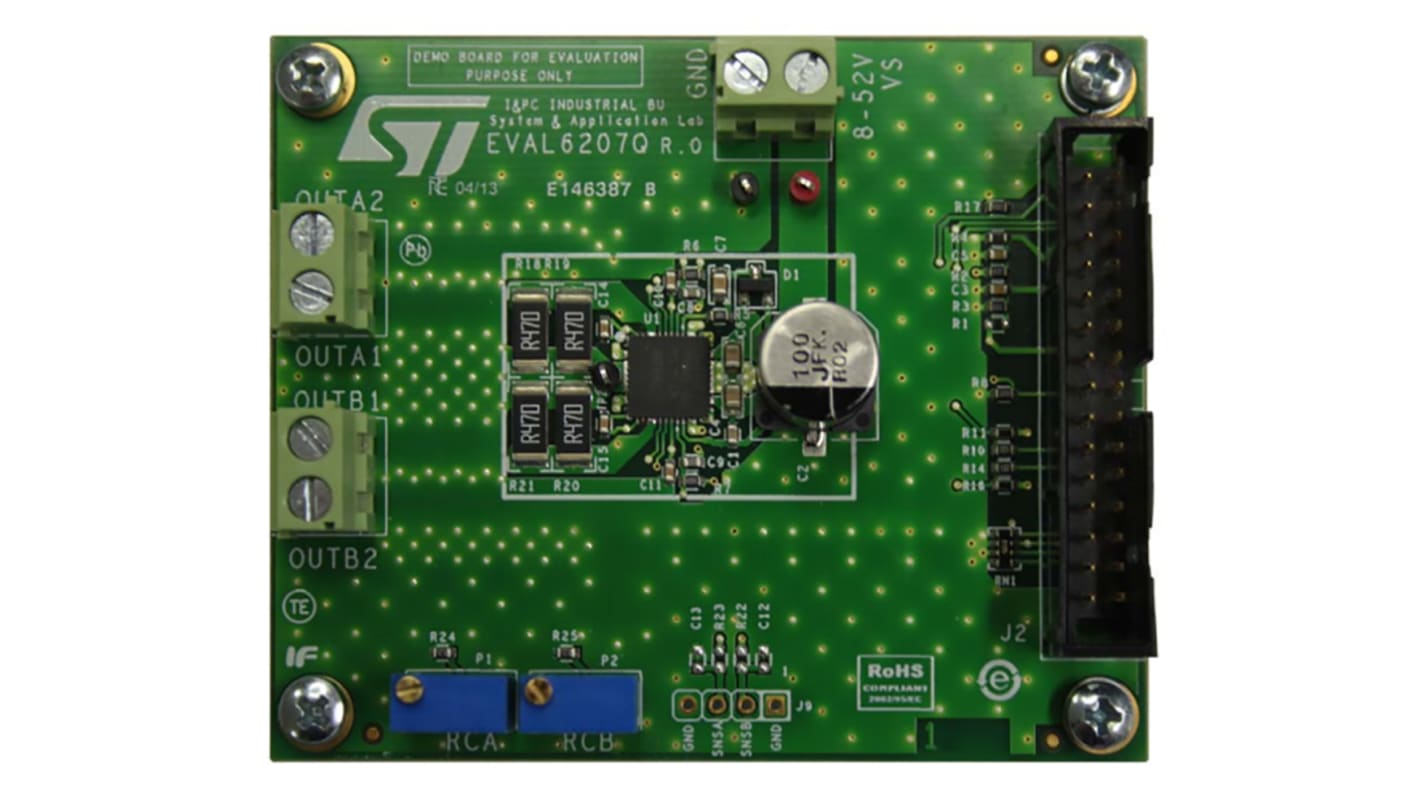

The EVAL6207Q is a dual full bridge driver board allowing the user to test the L6207Q functions.

The dual full bridges integrated into the L6207Q can be used to drive a single two phase stepper motor or up to four DC motors (unidirectional). The device also includes two independent constant OFF time PWM current controllers. The board can be driven using the STEVAL-PCC009V2 communication board and the PractiSPINTM2 evaluation software.

Voltage range from 8 V to 52 V

Phase current up to 2.5 Ar.m.s.

Adjustable constant tOFFPWM current control

Logic inputs 5 V / 3.3 V compliant

Small application footprint with high thermal performance

Suitable to be used in combination with PractiSPINTM2 software
