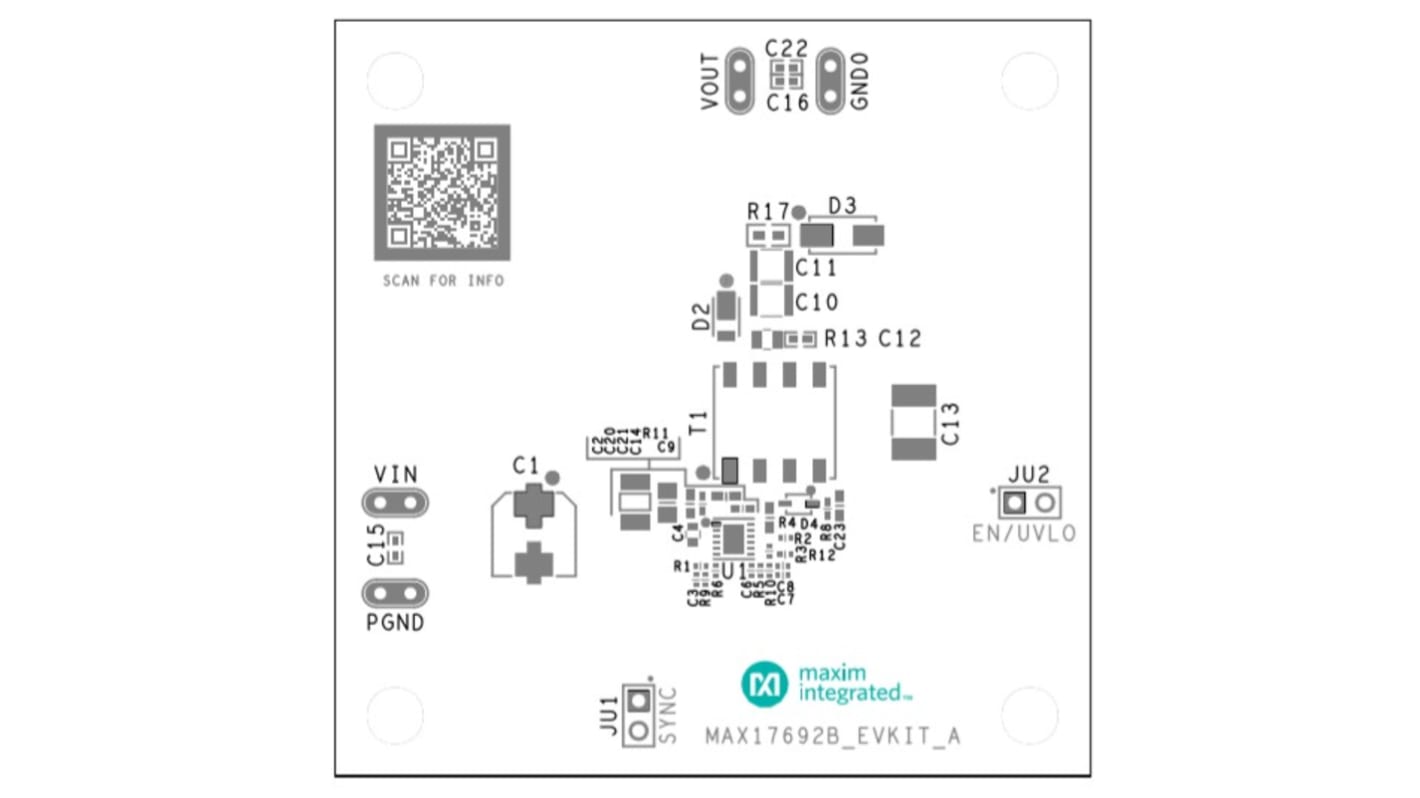

The Maxim Integrated evaluation kit provides a proven design to evaluate the performance of the MAX17692B IC. This fully assembled and tested circuit is implemented using the No-Opto flyback converter with an integrated 76V nMOSFET available.
Compact design with high switching frequency 87% peak efficiency VCC overdrive to improve efficiency Minimum number of external components
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
Attribute
Value
Power Management Function
Flyback Converter
For Use With
0.65A Power Supply, 3.25W Resistive Load, Digital Multimeter
