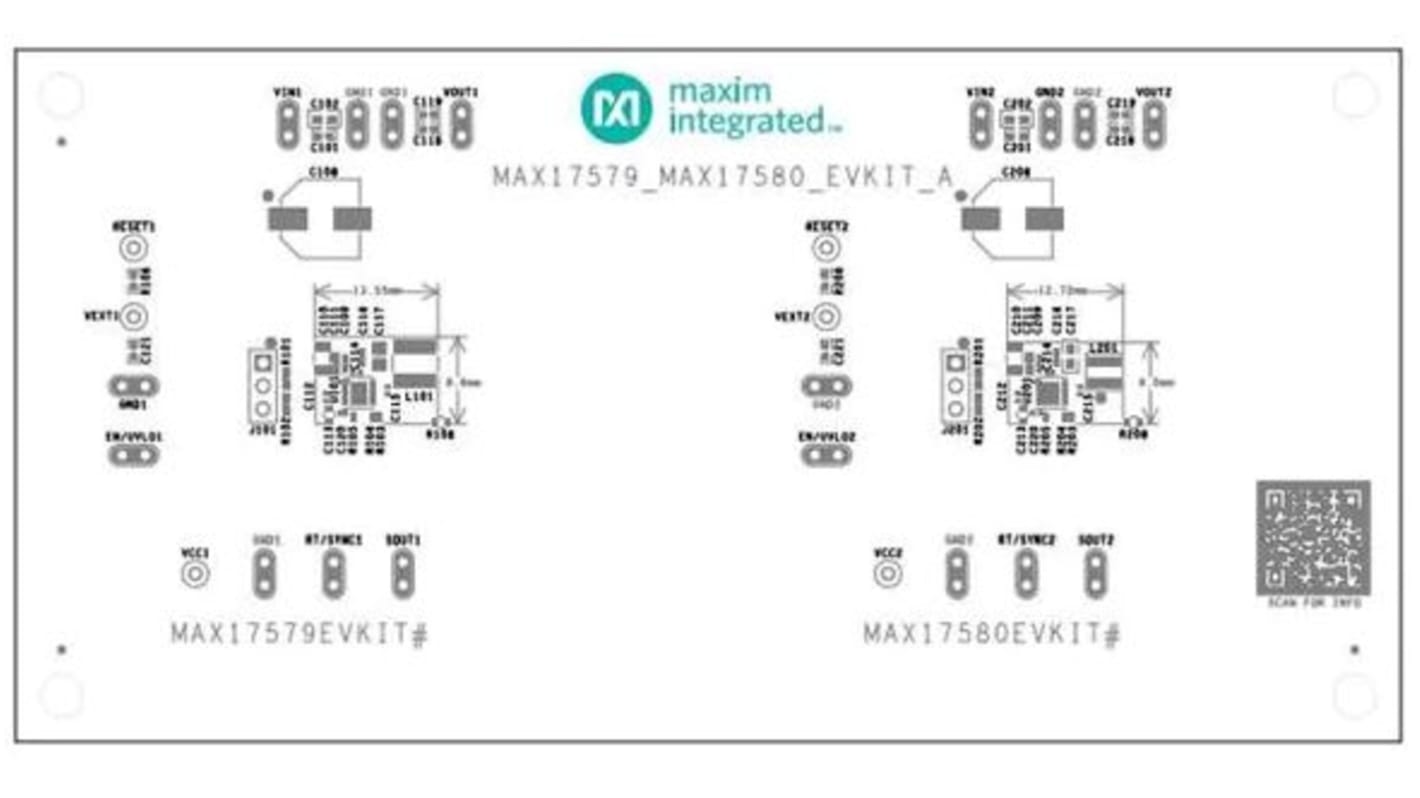

Maxim Integrated MAX17579EVKIT DC-DC Converter for MAX17580 for MAX17579 and MAX17580
- RS庫存編號:
- 223-6110
- 製造零件編號:
- MAX17580EVKIT#
- 製造商:
- Maxim Integrated
查看此類別
- RS庫存編號:
- 223-6110
- 製造零件編號:
- MAX17580EVKIT#
- 製造商:
- Maxim Integrated
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
The Maxim Integrated MAX17580EVKIT# evaluation kits (EV kits) provide a proven design to evaluate the MAX17579 and MAX17580 high-efficiency, high-voltage, inverting, Himalaya synchronous DC-DC converters. The devices generate output voltages (VOUT) from -0.9V to -36V and can deliver up to 300mA of load current from a wide 4.5V to 60VVOUT input voltage range.
Enable/UVLO input, resistor programmable UVLO threshold
Adjustable soft-start time
RESET output with a pull-up resistor to an external supply
System ground interfaced EN/UVLO and RESET pins
Overcurrent and Overtemperature protection
Proven PCB layout
Fully assembled and tested
Complies with CISPR 32 (EN55032) Class B conducted and radiated emissions
Adjustable soft-start time
RESET output with a pull-up resistor to an external supply
System ground interfaced EN/UVLO and RESET pins
Overcurrent and Overtemperature protection
Proven PCB layout
Fully assembled and tested
Complies with CISPR 32 (EN55032) Class B conducted and radiated emissions
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
| Attribute | Value |
| Power Management Function | DC-DC Converter |
| For Use With | MAX17579 and MAX17580 |
| Kit Classification | Evaluation Kit |
| Featured Device | MAX17580 |
| Kit Name | MAX17579EVKIT |
