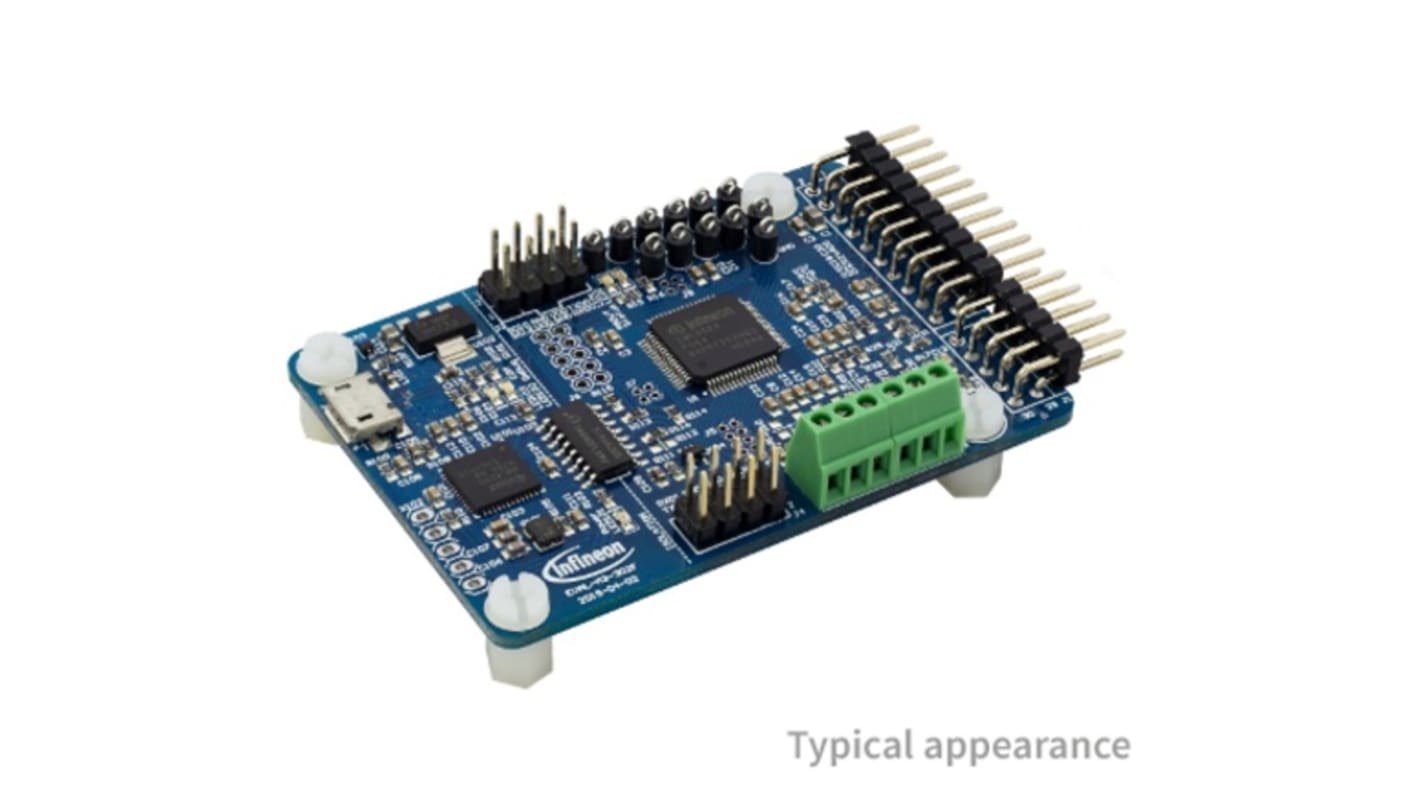

Infineon EVAL-M3-302F 3-Phase Inverter for IMC302A-F064 iMOTION™ Motor Control IC for iMOTION™ MADK Inverter Boards

The Infineon Control Board for iMOTION™ modular application design kit (MADK) platform which is powered by IMC302A-F064 iMOTION™ motor control IC featuring advanced motor control engine (MCE), that enables state-of-the-art sensorless field oriented control (FOC) combined with the active power factor correction (PFC) control, without need for any coding. IMC302A-F064 is a part of the iMOTION™ IMC300 series, which combines the well established iMOTION™ motor control IC platform with an additional Arm® Cortex® M0 based microcontroller.

Galvanically isolated on-board-interface to MCE and MCU
Additional MCU based on Arm® Cortex® M0 core
Integrated protection features
Boost or totem pole active PFC control
Sensorless or hall based operation
Single-shunt or leg-shunt current measurement
Field-proven advanced motion control engine (MCE)
