Silicon Labs, ISOdriver Isolated Gate Driver Evaluation Board, SI8239x - Si8239xISO-KIT

  • RS庫存編號 905-3157
  • 製造零件編號 Si8239xISO-KIT
  • 製造商 Silicon Labs
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): US
產品詳細資訊

Si8239x Digitally Isolated Driver Evaluation Kit, Silicon Labs

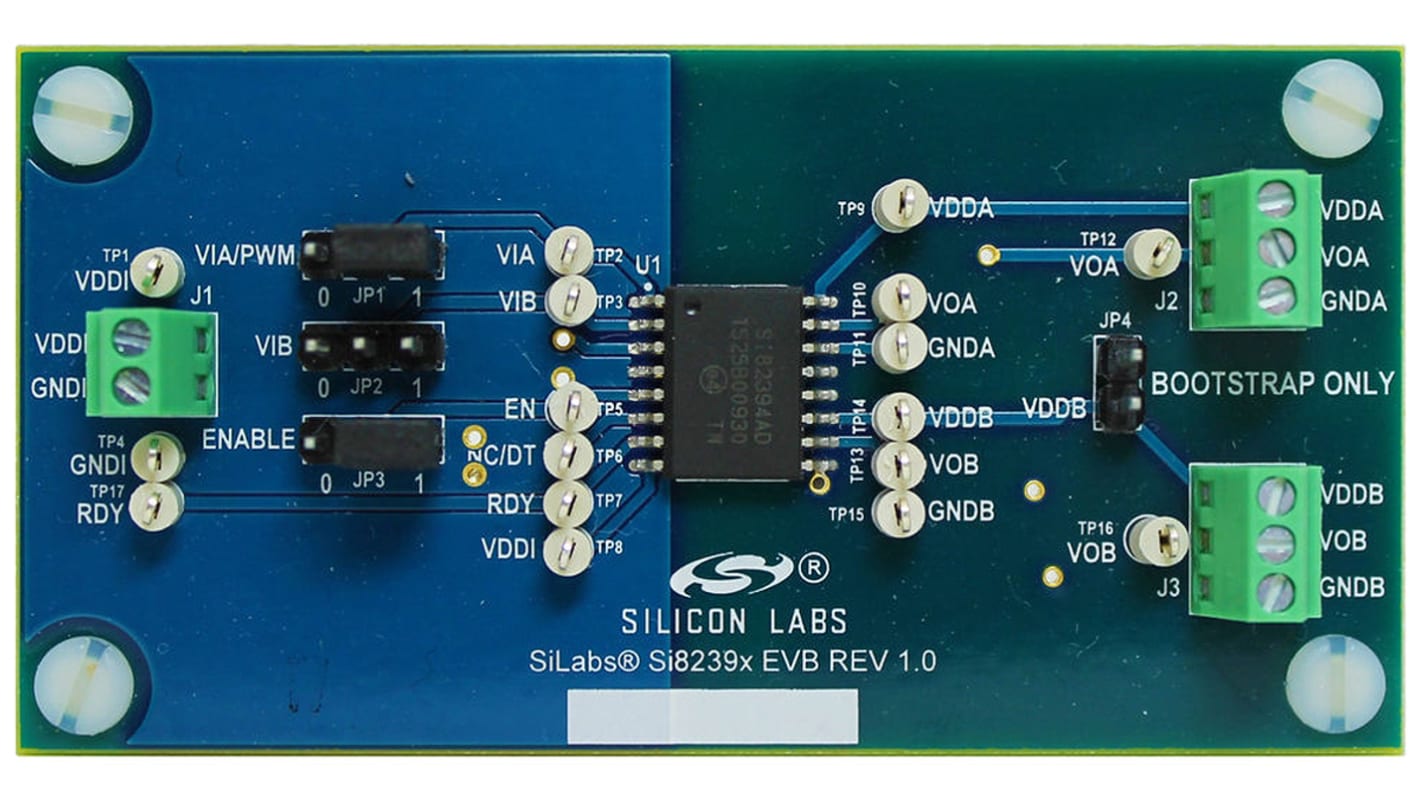

Evaluate the Si8239x family of digitally isolated drivers with the Silicon Labs Si8239xISO-KIT. On board, screw terminals enable quick evaluation of the key parameters and test points on each pin provide a method to connect it directly to your design. Jumpers are also available to manually set the Si8294 and even replace the it with a dual input version.

The Silicon Labs Si8239x family of isolated gate drivers are ideal for driving power switches used in a wide variety of power supply, inverter, and motor control applications. They offer longer service life and higher reliability when compared to opto-coupled gate drivers. The Si8239x isolated gate drivers support up to 5 kVRMS withstand voltage in compliance with the UL1577 and VDE0884 standards.

Supplied with

- Si8239x Evaluation Board
- Si82394AD-IS (RS 905-4481) - PWM input high side/low side driver

Isolated Power Drivers

A range of Isolated Drivers for use in applications employing IGBT or MOSFET power output devices

規格
Attribute Value
Kit Classification Evaluation Board
Featured Device SI8239x
Kit Name ISOdriver
7 現貨庫存,可於3工作日發貨。
單價 個
原價 HK$222.73
HK$ 196.30
(不含稅)
單位
Per unit
1 +
HK$196.30
