- RS庫存編號:
- 175-2109
- 製造零件編號:
- 471-021
- 製造商:
- Digilent
查看所有Processor Development Tools
- RS庫存編號:
- 175-2109
- 製造零件編號:
- 471-021
- 製造商:
- Digilent
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- TW
產品詳細資訊
Digilent Programmable Logic Development Kits

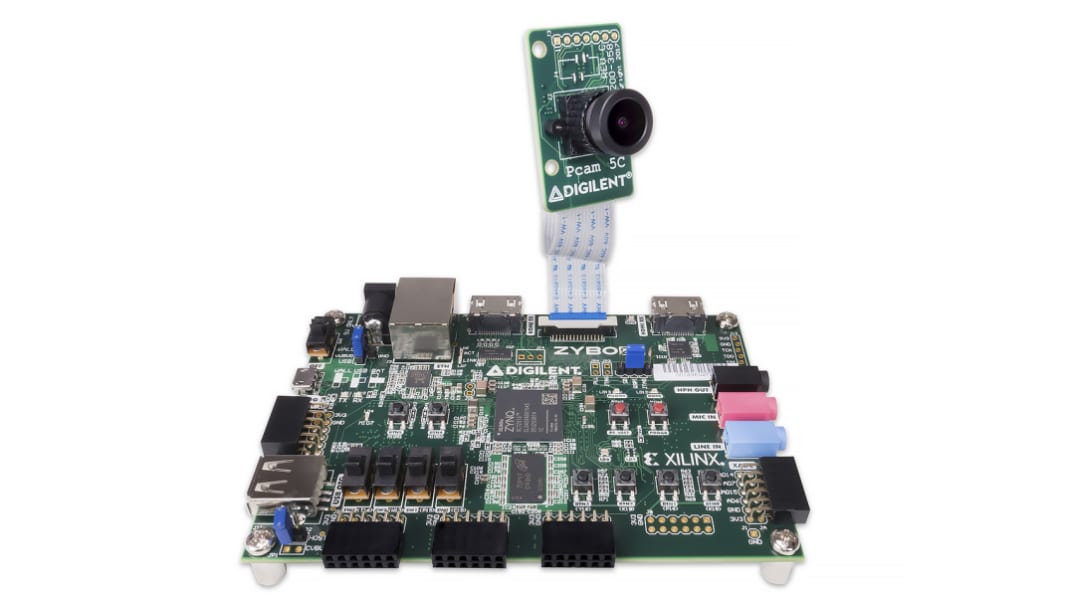

The Digilent embedded vision bundle makes a valuable tool for anyone looking to develop their own embedded vision products and applications or to learn more about embedded vision concepts. The bundle includes Zybo Z7-20 Zynq-7000 ARM/FPGA SoC development board, Pcam 5C 5-megapixel colour camera module (data is transferred using the Omni vision OV5640 image sensor's native MIPI CSI-2 interface, resulting in low latency) and 15-pin flat-flexible cable. The ZYBO Z7 surrounds the Zynq with a rich set of multimedia and connectivity peripherals to create a formidable single-board computer, even before considering the flexibility and power added by the FPGA. The bundle comes with an SDSoC voucher.
Features and Benefits:
1GB DDR3L with the 32-bit bus at 1066MHz
16MB Quad-SPI flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64 compatible identifier
Audio codec with stereo headphone, stereo line-in and microphone jacks
DDR3L memory controller with 8 DMA channels and 4 high-performance AXI3 slave ports
Gigabit Ethernet PHY with USB 2.0 OTG PHY with host and device support
High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
It contents 6 push-buttons, 4 slide switches, 5 LEDs (1 processor connected) and 2 RGB LEDs
It has 667MHz dual-core Cortex-A9 processor
Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C
Pcam camera connector with MIPI CSI-2 support, HDMI sink port (input) with/without CEC and HDMI source port (output) with CEC
Powered from USB or any 5V external power source
Programmable from JTAG, Quad-SPI flash and microSD card
Programmable logic equivalent to Artix-7 FPGA
16MB Quad-SPI flash with factory programmed 128-bit random number and 48-bit globally unique EUI-48/64 compatible identifier
Audio codec with stereo headphone, stereo line-in and microphone jacks
DDR3L memory controller with 8 DMA channels and 4 high-performance AXI3 slave ports
Gigabit Ethernet PHY with USB 2.0 OTG PHY with host and device support
High-bandwidth peripheral controllers: 1G Ethernet, USB 2.0, SDIO
It contents 6 push-buttons, 4 slide switches, 5 LEDs (1 processor connected) and 2 RGB LEDs
It has 667MHz dual-core Cortex-A9 processor
Low-bandwidth peripheral controllers: SPI, UART, CAN, I2C
Pcam camera connector with MIPI CSI-2 support, HDMI sink port (input) with/without CEC and HDMI source port (output) with CEC
Powered from USB or any 5V external power source
Programmable from JTAG, Quad-SPI flash and microSD card
Programmable logic equivalent to Artix-7 FPGA
Applications:
Communicate with the board using standard COM port commands
Industrial use
SDSoC for embedded vision applications
Industrial use
SDSoC for embedded vision applications
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
規格
Attribute | Value |
Kit Name | Embedded Vision Bundle |
Kit Classification | Development Kit |
