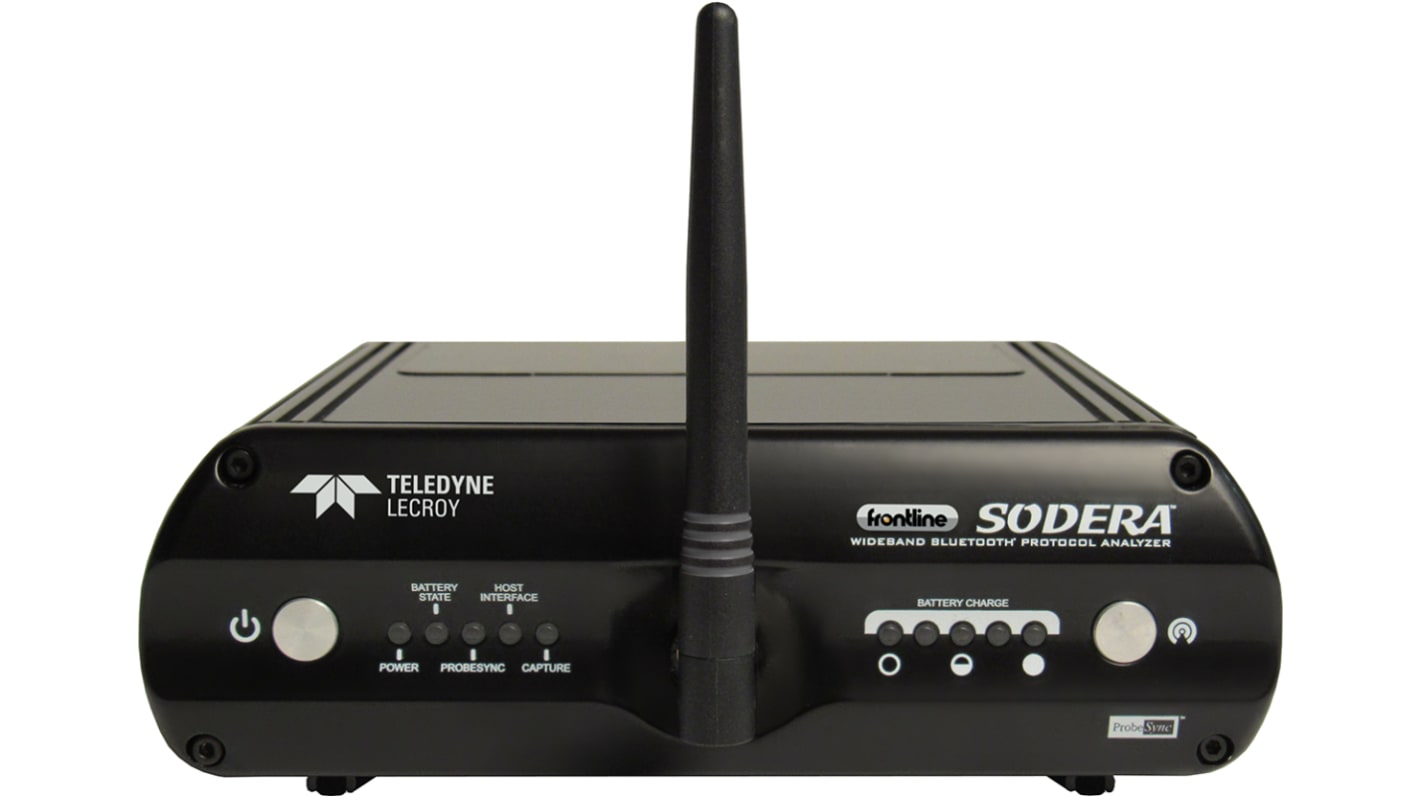

Teledyne LeCroy Protocol Analyser Bluetooth

  • RS庫存編號 195-4310
  • 製造零件編號 2014-10005-001
  • 製造商 Teledyne LeCroy
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): GB
產品詳細資訊

Supporting all profiles and protocols through Bluetooth 5.1 , Teledyne LeCroy's Frontline Sodera concurrently captures all over-the-air and HCI (with provided cables) Bluetooth packets (BR/EDR/LE) across all channels, including paging, inquiry, secure connections, secure simple pairing, and data exchange packets. Flexible licensing.

Capture ALL over-the-air and chip level
(HCI) Bluetooth packets
Bluetooth / Wi-Fi Coexistence with Frontline 802.11 Analyzer
Every Bluetooth channel captured concurrently for decryption and analysis at any time
Faster root cause analysis on protocol and audio issues with Bluetooth
Protocol Expert System and the included Bluetooth Audio Expert System
All profiles and protocols supported through Bluetooth 5.1
Intuitive analysis of multiple wireless devices and connections
User-replaceable battery and small footprint lets you work when and where you need to

規格
Attribute Value
Protocols Supported Bluetooth
Connectors USB 3.0
Dimensions 158.75 x 165.1 x 53.97mm
Height 53.97mm
Length 158.75mm
Maximum Operating Temperature +35°C
Minimum Operating Temperature +5°C
Width 165.1mm
當前暫無庫存,可於2020/12/28發貨,4 工作日送達。
單價 個
HK$ 207,916.80
(不含稅)
單位
Per unit
1 +
HK$207,916.80
