Teledyne LeCroy Protocol Analyser USB 2.0

  • RS庫存編號 195-4313
  • 製造零件編號 USB-TMSP2-M03-X
  • 製造商 Teledyne LeCroy
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): US
產品詳細資訊

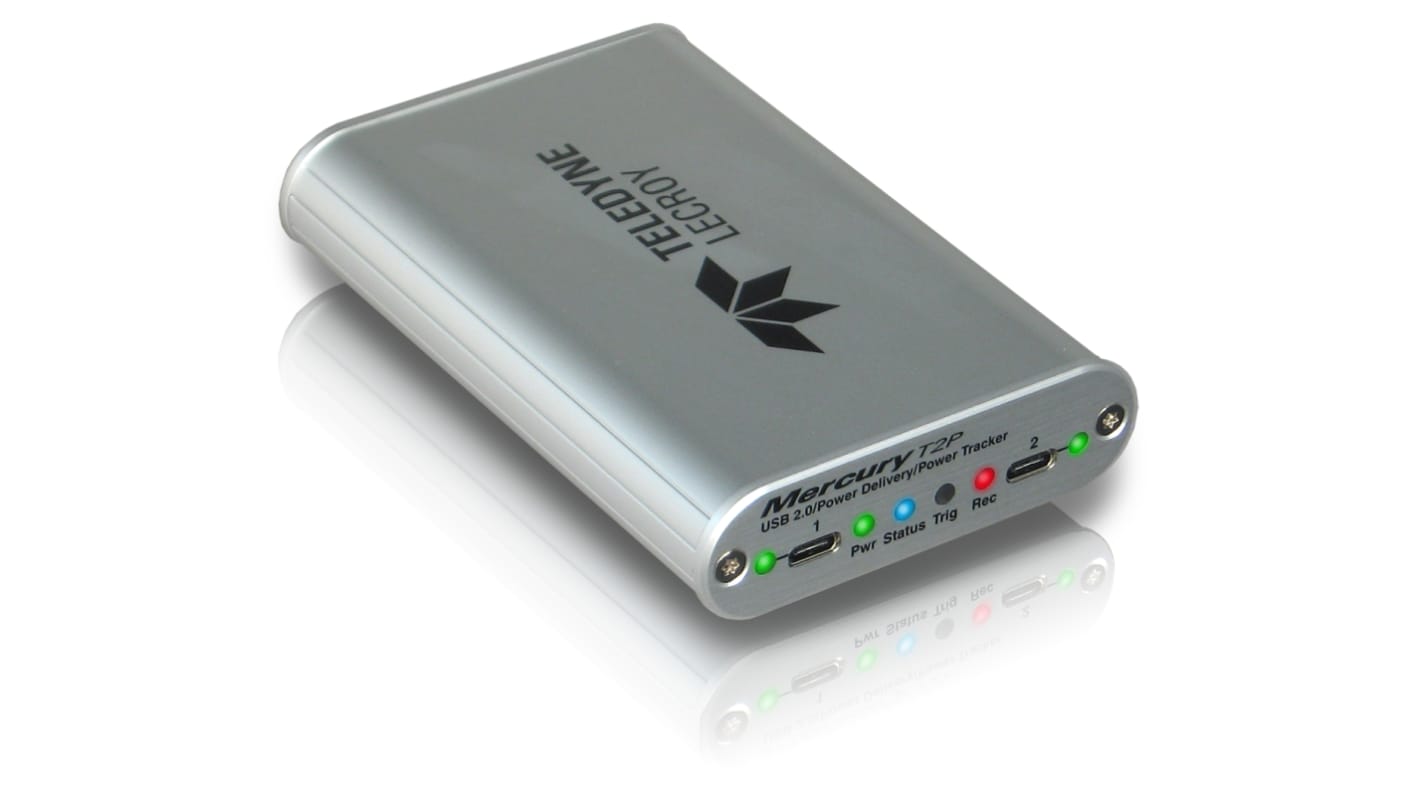

The Teledyne LeCroy Mercury T2C and T2P add USB Type-C and Power Delivery 3.0 support to the industry’s smallest and most affordable hardware-based USB 2.0 protocol analyzers. The Mercury combines the de-facto standard CATC Trace™ display, USB class decoding and Power Delivery 3.0 support in an analyzer that fits in a shirt pocket.

Supports USB Power Delivery 2.0 & 3.0 – Captures and decodes all Configuration Channel (CC) events
CATC Trace Analysis Software - Faster interpretation and debug of USB traffic
Portable and Convenient - Bus Powered analyzer works with any Windows-based PC
AutoDetect USB 2.0 Speeds - Automatically detects low, full, and high-speed connections
Power Tracker™ - Graphical view of VBUS and CC voltages synchronized to PD protocol messages
Up to 512 MByte Recording Capacity – Extend capture windows further with real-time filtering and data truncation
Spool-to-Disk Mode - Record for hours or even days with spool-to-disk capture
Non-intrusive High Impedance Probe - Preserves real-world signal and timing conditions for devices-under-test
Advanced Triggering - Isolates important traffic, specific errors or data patterns
Extensive Decodes - Mass Storage, Bluetooth HCI, Hub, PTP/Still Image, Printer, Human Interface Devices (HID), Audio and Communication Device Class (CDC)
Hardware Filtering - Automatically exclude non-essential and redundant packets from the trace
Intelligent Reporting - Quickly identify and track error rates, abnormal bus or timing conditions
Sophisticated Viewing – Provides complete Packet, Transaction and Transfer layer views of USB 2.0 and PD protocol

規格
Attribute Value
Protocols Supported USB 2.0
Connectors USB 3.0
Memory Capacity 512MB
Dimensions 80 x 123 x 24mm
Height 24mm
Length 80mm
Maximum Operating Temperature +55°C
Minimum Operating Temperature 0°C
Width 123mm
1 現貨庫存,可於4工作日發貨。
單價 個
HK$ 35,660.31
(不含稅)
單位
Per unit
1 +
HK$35,660.31
