製造零件編號

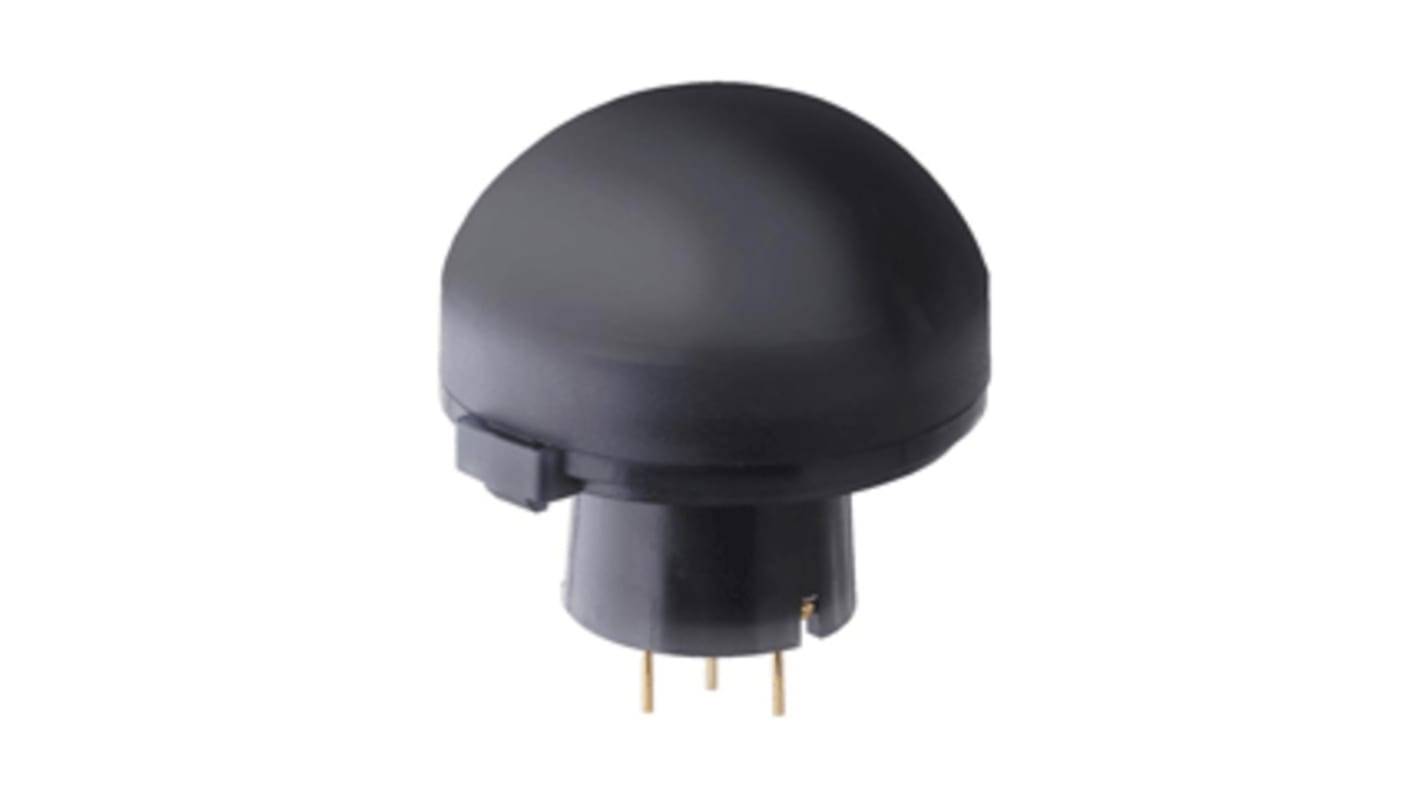

EKMB1303112K Panasonic, EKMB1 PIR Sensor, 12m 2.3 V to 4 V 3-Pin TO-5

RS庫存編號:: 161-2237
製造零件編號:: EKMB1303112K
製造商:: Panasonic

EKMB1303112K Panasonic, EKMB1 PIR Sensor, 12m 2.3 V to 4 V 3-Pin TO-5

可享批量折扣

小計（1 件）*

HK$175.80

訂單超過 HK$250.00 免費送貨

有庫存

94 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 12	HK$175.80
13 - 24	HK$172.00
25 +	HK$168.20

* 參考價格

RS庫存編號:: 161-2237
製造零件編號:: EKMB1303112K
製造商:: Panasonic

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Panasonic
	Sensor Type	PIR Sensor
	Maximum Output Current	100µA
	Sensing Distance	12m
	Switching Mode	Digital
	Output Type	Digital
	Mounting Type	Through Hole
	Package Type	TO-5
	Pin Count	3
	Maximum Supply Current	6 μA
	Dimensions	22 x 20.2mm
	Height	20.2mm
	Minimum Operating Supply Voltage	2.3 V
	Minimum Operating Temperature	-20 °C
	Maximum Operating Supply Voltage	4 V
	Series	EKMB1
	Width	22mm
	Maximum Operating Temperature	60 °C

	選取全部
	品牌 Panasonic
	Sensor Type PIR Sensor
	Maximum Output Current 100µA
	Sensing Distance 12m
	Switching Mode Digital
	Output Type Digital
	Mounting Type Through Hole
	Package Type TO-5
	Pin Count 3
	Maximum Supply Current 6 μA
	Dimensions 22 x 20.2mm
	Height 20.2mm
	Minimum Operating Supply Voltage 2.3 V
	Minimum Operating Temperature -20 °C
	Maximum Operating Supply Voltage 4 V
	Series EKMB1
	Width 22mm
	Maximum Operating Temperature 60 °C

Datasheet

COO (Country of Origin):: JP

Low current consumption for battery-driven applications.
A special differential input circuit design is introduced for the EKMB 6μA type for applications where a high noise resistance is required (up to GHz range)
Line up with Horizontally wide detection type

EKMB1303112K Panasonic, EKMB1 PIR Sensor, 12m 2.3 V to 4 V 3-Pin TO-5
