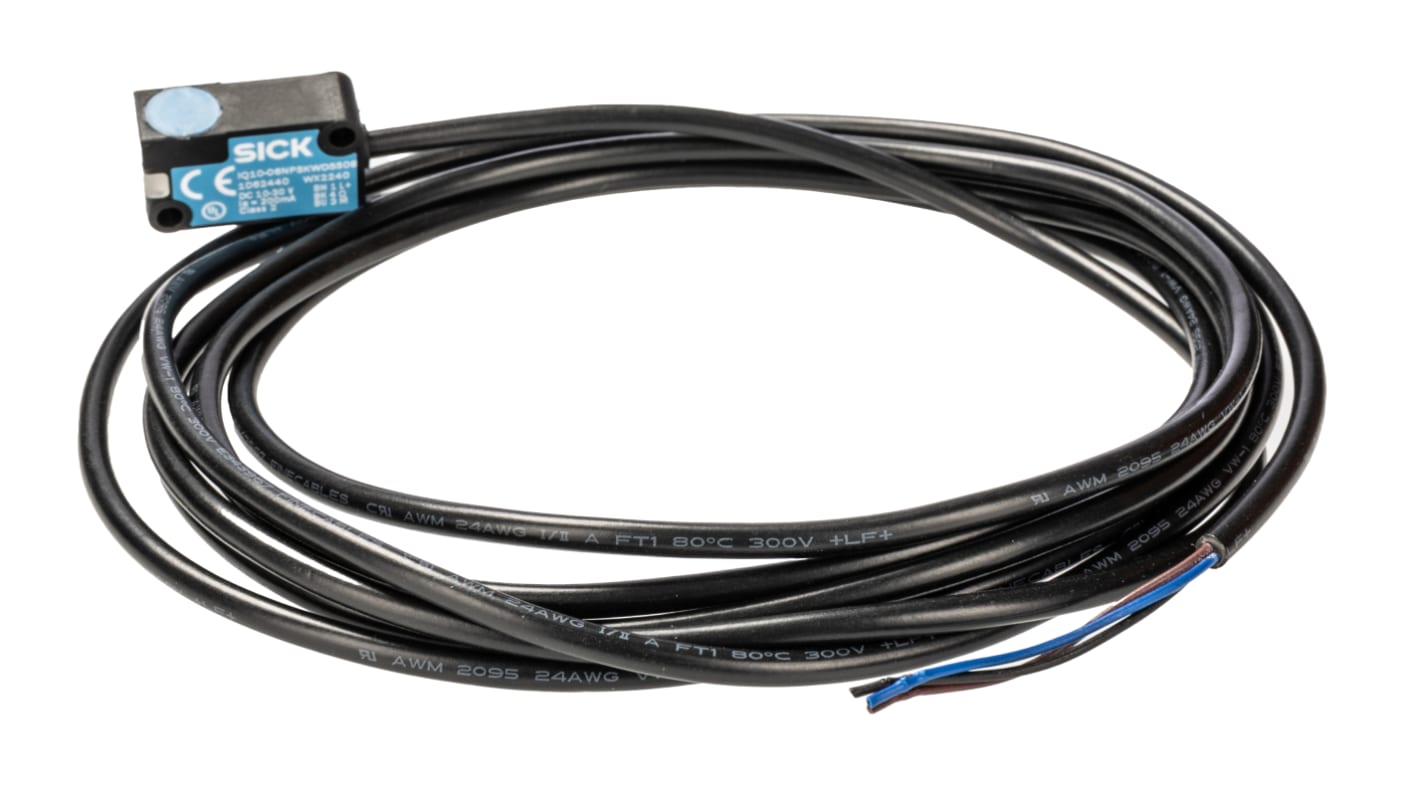

SICK Inductive Rectangular Proximity Sensor, 6 mm Detection, PNP NO, 10 → 30 V dc

RS庫存編號:: 266-8637
製造零件編號:: IQ10-06NPSKWDSS08
製造商:: SICK

SICK Inductive Rectangular Proximity Sensor, 6 mm Detection, PNP NO, 10 → 30 V dc

小計（1 件）*

HK$619.40

订单金额满 HK$250.00 享免费送货服务

有库存

另外 1 件在 2025年8月14日发货

**需要更多产品？**输入您需要的数量，点击“查看送货日期”，查看库存和送货信息。

單位	每單位
1 +	HK$619.40

* 參考價格

比較

RS庫存編號:: 266-8637
製造零件編號:: IQ10-06NPSKWDSS08
製造商:: SICK

Overview

Compact design with best-in-class performance. The IQB sensors offer extended sensing ranges of up to 8 mm and state-of-the-art SICK-ASIC technology. Its proven, reliable design with 270° status display is also ideal for more demanding applications.

Extremely rugged VISTAL® housing, innovative hot melt moulding and an IP 68 enclosure rating make the sensors of the IQB product family the first choice for a wide range of applications and ensure the highest possible levels of process reliability and satisfaction.

At a glance

t a glance
Types: 10 mm x 16 mm x 28 mm or 12 mm x 26 mm x 40 mm
Extended sensing ranges: 2 mm to 8 mm
Electrical configuration: DC 3-/4-wire
Enclosure rating: IP 68
Temperature range: –25 °C to +75 °C
Tough VISTAL™ housing
Small version with 270° output state display

Your Benefit

Best mechanical and electronic stability for extra-long service life
Highest levels of process reliability for your application
Long service life that reduce maintenance costs thanks to SICK's ASIC technology and rugged VISTAL® housing
Precise detection and high sensor accuracy enable fast handling and assembly processes
Space-saving integration in every application
High resistance to shock and vibrations reduces maintenance costs
Quick viewing of sensor status from any position in the room reduces maintenance costs
Safe, fast mounting without any need for readjustment saves installation time and maintenance costs

Applications

Presence detection of the press tool
Positioning the car body in the reworking station
Rack identification
Presence detection of the press tool
Detecting work piece carriers and checking presence of parts
Reliable track-width adjustment for PCB transport systems
Rotational position of turntable
Monitoring the park position
End position monitoring
Door leaf detection on elevator doors
Zone detection in elevator shafts
Position determination on a revolving door
Door leaf detection on automatic sliding doors
Speed monitoring in escalators with inductive proximity sensors

Note

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	SICK
	Sensor Technology	Inductive
	Body Style	Rectangular
	Detection Range	6 mm
	Output Function	NO
	Digital Switching Output Type	PNP
	Cable Length	2.5m
	Connection Type	Pre-Cabled
	Supply Voltage	10 → 30 V dc
	Length	28mm
	IP Rating	IP68
	Mounting Type	Non-Flush
	Width	10.3mm
	Housing Material	Plastic
	Maximum DC Voltage	30V
	Minimum Operating Temperature	-25°C
	Maximum Switching Frequency	2kHz
	Maximum Operating Temperature	+75°C
	Standards Met	CE, EAC
	Series	IQB
	Reverse Polarity Protection	Yes
	Short Circuit Overload Protection	Yes
	Depth	28mm
	Switching Current	200 mA
	Switching Frequency	2 kHz

	選取全部
	品牌 SICK
	Sensor Technology Inductive
	Body Style Rectangular
	Detection Range 6 mm
	Output Function NO
	Digital Switching Output Type PNP
	Cable Length 2.5m
	Connection Type Pre-Cabled
	Supply Voltage 10 → 30 V dc
	Length 28mm
	IP Rating IP68
	Mounting Type Non-Flush
	Width 10.3mm
	Housing Material Plastic
	Maximum DC Voltage 30V
	Minimum Operating Temperature -25°C
	Maximum Switching Frequency 2kHz
	Maximum Operating Temperature +75°C
	Standards Met CE, EAC
	Series IQB
	Reverse Polarity Protection Yes
	Short Circuit Overload Protection Yes
	Depth 28mm
	Switching Current 200 mA
	Switching Frequency 2 kHz
