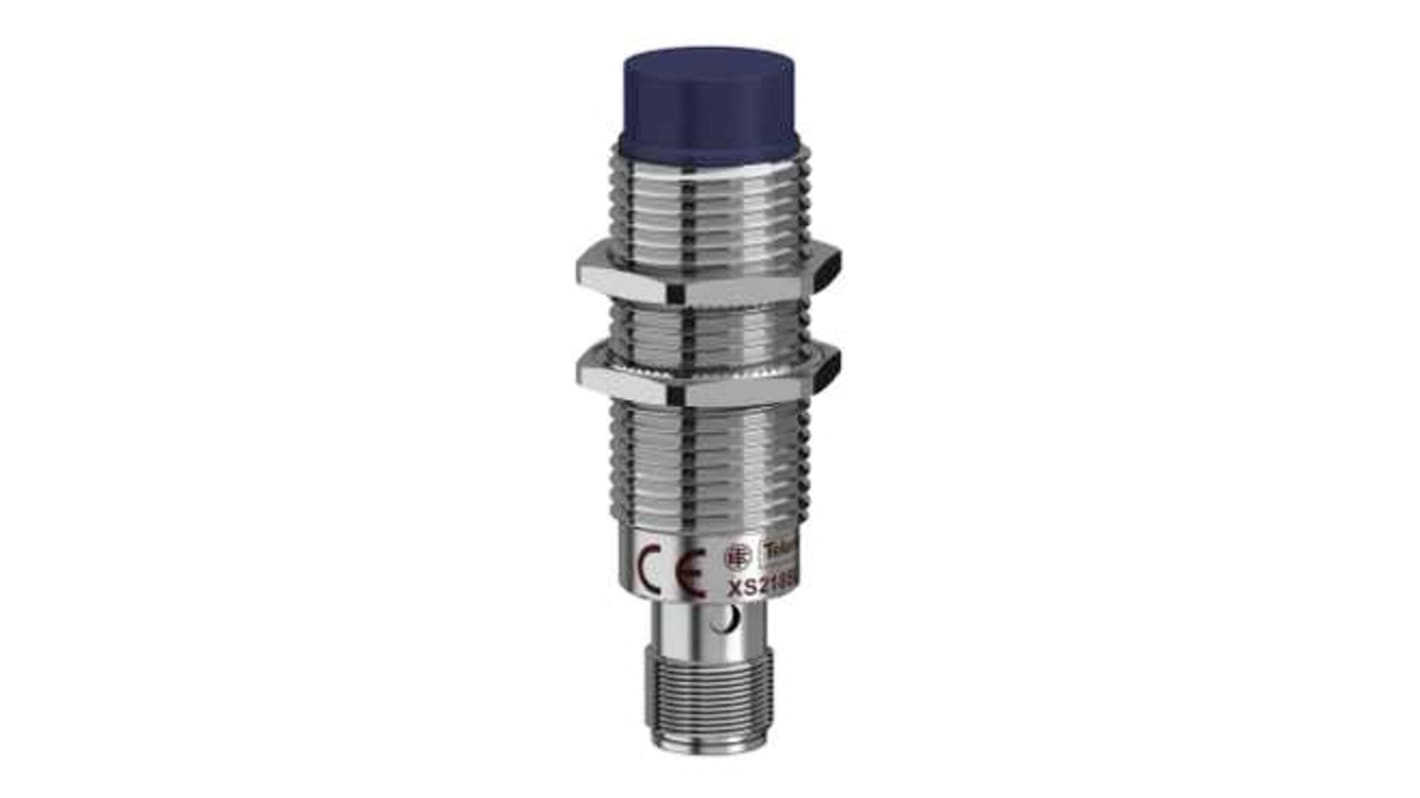

Telemecanique Sensors Inductive Barrel-Style Proximity Sensor, M12 x 1, 2.5 → 4 (Sd) mm, 4 (Sn) mm Detection,
- RS庫存編號:
- 752-2071
- 製造零件編號:
- XS2M12KP340
- 製造商:
- Telemecanique Sensors
可供預購。
單價 个
HK$953.90
單位 | 每單位 |
|---|---|
| 1 + | HK$953.90 |
- RS庫存編號:
- 752-2071
- 製造零件編號:
- XS2M12KP340
- 製造商:
- Telemecanique Sensors
產品概覽和技術數據資料表
法例與合規
不適用
- COO (Country of Origin):
- FR
產品詳細資訊
XS Inductive Proximity Sensors
Telemecanique Sensors OsiSense XS series inductive proximity sensors are designed for use in standard industrial applications where metal presence detection is required.
Features and Benefits
LED indication
Reverse polarity protection
Overload and short circuit protection
Fast installation and setting-up.
Small size facilitates mounting in locations with restricted access.
How do they work and where can I use them?
Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing you and equipment that metal has been sensed. Inductive proximity sensors are suitable for use most industries. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.
Applications.
- Railway, Mobile equipment, Lifts and escalators, Hoisting.
- Material handling, conveying, logistics.
- Material working, machine tools, Packaging.
- Food and beverage, Pharmaceutical, Robotics.
規格
Attribute | Value |
|---|---|
| Sensor Technology | Inductive |
| Body Style | Barrel |
| Thread Size | M12 x 1 |
| Output Type | PNP/NPN |
| Detection Range | 2.5 → 4 (Sd) mm, 4 (Sn) mm |
| Terminal Type | Pre-Wired |
| Supply Voltage | 12 → 24 V dc |
| IP Rating | IP68 |
| Length | 50mm |
| Maximum DC Voltage | 24V |
| Mounting Type | Non Flush |
| Switching Current | 200 mA |
| Maximum Operating Temperature | +70°C |
| Housing Material | Nickel Plated Brass |
| Maximum Switching Frequency | 5kHz |
| Shielding | Shielded |
| Minimum Operating Temperature | -25°C |
| Reverse Polarity Protection | Yes |
| Short Circuit Overload Protection | Yes |
