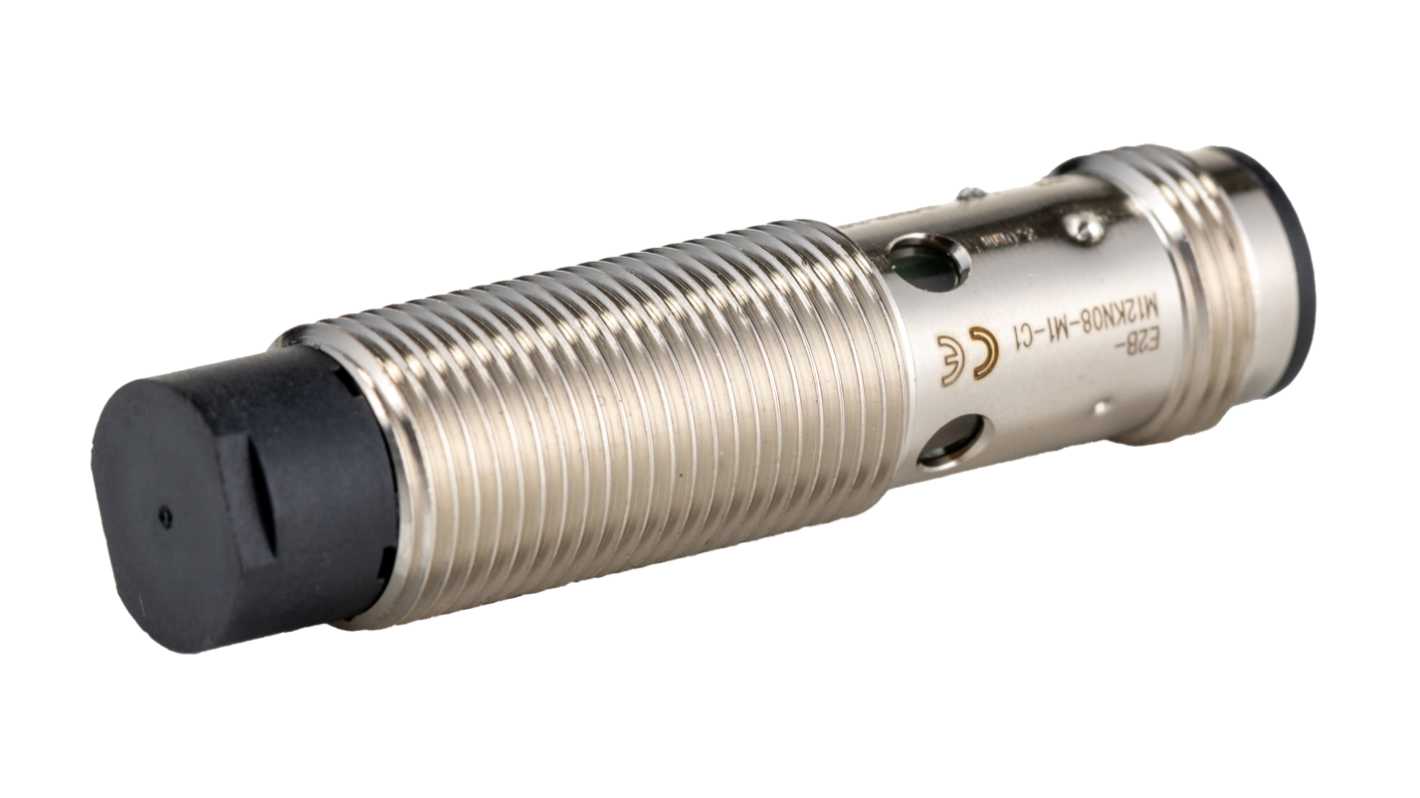

Omron Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, NPN NO, 10 → 30 V dc

RS庫存編號:: 805-2526
製造零件編號:: E2B-M12KN08-M1-C1
製造商:: Omron

Omron Inductive Threaded Barrel Proximity Sensor, M12, 8 mm Detection, NPN NO, 10 → 30 V dc

小計（1 件）*

HK$200.60

訂單超過 HK$250.00 免費送貨

有庫存

8 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$200.60

* 參考價格

RS庫存編號:: 805-2526
製造零件編號:: E2B-M12KN08-M1-C1
製造商:: Omron

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Omron
	Thread Size	M12
	Sensor Technology	Inductive
	Detection Range	8 mm
	Body Style	Threaded Barrel
	Digital Switching Output Type	NPN
	Output Function	NO
	Connection Type	M12
	Supply Voltage	10 → 30 V dc
	Length	51mm
	IP Rating	IP67
	Mounting Type	Non-Flush
	Housing Material	Brass
	Maximum DC Voltage	30V
	Minimum Operating Temperature	-25°C
	Maximum Switching Frequency	800Hz
	Short Circuit Overload Protection	Yes
	Depth	10.5mm
	Maximum Operating Temperature	+70°C
	Reverse Polarity Protection	Yes
	Switching Frequency	800 Hz
	Series	E2B
	Switching Current	200 mA
	Shielding	Unshielded

	選取全部
	品牌 Omron
	Thread Size M12
	Sensor Technology Inductive
	Detection Range 8 mm
	Body Style Threaded Barrel
	Digital Switching Output Type NPN
	Output Function NO
	Connection Type M12
	Supply Voltage 10 → 30 V dc
	Length 51mm
	IP Rating IP67
	Mounting Type Non-Flush
	Housing Material Brass
	Maximum DC Voltage 30V
	Minimum Operating Temperature -25°C
	Maximum Switching Frequency 800Hz
	Short Circuit Overload Protection Yes
	Depth 10.5mm
	Maximum Operating Temperature +70°C
	Reverse Polarity Protection Yes
	Switching Frequency 800 Hz
	Series E2B
	Switching Current 200 mA
	Shielding Unshielded

登入下載 CAD 模型

Omron E2B Series Proximity Sensor, 8mm Detection Range, Threaded Barrel Body Style - E2B-M12KN08-M1-C1

This inductive proximity sensor is designed to provide precise detection capabilities in various industrial applications. With its M12 threaded barrel design, it offers an 8mm detection range, making it suitable for compact installations. The sensor operates within a supply voltage of 10 to 30 V DC and features a robust brass housing, ensuring durability in challenging environments.

Features & Benefits

• Inductive technology allows for non-contact detection of metallic objects
• NPN output function provides reliable signal transmission
• Short circuit overload protection enhances operational safety
• Operating temperature range from -25°C to +70°C for versatility

Applications

• Used in automated machinery for part detection
• Effective in assembly lines for quality control
• Suitable for packaging equipment to detect lids or containers
• Used in robotics for object recognition in conveyor systems

What are the benefits of the NPN output function?

The NPN output function enables the sensor to provide a low signal when detecting an object, facilitating direct compatibility with various control systems without additional components, streamlining integration.

How does the IP67 rating affect performance?

An IP67 rating ensures that the sensor is fully dust-tight and can withstand immersion in water up to 1 metre for 30 minutes, making it reliable in harsh conditions and suitable for outdoor use.

What mounting options are available for installation?

The non-flush mounting design allows for easy installation in tight spaces, ensuring that the sensor can be securely fixed to various surfaces without the need for complex modifications.

Note

See typically (RS stock no. 7788757) for connectors compatible with the plug-in sensors
