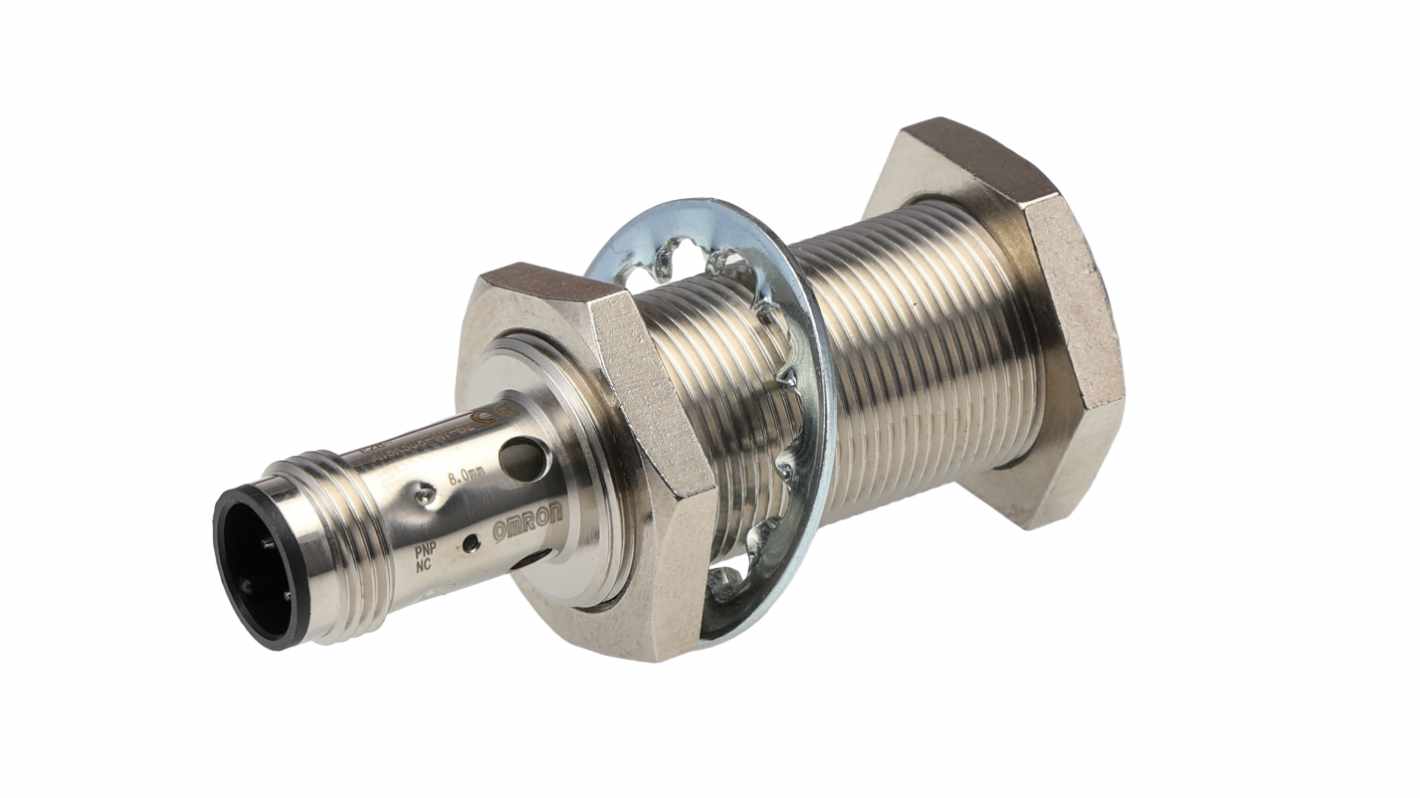

Omron Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 12 → 24 V dc

RS庫存編號:: 805-4715
製造零件編號:: E2B-M18KS08-M1-B2
製造商:: Omron

Omron Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 12 → 24 V dc

小計（1 件）*

HK$249.60

订单金额满 HK$250.00 享免费送货服务

有库存

46 件将从其他地点发货
另外 29 件在 2025年9月25日发货
另外 999,999,924 件在 2026年1月06日发货

**需要更多产品？**输入您需要的数量，点击“查看送货日期”，查看库存和送货信息。

單位	每單位
1 +	HK$249.60

* 參考價格

比較

RS庫存編號:: 805-4715
製造零件編號:: E2B-M18KS08-M1-B2
製造商:: Omron

E2B Brass Standard Length

The E2B range of brass standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

Features and benefits

IP67 rated for protection in wet environments

360 ° visible LED for operation control

Pre-wired and connector variations available

Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Standard temperature range –25°C to 70°C

Omron E2B Series Proximity Sensor, 8mm Detection Range, Threaded Barrel Body Style - E2B-M18KS08-M1-B2

This proximity sensor is an inductive device designed for reliable detection in various industrial applications. Featuring a robust threaded barrel design, the sensor has a detection range of 8mm, enhancing its functionality in automation processes. With dimensions that include a length of 59mm and a diameter of 0.85mm, it ensures a compact fit in tight spaces.

Features & Benefits

• Inductive technology allows for non-contact detection
• Threaded barrel design simplifies installation in various locations
• IP67 rating provides water and dust protection
• PNP output enables integration into diverse control systems
• Operational temperature range from -25 °C to +70 °C
• Reverse polarity and short circuit protection enhance durability

Applications

• Utilised in assembly line automation for object detection
• Suitable for packaging machines to sense object presence
• Employed in conveyor systems for automation performance monitoring
• Integrates seamlessly into lift systems for position sensing

What is the significance of the IP67 rating for operational environments?

The IP67 rating ensures the sensor is completely dust-tight and can withstand temporary immersion in water, making it suitable for use in harsh industrial environments.

How does the PNP output function benefit integration with control systems?

Using a PNP output enables the sensor to provide a positive signal, making it compatible with various industrial controllers and facilitating easy integration into existing systems.

What advantages does the quasi-flush mounting offer for installation?

Quasi-flush mounting allows for a streamlined installation while providing effective sensing capabilities, suitable for applications where space is limited.

What safety features are in place to protect against electrical faults?

The sensor includes reverse polarity protection and short circuit overload protection, which safeguard the device and connected systems from potential electrical damage.

Note

See typically (RS stock no. 7788757) for connectors compatible with the plug-in sensors

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Omron
	Thread Size	M18
	Sensor Technology	Inductive
	Detection Range	8 mm
	Body Style	Threaded Barrel
	Output Function	NC
	Digital Switching Output Type	PNP
	Connection Type	M12
	Supply Voltage	12 → 24 V dc
	Length	59mm
	IP Rating	IP67
	Mounting Type	Quasi-Flush
	Housing Material	Brass, Nickel Plated
	Maximum DC Voltage	30V
	Diameter	0.9 mm
	Minimum Operating Temperature	-25°C
	Reverse Polarity Protection	Yes
	Switching Frequency	500 Hz
	Series	E2B
	Switching Current	200 mA
	Maximum Operating Temperature	+70°C
	Maximum Switching Frequency	500Hz
	Shielding	Shielded
	Short Circuit Overload Protection	Yes

	選取全部
	品牌 Omron
	Thread Size M18
	Sensor Technology Inductive
	Detection Range 8 mm
	Body Style Threaded Barrel
	Output Function NC
	Digital Switching Output Type PNP
	Connection Type M12
	Supply Voltage 12 → 24 V dc
	Length 59mm
	IP Rating IP67
	Mounting Type Quasi-Flush
	Housing Material Brass, Nickel Plated
	Maximum DC Voltage 30V
	Diameter 0.9 mm
	Minimum Operating Temperature -25°C
	Reverse Polarity Protection Yes
	Switching Frequency 500 Hz
	Series E2B
	Switching Current 200 mA
	Maximum Operating Temperature +70°C
	Maximum Switching Frequency 500Hz
	Shielding Shielded
	Short Circuit Overload Protection Yes
