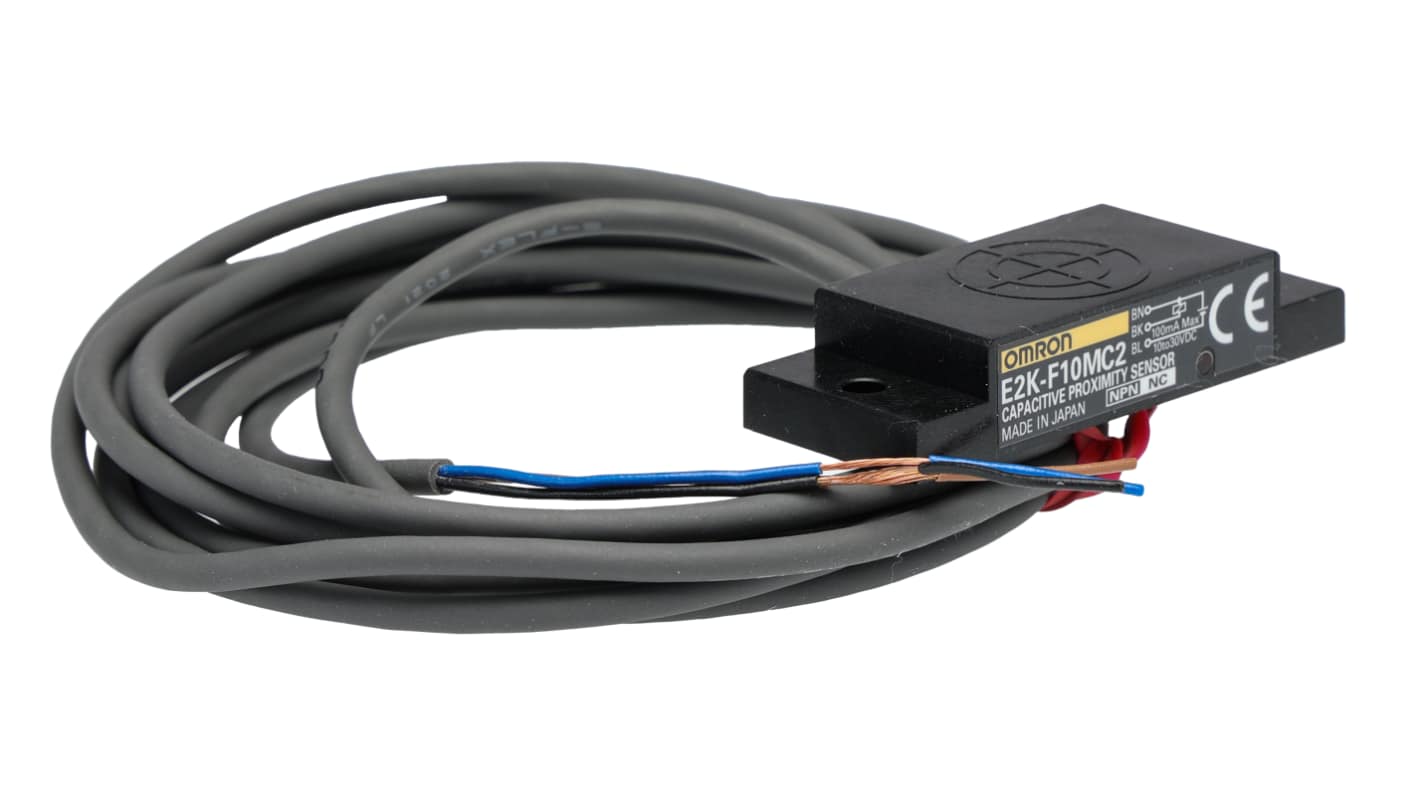

Omron Inductive Flat Proximity Sensor, 10 mm Detection, NPN NC, 12 → 24 V dc

RS庫存編號:: 808-6166
製造零件編號:: E2K-F10MC2
製造商:: Omron

Omron Inductive Flat Proximity Sensor, 10 mm Detection, NPN NC, 12 → 24 V dc

小計（1 件）*

HK$1,054.90

訂單超過 HK$250.00 免費送貨

有庫存

加上 13 件從 2025年12月15日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$1,054.90

* 參考價格

RS庫存編號:: 808-6166
製造零件編號:: E2K-F10MC2
製造商:: Omron

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Omron
	Sensor Technology	Inductive
	Body Style	Flat
	Detection Range	10 mm
	Digital Switching Output Type	NPN
	Output Function	NC
	Cable Length	5m
	Connection Type	Pre-Cabled
	Supply Voltage	12 → 24 V dc
	IP Rating	IP66
	Length	50mm
	Mounting Type	Non-Flush
	Housing Material	ABS
	Width	20mm
	Maximum DC Voltage	30V
	Minimum Operating Temperature	-10°C
	Reverse Polarity Protection	Yes
	Maximum Switching Frequency	100Hz
	Shielding	Unshielded
	Depth	10.1mm
	Switching Current	100 mA
	Series	E2K-F
	Switching Frequency	100 Hz
	Maximum Operating Temperature	+55°C

	選取全部
	品牌 Omron
	Sensor Technology Inductive
	Body Style Flat
	Detection Range 10 mm
	Digital Switching Output Type NPN
	Output Function NC
	Cable Length 5m
	Connection Type Pre-Cabled
	Supply Voltage 12 → 24 V dc
	IP Rating IP66
	Length 50mm
	Mounting Type Non-Flush
	Housing Material ABS
	Width 20mm
	Maximum DC Voltage 30V
	Minimum Operating Temperature -10°C
	Reverse Polarity Protection Yes
	Maximum Switching Frequency 100Hz
	Shielding Unshielded
	Depth 10.1mm
	Switching Current 100 mA
	Series E2K-F
	Switching Frequency 100 Hz
	Maximum Operating Temperature +55°C

COO (Country of Origin):: JP

Omron E2K-F Series Proximity Sensor, 10mm Detection Range, IP66 Protection Rating - E2K-F10MC2

This proximity sensor is a capacitive device designed for reliable detection within a 10mm range. Built with a slim profile of just 10mm in thickness, the sensor is highly suited for integration into tight spaces. It features a pre-cabled connection with a generous 5m cable length, ensuring ease of installation in industrial settings. Additionally, its robust ABS housing provides durability and protection, achieving an IP66 rating for resistance against dust and water.

Features & Benefits

• Flat design enables discreet installation in confined areas
• NPN output for easy compatibility with most control systems
• Reverse polarity protection prevents damage from incorrect wiring
• Unshielded construction simplifies installation without interference

Applications

• Used in assembly line automation tasks
• Ideal for sensor in packaging machinery
• Suitable for non-flush mounting in robotic systems
• Used in object detection in liquid and solid materials

How does the detection range influence usability in different environments?

The adjustable detection range from 4mm to 10mm allows the sensor to be fine-tuned according to specific applications, ensuring effective performance in diverse environments.

What environmental conditions can the device withstand?

It operates reliably within an ambient temperature range of -10°C to +55°C, making it functional in various industrial conditions without condensation or icing.

What materials can this sensor detect?

This sensor effectively detects both conductive and non-conductive materials, such as metals and plastics, broadening its application in various industries.

How does reverse polarity protection enhance the device's reliability?

By preventing damage if connected incorrectly, this feature ensures the sensor maintains operational integrity and reduces the risk of failures during installation.

What benefits does the IP66 rating provide in an industrial setting?

The IP66 rating ensures the sensor is dust-tight and protected against powerful water jets, enabling its use in harsh conditions and extending its operational lifespan.

Note

See typically (RS stock no. 7788757) for connectors compatible with the plug-in sensors
