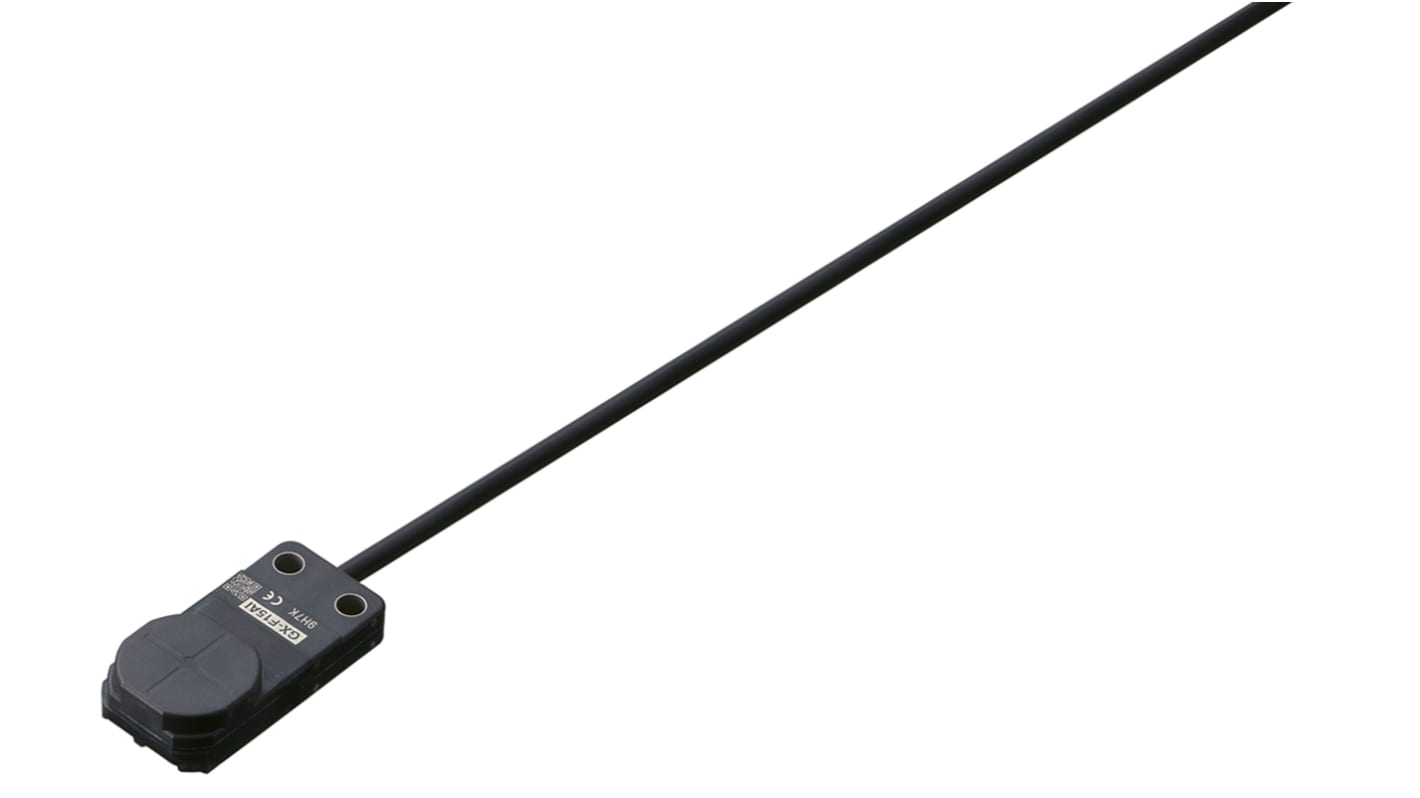

Panasonic Inductive Block-Style Proximity Sensor, 8 mm Detection, PNP Output, 12 → 24 V dc, IP68
- RS庫存編號:
- 815-6287
- 製造零件編號:
- GX-FL15B-P
- 製造商:
- Panasonic
暂时无法供应
我们不知道此物品是否会再来货，因为制造商正在逐步停产。
- RS庫存編號:
- 815-6287
- 製造零件編號:
- GX-FL15B-P
- 製造商:
- Panasonic
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Panasonic | |
| Sensor Technology | Inductive | |
| Body Style | Block | |
| Output Type | PNP | |
| Detection Range | 8 mm | |
| Terminal Type | Cable | |
| Supply Voltage | 12 → 24 V dc | |
| IP Rating | IP68 | |
| Length | 31.5mm | |
| Width | 15mm | |
| Depth | 8mm | |
| Maximum DC Voltage | 24V | |
| Mounting Type | Non-Flush | |
| Switching Current | 15 mA | |
| Maximum Switching Frequency | 150Hz | |
| Shielding | Shielded | |
| Housing Material | PBT, Polyester | |
| Maximum Operating Temperature | +70°C | |
| Reverse Polarity Protection | Yes | |
| Minimum Operating Temperature | -25°C | |
選取全部 | ||
|---|---|---|
品牌 Panasonic | ||
Sensor Technology Inductive | ||
Body Style Block | ||
Output Type PNP | ||
Detection Range 8 mm | ||
Terminal Type Cable | ||
Supply Voltage 12 → 24 V dc | ||
IP Rating IP68 | ||
Length 31.5mm | ||
Width 15mm | ||
Depth 8mm | ||
Maximum DC Voltage 24V | ||
Mounting Type Non-Flush | ||
Switching Current 15 mA | ||
Maximum Switching Frequency 150Hz | ||
Shielding Shielded | ||
Housing Material PBT, Polyester | ||
Maximum Operating Temperature +70°C | ||
Reverse Polarity Protection Yes | ||
Minimum Operating Temperature -25°C | ||
