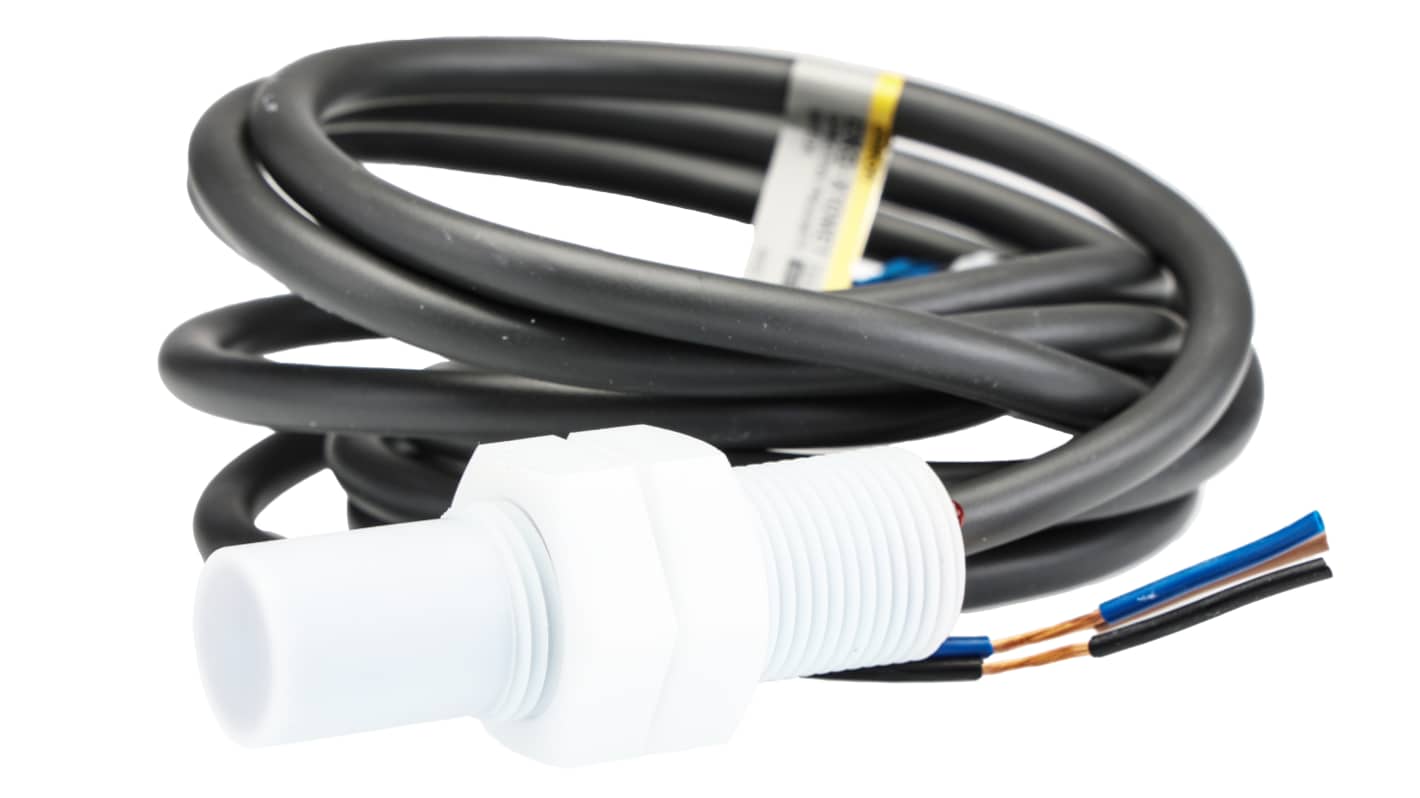

Omron Capacitive Threaded Barrel Proximity Sensor, M18, 10 mm Detection, NPN NO, 10 → 30 V dc

RS庫存編號:: 822-4500
製造零件編號:: E2KQ-X10ME1 2M
製造商:: Omron

Omron Capacitive Threaded Barrel Proximity Sensor, M18, 10 mm Detection, NPN NO, 10 → 30 V dc

小計（1 件）*

HK$2,604.80

訂單超過 HK$250.00 免費送貨

暫時缺貨

從 2026年2月16日發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 +	HK$2,604.80

* 參考價格

RS庫存編號:: 822-4500
製造零件編號:: E2KQ-X10ME1 2M
製造商:: Omron

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	Omron
	Thread Size	M18
	Sensor Technology	Capacitive
	Body Style	Threaded Barrel
	Detection Range	10 mm
	Output Function	NO
	Digital Switching Output Type	NPN
	Cable Length	2m
	Connection Type	Pre-Cabled
	Supply Voltage	10 → 30 V dc
	Length	61.8mm
	IP Rating	IP66
	Mounting Type	Non-Flush
	Width	16mm
	Housing Material	Fluorine Resin
	Maximum DC Voltage	30V
	Minimum Operating Temperature	-10°C
	Maximum Switching Frequency	35Hz
	Reverse Polarity Protection	Yes
	Switching Current	100 mA
	Maximum Operating Temperature	+55°C
	Switching Frequency	35 Hz
	Series	E2KQ-X
	Shielding	Unshielded

	選取全部
	品牌 Omron
	Thread Size M18
	Sensor Technology Capacitive
	Body Style Threaded Barrel
	Detection Range 10 mm
	Output Function NO
	Digital Switching Output Type NPN
	Cable Length 2m
	Connection Type Pre-Cabled
	Supply Voltage 10 → 30 V dc
	Length 61.8mm
	IP Rating IP66
	Mounting Type Non-Flush
	Width 16mm
	Housing Material Fluorine Resin
	Maximum DC Voltage 30V
	Minimum Operating Temperature -10°C
	Maximum Switching Frequency 35Hz
	Reverse Polarity Protection Yes
	Switching Current 100 mA
	Maximum Operating Temperature +55°C
	Switching Frequency 35 Hz
	Series E2KQ-X
	Shielding Unshielded

COO (Country of Origin):: JP

Omron E2KQ-X Series Proximity Sensor, 10mm Detection Range, 2m Cable Length - E2KQ-X10ME1

This proximity sensor is designed for a variety of industrial applications, offering reliable detection capabilities in a compact threaded barrel design. Featuring a detection range of 10mm, this capacitive sensor is optimised for use in environments where precision is essential. It is equipped with a 2m pre-cabled connection and is particularly suited for installation in tight spaces due to its streamlined dimensions.

Features & Benefits

• Capacitive design enhances sensitivity to non-metallic objects
• Non-flush installation allows for flexibility in mounting
• NPN output provides versatile integration into control systems
• Operating voltage range of 10 to 30 V DC accommodates various systems

Applications

• Ideal for automation systems requiring accurate object detection
• Utilised in electronic equipment for object placement detection
• Can be used in mechanical systems for position monitoring
• Suitable for equipment subjected to varying environmental conditions

What is the significance of the IP66 rating for this sensor?

The IP66 rating indicates that it is completely dust-tight and can withstand powerful water jets, ensuring dependable performance in various environments, including those exposed to moisture and contaminants.

How does the NPN output facilitate integration into existing systems?

The NPN output allows for easy compatibility with most control systems, enabling the sensor to effectively trigger devices or alarms in response to object detection.

What are the implications of the operating temperature range for this sensor?

With a minimum operating temperature of -10°C and a maximum of +55°C, it can function effectively in a wide range of ambient temperatures, making it suitable for diverse industrial applications.

Can this sensor be used in harsh chemical environments?

Yes, the fluorine resin housing provides excellent protection against chemicals, enabling it to perform reliably in settings where exposure to harsh substances is common.
