Schmersal Elan Series Green Push Button Head, 22 mm Cutout, IP69K

RS Stock No.:: 487-9507
Mfr. Part No.:: NDT GN
Brand:: Schmersal

Schmersal Elan Series Green Push Button Head, 22 mm Cutout, IP69K

Subtotal (1 unit)*

HK$249.42

添加 2 units 件可免費送貨

下方訂單 HK$250.00（不含稅）成本 HK$50.00。

有庫存

44 件準備從其他地點送貨
加上 54 件從 2026年2月23日起發貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

Units	Per unit
1 +	HK$249.42

*price indicative

RS Stock No.:: 487-9507
Mfr. Part No.:: NDT GN
Brand:: Schmersal

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	品牌	Schmersal
	Product Type	Push Button Head
	Series	Elan
	Cutout Diameter	22mm
	Push Button Colour	Green
	Push Button Shape	Round
	Push Button Style	Round
	Push Button Material	ABS
	IP Rating	IP69K
	Push Button Marking	Unmarked
	Push Button Diameter	44.5mm
	Body/Fixing Collar Included	No
	Standards/Approvals	EN 60947-5-4, CSA, UR/UL, UL 508, EN 60947-1, EN 60947-5-5, NEMA ICS-5, EN 418, CCC, EN 60947-5-1, CE, IEC 60947-1
	Hazardous Area Certification	No

	Select all
	品牌 Schmersal
	Product Type Push Button Head
	Series Elan
	Cutout Diameter 22mm
	Push Button Colour Green
	Push Button Shape Round
	Push Button Style Round
	Push Button Material ABS
	IP Rating IP69K
	Push Button Marking Unmarked
	Push Button Diameter 44.5mm
	Body/Fixing Collar Included No
	Standards/Approvals EN 60947-5-4, CSA, UR/UL, UL 508, EN 60947-1, EN 60947-5-5, NEMA ICS-5, EN 418, CCC, EN 60947-5-1, CE, IEC 60947-1
	Hazardous Area Certification No

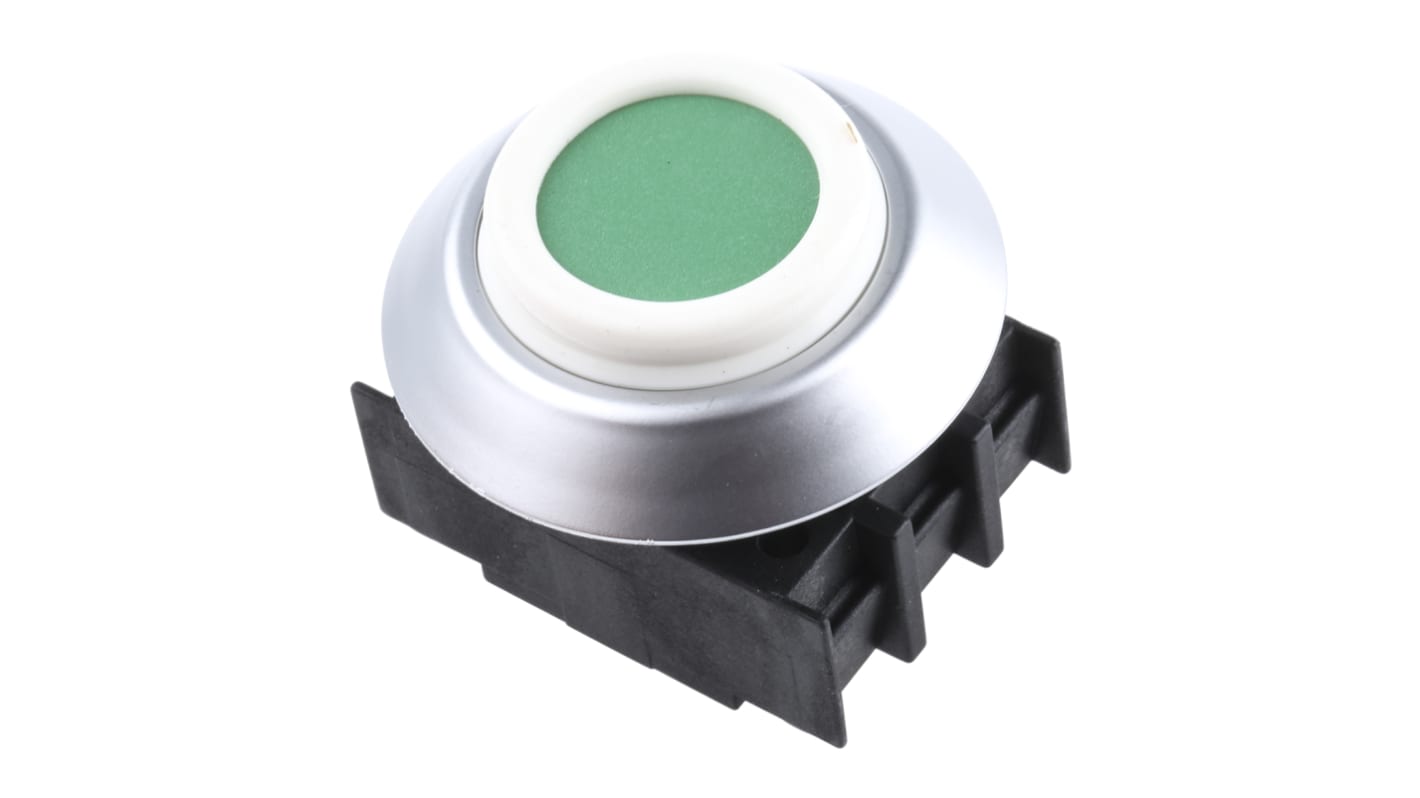

Schmersal Green Push-Button Head, Round, 22mm Cut-Out - Elan Series - NDT GN

Safely switch machinery on or off with this Schmersal push-button head. Its bright green colour contrasts with the white bellows and silver front ring, making it highly visible for greater ease of use. As it's non-latching, it operates machinery when pressed and cuts off power to the machinery when released, making it a good choice for use with equipment that requires frequent stops and starts. It's supplied with a mounting flange for easy installation on the front of a machine panel.

Features & Benefits

• ABS (acrylonitrile butadiene styrene) plastic housing offers resistance to impact for use in heavy-duty environments

• Wide operating temperature range of -25°C to +80°C for use in demanding settings

• Low height of 11mm and light weight of 25g to reduce bulk on your panel

• Fully insulated for greater electrical safety

Applications

• Food and beverage processing

• Pharmaceutical industry

• Cosmetics production

Can I use this button in damp environments?

This button has an ingress protection rating of IP69K, which means it can withstand exposure to water at high temperatures and high pressures. This makes it a good choice for use in environments where equipment must be carefully sanitised and is subject to frequent washdowns.

Push buttons and illuminated buttons, hygiene-‑compliant

Features

Suitable for hygiene-compliant applications:
- Food production
- Beverages industry
- Pharmacy/cosmetics
- Tobacco industry

Max. 2 switching elements per unit

Push buttons
