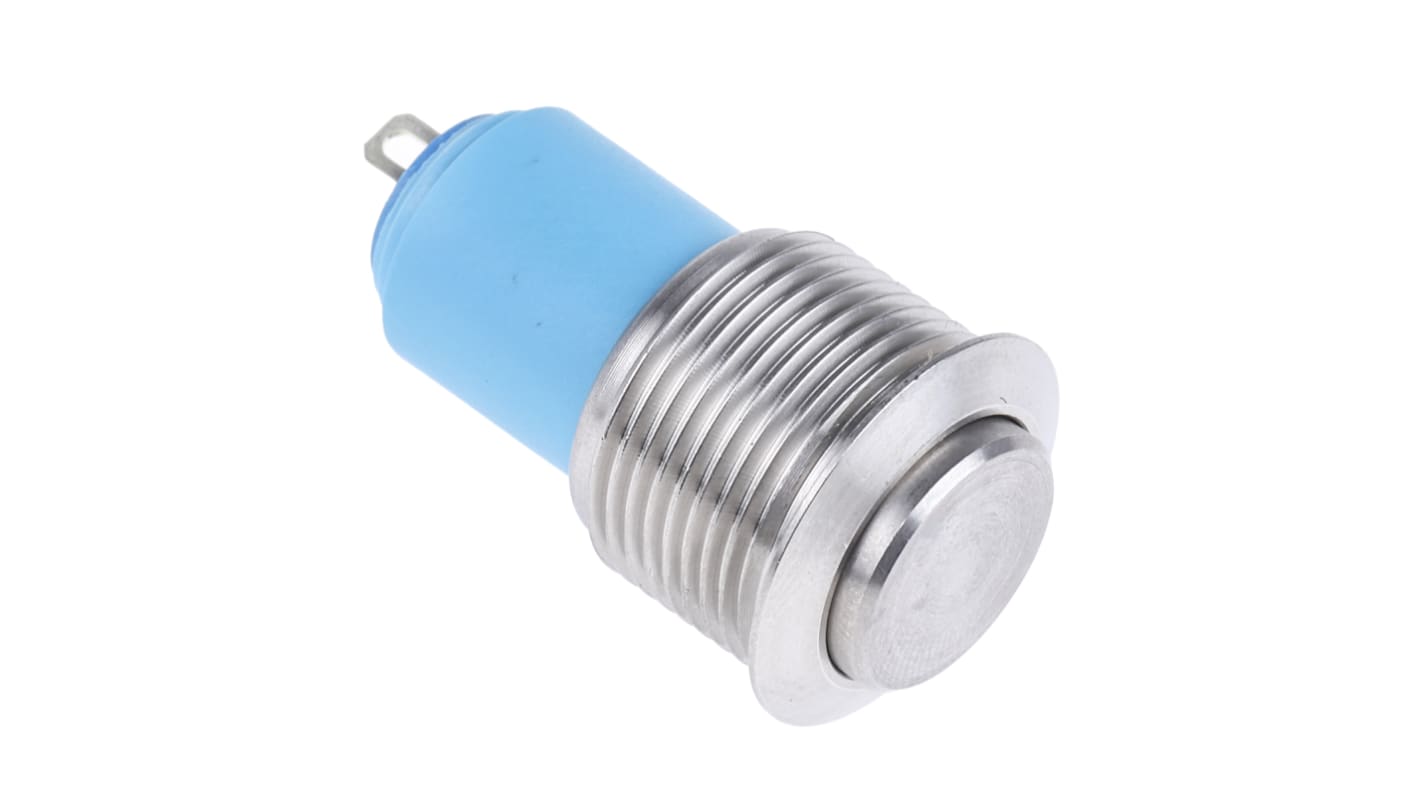

APEM Push Button Switch, Latching, 16.2mm Cutout, SPST, 48V dc, IP65
- RS庫存編號:
- 225-583
- 製造零件編號:
- AV0611A240K
- 製造商:
- APEM
484 現貨庫存，可於3工作日發貨。
已增加
單價 个
HK$624.30
| 單位 | Per unit |
| 1 - 14 | HK$624.30 |
| 15 - 49 | HK$593.40 |
| 50 - 99 | HK$591.94 |
| 100 - 249 | HK$575.38 |
| 250 + | HK$573.83 |
- RS庫存編號:
- 225-583
- 製造零件編號:
- AV0611A240K
- 製造商:
- APEM
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
AV Series Anti-vandal push-button switches
From Apem, this AV series anti-vandal switch is robust and durable, boasting crush-proof impact resistance and an anti-jamming construction. With gold-plated silver contacts and a choice of stainless steel or nickel plated brass bushing, this AV series anti-vandal switch also features a high degree protection and a long mechanical life.
Features and Benefits:
• Electrical life of 40,000 cycles
• Mechanical life of 200,000 cycles
• Flat 16mm actuator
• ON/OFF electrical function
• Contact status display signal
• Mechanical life of 200,000 cycles
• Flat 16mm actuator
• ON/OFF electrical function
• Contact status display signal
Available in this Range:
規格
Attribute | Value |
|---|---|
| Switch Operation | Latching |
| Illuminated | No |
| Panel Cut Out Diameter | 16.2mm |
| Push Button Colour | Silver |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Voltage Rating | 48V dc |
| Push Button Style | Round |
| IP Rating | IP65 |
| Contact Current Rating | 1 A @ 24 V dc |
| Contact Material | Gold Plated Silver |
| Manufacturer Part No. | AV0611A240K |
| Terminal Type | Solder |
