Arcolectric (Bulgin) Ltd Miniature Push Button Switch, Momentary, Panel Mount, 7.1mm Cutout, SPST, 250V ac
- RS庫存編號:
- 320-629
- 製造零件編號:
- T0916SOAAE
- 製造商:
- Arcolectric (Bulgin) Ltd
此產品暫時不接受預訂。
抱歉，此產品暫無現貨，目前也不接受預訂。
已增加
單價 个
HK$54.15
| 單位 | Per unit |
| 1 - 49 | HK$54.15 |
| 50 - 99 | HK$53.03 |
| 100 - 249 | HK$51.41 |
| 250 - 1249 | HK$50.18 |
| 1250 + | HK$41.28 |
- RS庫存編號:
- 320-629
- 製造零件編號:
- T0916SOAAE
- 製造商:
- Arcolectric (Bulgin) Ltd
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- TN
產品詳細資訊

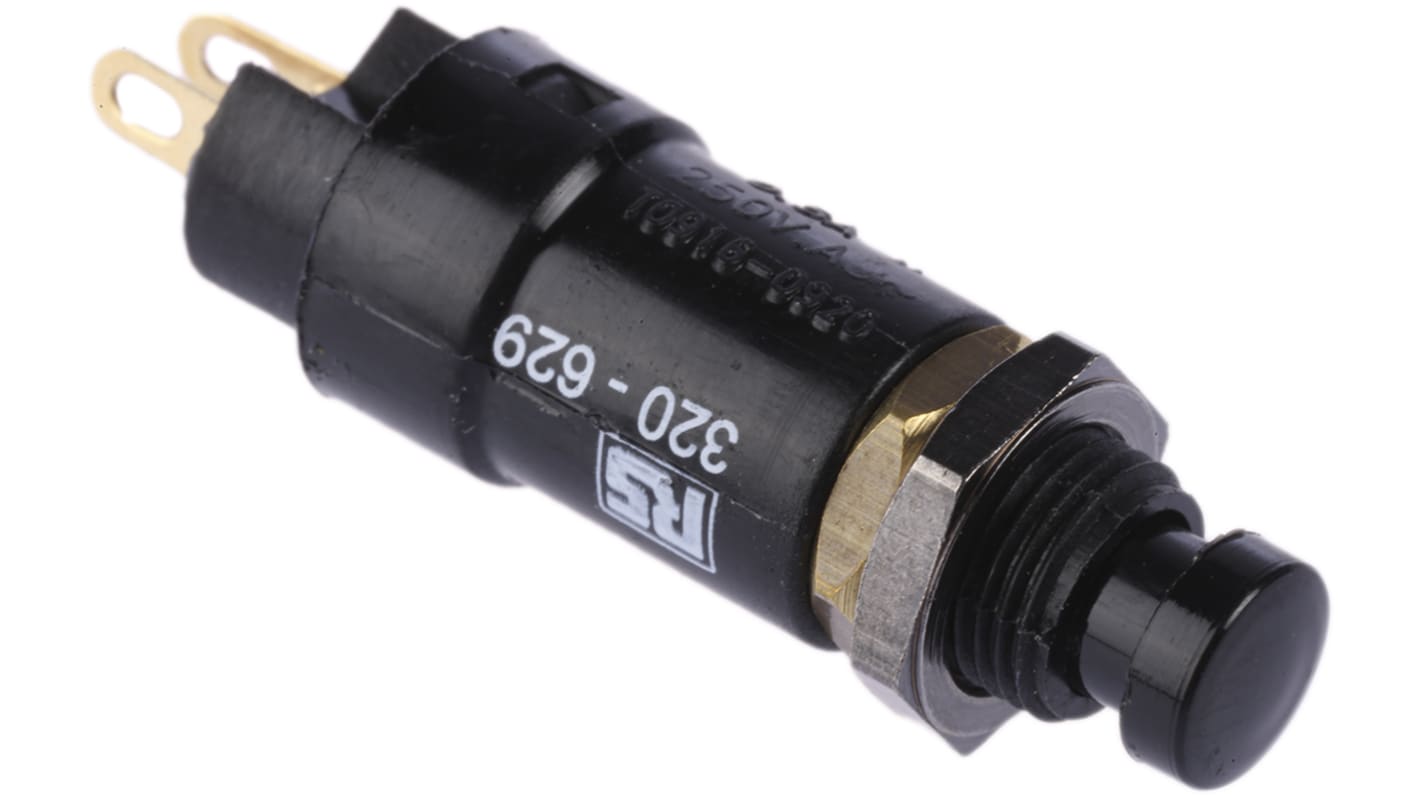

Arcolectric Miniature Push Button Switches
Momentary action switches with slow make-and-break contacts.
Single hole fixing to clear 7.4mm.
Solder terminals
Contact Material: Gold flashed Ag/Cu Alloy
Contact Rating: 0.5A @ 240Vac
Single hole fixing to clear 7.4mm.
Solder terminals
Contact Material: Gold flashed Ag/Cu Alloy
Contact Rating: 0.5A @ 240Vac
Approvals
7777
規格
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Panel Cut Out Diameter | 7.1mm |
| Mounting Type | Panel Mount |
| Push Button Colour | Black |
| Contact Configuration | Single Pole Single Throw (SPST) |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| Contact Current Rating | 500 mA @ 250 V ac |
| Manufacturer Part No. | T0916SOAAE |
| Terminal Type | Solder Tab |
