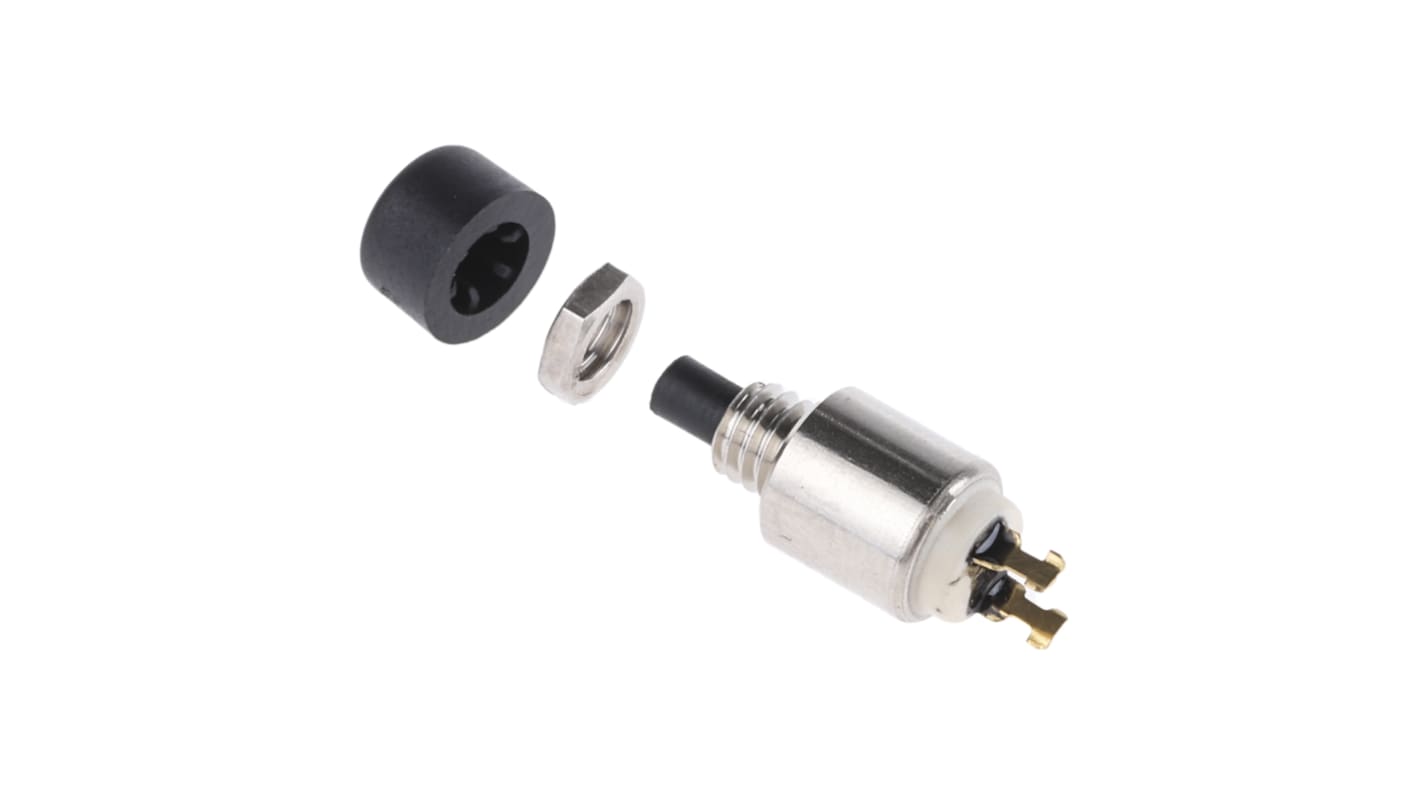

1-pole on-off switch Momentary Miniature Push Button Switch, Panel Mount

  • RS庫存編號 336-731
  • 製造零件編號 9533CD+U572
  • 製造商 APEM
產品概覽和技術數據資料表
法例與合規
相容
COO (Country of Origin): FR
產品詳細資訊

9000 Series Miniature Switches

From Apem, the 9000 Series of Miniature Switches are momentary action, with easy to install panel mounting and PCB mounting options available. These miniature switches are suitable for a wide range of applications.

Features and Benefits:

• Brass nickel plated bushing
• Polyamide, glass filled actuator
• Electrical Life: 250.000 cycles.

Available in this range:

• Stock No: 119-3507 is a SP-NO Momentary Switch for PCB mounting
• Stock No: 119-3513 is a SP-NO Momentary Switch with right angle PCB mounting
• Stock No: 332-846 is a SP-NC Momentary Switch for panel mounting
• Stock No: 336-731 is a SP-NO Momentary Switch for panel mounting

規格
Attribute Value
Switch Operation Momentary
Mounting Type Panel Mount
Contact Configuration 1-pole on-off switch
Panel Cut Out Size 4.2 (Dia.)mm
Panel Cut Out Diameter 4.2mm
Actuator Colour Black
Voltage Rating 30V dc
Contact Current Rating 100 mA @ 30 V dc
Actuator Shape Round
Terminal Type Solder
Actuator Type Cap
Contact DC Voltage Rating 30V
3791 現貨庫存,可於3工作日發貨。
單價 個
HK$ 50.59
(不含稅)
單位
Per unit
1 - 49
HK$50.59
50 - 99
HK$48.82
100 - 249
HK$46.08
250 - 499
HK$43.25
500 +
HK$41.94
