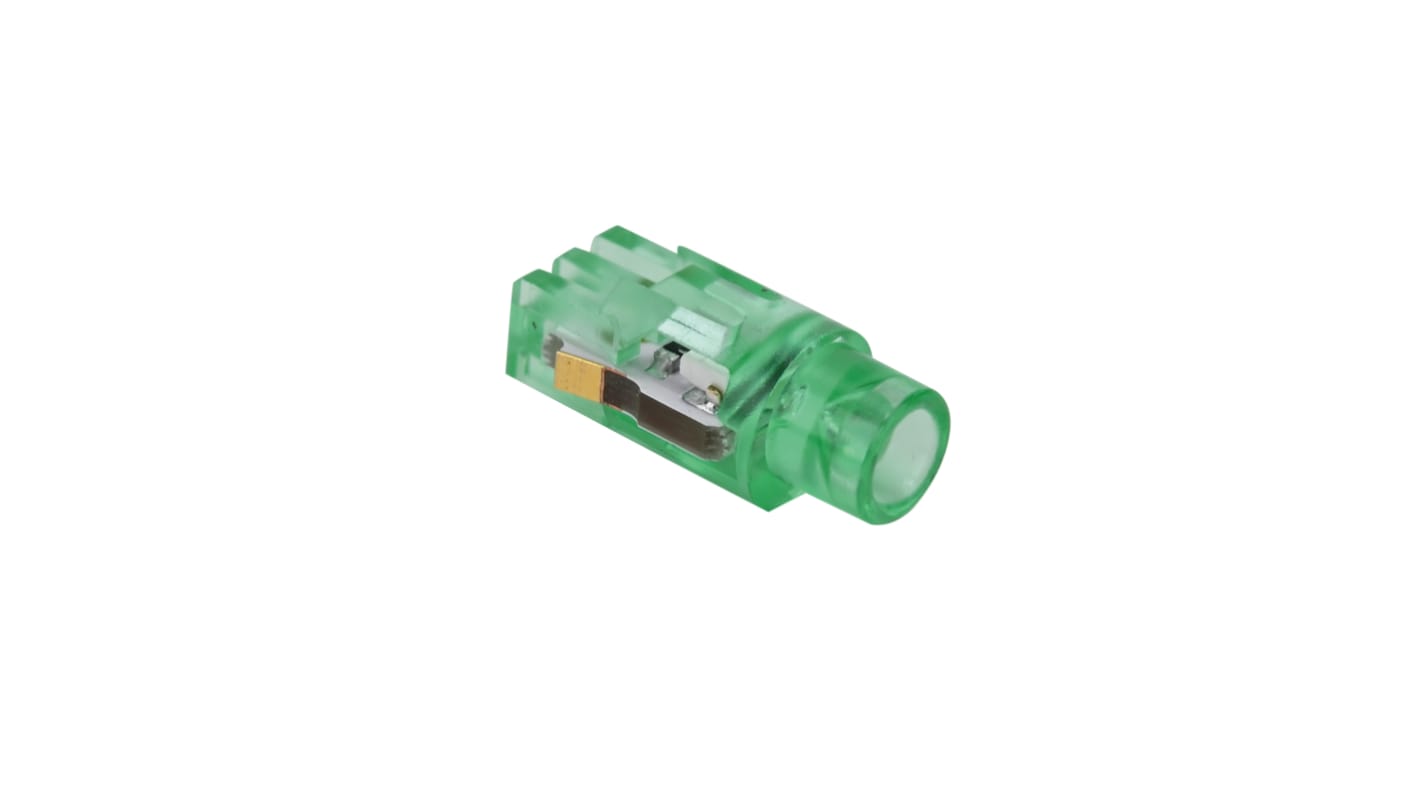

Idec LAD Series Illuminated Miniature Push Button Switch, Momentary, Panel, 16.2 mm Cutout, Green LED, IP40, IP65 1.5 kV
- RS庫存編號:
- 352-749
- 製造零件編號:
- LAD-SGN
- 製造商:
- Idec
可享批量折扣
小計（1 包，共 5 件）*
HK$145.40
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 | 每包* |
|---|---|---|
| 5 - 45 | HK$29.08 | HK$145.40 |
| 50 - 245 | HK$28.44 | HK$142.20 |
| 250 - 495 | HK$27.62 | HK$138.10 |
| 500 - 1245 | HK$26.94 | HK$134.70 |
| 1250 + | HK$26.36 | HK$131.80 |
* 參考價格
- RS庫存編號:
- 352-749
- 製造零件編號:
- LAD-SGN
- 製造商:
- Idec
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Idec | |
| Product Type | Miniature Push Button Switch | |
| Switch Operation | Momentary | |
| Illuminated | Yes | |
| Series | LAD | |
| Panel Cutout Size | 16.2 mm | |
| Mount Type | Panel | |
| LED Colour | Green | |
| Terminal Type | Solder | |
| IP Rating | IP40, IP65 | |
| Actuator Style | Rectangular | |
| Contact AC Voltage | 1.5kV ac | |
| Switch Configuration | On-Off | |
| Maximum Operating Temperature | 120°C | |
| Switch Contact Current | 10A | |
| Standards/Approvals | CSA, UL | |
| 選取全部 | ||
|---|---|---|
品牌 Idec | ||
Product Type Miniature Push Button Switch | ||
Switch Operation Momentary | ||
Illuminated Yes | ||
Series LAD | ||
Panel Cutout Size 16.2 mm | ||
Mount Type Panel | ||
LED Colour Green | ||
Terminal Type Solder | ||
IP Rating IP40, IP65 | ||
Actuator Style Rectangular | ||
Contact AC Voltage 1.5kV ac | ||
Switch Configuration On-Off | ||
Maximum Operating Temperature 120°C | ||
Switch Contact Current 10A | ||
Standards/Approvals CSA, UL | ||
不相容
- COO (Country of Origin):
- JP
8mm Sub-miniature Illuminated Push-button Switches
8mm contact indicators for panel mounting
LED illumination, Suitable LEDs are supplied separately
Indicators are available in both square and round styles
Solder Tab terminals
LEDs
A range of LEDs specifically for use with this sub-miniature indicator series
Current should be limited to 20mA by use of a suitable external resistor as detailed at the beginning of the Optoelectronics/Indicators section. VF @ IF 20mA=1.7V (red), 2.1V (green) and 2.2V (yellow)
Note: When not illuminated, the green LED appears to be yellow.
Lenses
Two-part lenses comprising a diffuser and a coloured transparent front cover. Diffuser may be marked to indicate switch function, etc
Note
Square and round bezel indicators do not include a lens, switch or LED. Suitable lenses need to be ordered separately.
