- RS庫存編號:
- 690-3286
- 製造零件編號:
- R19DFSSTAG
- 製造商:
- EOZ
23 現貨庫存,可於3工作日發貨。
已增加
單價 个
HK$98.71
單位 | Per unit |
1 - 9 | HK$98.71 |
10 - 49 | HK$95.74 |
50 - 99 | HK$92.77 |
100 - 249 | HK$90.80 |
250 + | HK$88.82 |
- RS庫存編號:
- 690-3286
- 製造零件編號:
- R19DFSSTAG
- 製造商:
- EOZ
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
R Series Anti-vandal pushbutton (19 mm)
These R series are a range of 19 mm vandal resistant push buttons, ideal for use across a number of industries and applications such as:-
• Access Control systems.
• Machinery and factory equipment.
• Exposed public areas such as ticket machines, kiosks and vending machines.
• And many more.
• Machinery and factory equipment.
• Exposed public areas such as ticket machines, kiosks and vending machines.
• And many more.
Features and Benefits
• Vandal Resistant push buttons.
• Shock resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface.
• Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.
• Mounted in 19mm holes.
• Non-illuminated.
• Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.
• Shock resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface.
• Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.
• Mounted in 19mm holes.
• Non-illuminated.
• Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.

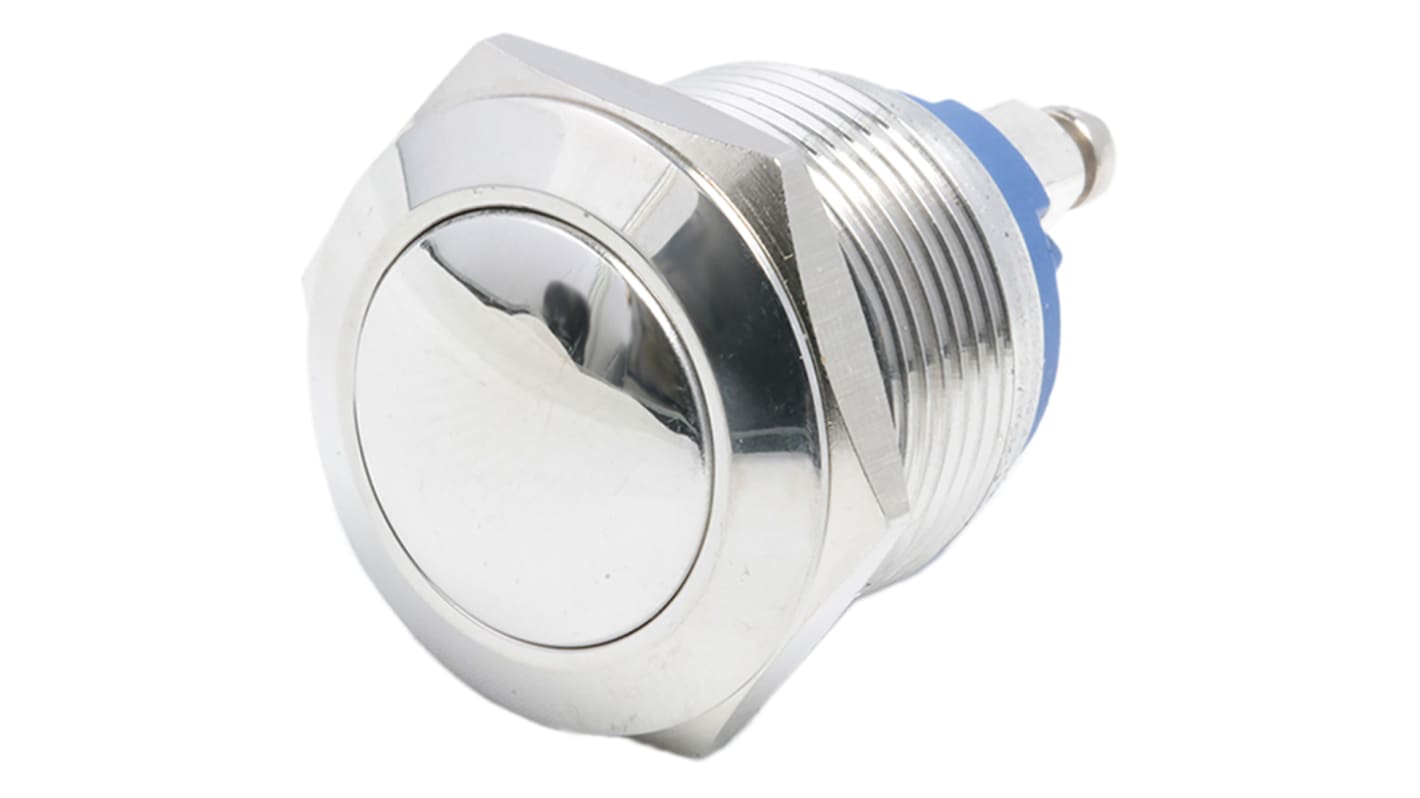

The R19DFSSTAG push button is a 19 mm, anti-vandal, momentary switch.
Features and Benefits
• Domed shape push button.
• Stainless steel – resists corrosion, heat damage and chemical damage.
• Non-illuminated.
• Screw terminal.
• Momentary push button switch only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
• Stainless steel – resists corrosion, heat damage and chemical damage.
• Non-illuminated.
• Screw terminal.
• Momentary push button switch only makes electrical contact whilst held in that position, once you let go the switch returns it to the off position.
規格
Attribute | Value |
---|---|
Switch Operation | Momentary |
Illuminated | No |
Panel Cut Out Diameter | 19.2mm |
Mounting Type | Panel Mount |
Push Button Colour | Silver |
Contact Configuration | Single Pole Single Throw (SPST) |
Voltage Rating | 48 V dc, 250V ac |
Push Button Style | Round |
IP Rating | IP65 |
Contact Current Rating | 2 A @ 48 V dc |
Contact Material | Silver Alloy |
Manufacturer Part No. | R19DFSSTAG |
Case Colour | Stainless Steel |
Terminal Type | Screw |
