選取全部	屬性	值
	品牌	EAO
	Switch Operation	Latching
	IP Rating	IP69
	Contact Current Rating	250 mA @ 24 V dc
	Manufacturer Part No.	57-10-000065
	Minimum Operating Temperature	-40°C
	Body Material	Polyamide
	Maximum Operating Temperature	+90°C
	Operating Temperature Range	-40 → +90°C
	Terminal Type	Screw

	選取全部
	品牌 EAO
	Switch Operation Latching
	IP Rating IP69
	Contact Current Rating 250 mA @ 24 V dc
	Manufacturer Part No. 57-10-000065
	Minimum Operating Temperature -40°C
	Body Material Polyamide
	Maximum Operating Temperature +90°C
	Operating Temperature Range -40 → +90°C
	Terminal Type Screw

COO (Country of Origin):: CH

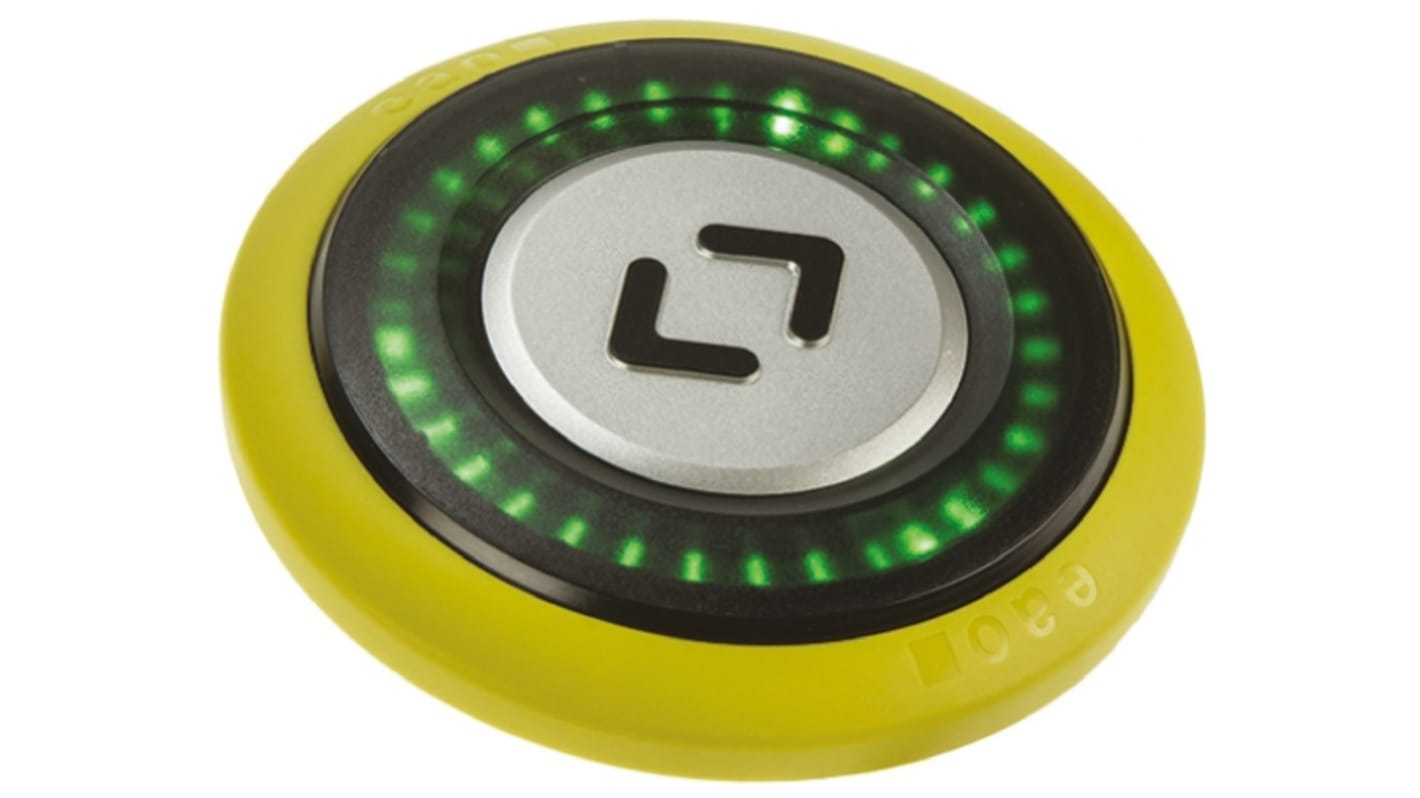

EAO Series 57 Door Opening Push Button

The Series 57 switches are designed to mount identically to other manufacturers switches that are also designed as door opening push buttons. This gives the potential for direct replacement or a complete upgrade to the 57 series.

Illumination; outer ring: green LEDs, inner ring: red LEDs
2 million operations mechanical lifetime
Operating temperature range -40 to + 85°C
IP69K front protection
Symbols conform to TSI, PRM and ADA
Typical applications include tram and train electrical door opening

Standards

EN 60947-5-1, EN 50155, EN 14752

EAO Door Open Button, Latching, IP69
