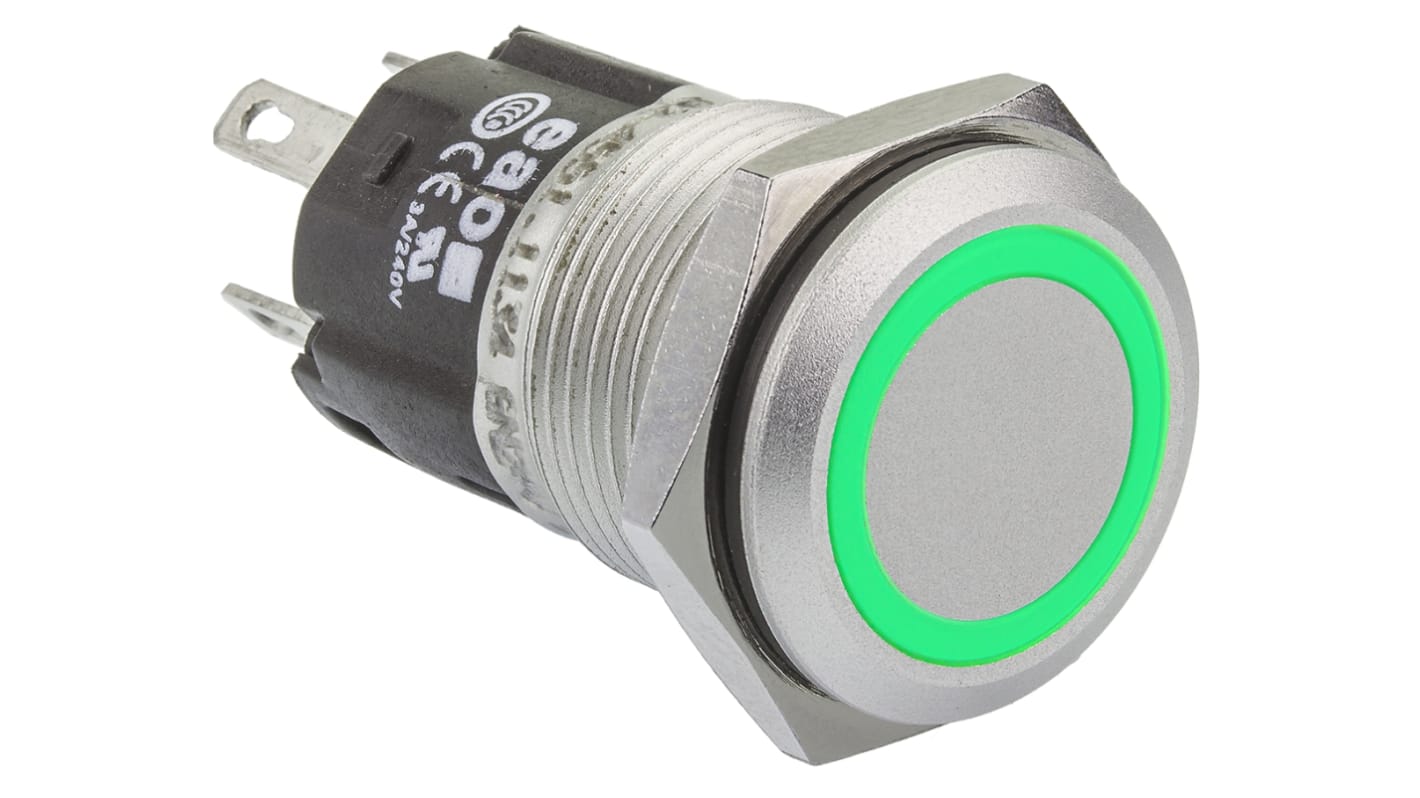

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPDT, Green LED, 12V, IP65, IP67

RS庫存編號:: 811-4069
Distrelec 貨號:: 301-27-187
製造零件編號:: 82-4551.1133
製造商:: EAO

EAO 82 Series Illuminated Push Button Switch, Momentary, Panel Mount, 16mm Cutout, SPDT, Green LED, 12V, IP65, IP67

查看所有Push Button Switches

可享批量折扣

小計（1 件）*

HK$152.70

訂單超過 HK$250.00 免費送貨

有庫存

396 件準備從其他地點送貨

**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。

單位	每單位
1 - 9	HK$152.70
10 - 24	HK$148.00
25 - 49	HK$143.50
50 - 149	HK$140.10
150 +	HK$137.80

* 參考價格

RS庫存編號:: 811-4069
Distrelec 貨號:: 301-27-187
製造零件編號:: 82-4551.1133
製造商:: EAO

規格

產品概覽和技術數據資料表

法例與合規

產品詳細資訊

透過選取一個或多個屬性來查找類似產品。

選取全部	屬性	值
	品牌	EAO
	Switch Operation	Momentary
	Illuminated	Yes
	Panel Cut Out Diameter	16mm
	Series	82
	Mounting Type	Panel Mount
	Contact Configuration	SPDT
	Voltage Rating	12V
	Push Button Style	Round
	LED Colour	Green
	IP Rating	IP65, IP67
	Contact Current Rating	3A
	Contact Material	Silver Alloy
	Contact DC Voltage Rating	12V
	Manufacturer Part No.	82-4551.1133
	Case Colour	Silver
	Contact AC Voltage Rating	12V
	Operating Temperature Range	-30°C to +70°C
	Maximum Operating Temperature	+70°C
	Terminal Type	Plug In, Solder
	Minimum Operating Temperature	-30°C

	選取全部
	品牌 EAO
	Switch Operation Momentary
	Illuminated Yes
	Panel Cut Out Diameter 16mm
	Series 82
	Mounting Type Panel Mount
	Contact Configuration SPDT
	Voltage Rating 12V
	Push Button Style Round
	LED Colour Green
	IP Rating IP65, IP67
	Contact Current Rating 3A
	Contact Material Silver Alloy
	Contact DC Voltage Rating 12V
	Manufacturer Part No. 82-4551.1133
	Case Colour Silver
	Contact AC Voltage Rating 12V
	Operating Temperature Range -30°C to +70°C
	Maximum Operating Temperature +70°C
	Terminal Type Plug In, Solder
	Minimum Operating Temperature -30°C

登入下載 CAD 模型

COO (Country of Origin):: CN

EAO Series 82 Illuminated Anti-Vandal Switches

Series 82 illuminated anti-vandal switches from EAO. The switches have an aesthetic design combined with a robust metal housing and conform to protection ratings; IK10 (physical attack) and IP67 (Dust and waterproof), making them ideal for use in public areas and harsh conditions. Three size versions are available for mounting into cut-outs of 16, 19 and 22mm.

Aluminium construction
Flat, convex and raised button types available
Daylight readable illumination
Excellent tactile switching action

Approvals

CE, UL

EAO Push Button Switch, Green LED Colour, 16mm Cutout Diameter - 82 Series - 82-4551.1133

Choose this push button switch from EAO for basic function control on your industrial HMIs. The stainless steel body and aluminium actuator are resistant to impact and corrosion, so this unit is a robust choice for use in harsh environments. Its green LED illumination indicates its conventional use as a start button. As it's designed for solder termination, you'll get a permanent, vibration-proof connection to your HMI unit.

Features & Benefits

• IP67 rating means it's dustproof and can withstand immersion in 1m of water for up to 30 minutes
• Long mechanical service life of over one million operating cycles for long-term performance
• Broad operating temperature range of -30°C to +70°C for use in demanding conditions
• Silver alloy contacts are conductive and resistant to corrosion for a reliable connection

Applications

• Security and access control systems
• Factory equipment
• Lifts and escalators

What's the difference between a momentary switch and a latching switch?

A momentary switch, like this one, carries out the operation only when it's pressed down. A latching switch, on the other hand, only needs to be pressed once to maintain the command.
