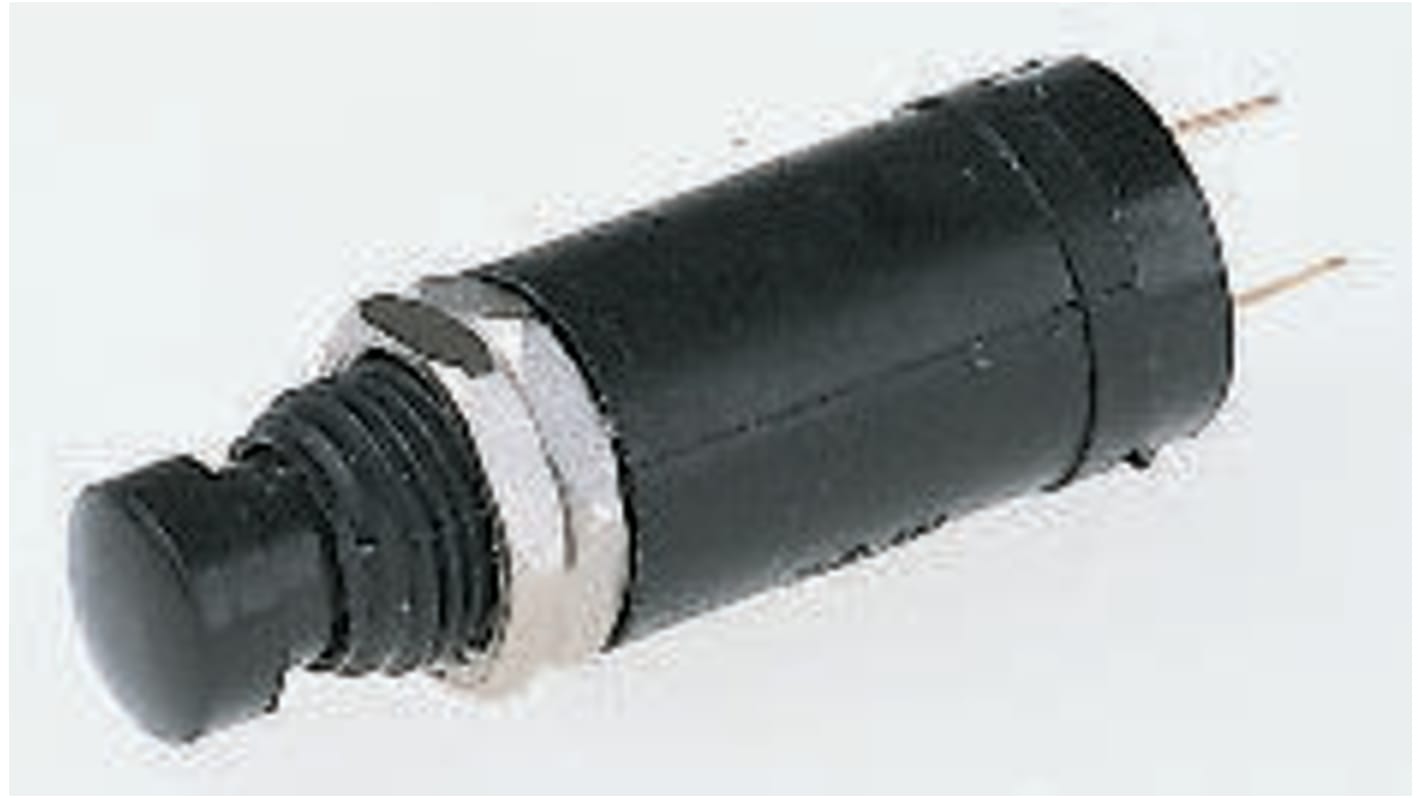

Arcolectric (Bulgin) Ltd Miniature Push Button Switch, Momentary, Panel Mount, 7.1mm Cutout, SPST, 250V ac
- RS庫存編號:
- 861-0258
- 製造零件編號:
- T0919SOAAF
- 製造商:
- Arcolectric (Bulgin) Ltd
39 現貨庫存，可於3工作日發貨。
已增加
單價 个
HK$49.02
| 單位 | Per unit |
| 1 - 24 | HK$49.02 |
| 25 - 49 | HK$47.56 |
| 50 - 99 | HK$46.10 |
| 100 - 249 | HK$45.12 |
| 250 + | HK$44.14 |
- RS庫存編號:
- 861-0258
- 製造零件編號:
- T0919SOAAF
- 製造商:
- Arcolectric (Bulgin) Ltd
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- TN
產品詳細資訊
Arcolectric Miniature Push Button Switches
Momentary action switches with slow make-and-break contacts.
Single hole fixing to clear 7.4mm.
Solder terminals
Contact Material: Gold flashed Ag/Cu Alloy
Contact Rating: 0.5A @ 240Vac
Single hole fixing to clear 7.4mm.
Solder terminals
Contact Material: Gold flashed Ag/Cu Alloy
Contact Rating: 0.5A @ 240Vac
規格
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Panel Cut Out Diameter | 7.1mm |
| Mounting Type | Panel Mount |
| Contact Configuration | SPST |
| Voltage Rating | 250V ac |
| Push Button Style | Round |
| Contact Current Rating | 500 mA |
| Manufacturer Part No. | T0919SOAAF |
| Terminal Type | Solder Tab |
