RS PRO Push Button Switch, Momentary, Panel Mount, 19mm Cutout, SPST, 36V dc, IP65
- RS庫存編號:
- 914-3569
- Distrelec 貨號:
- 304-03-658
- 製造商:
- RS PRO
可享批量折扣
小計（1 件）*
HK$157.20
訂單超過 HK$250.00 免費送貨
有庫存
- 129 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 1 - 9 | HK$157.20 |
| 10 - 49 | HK$152.50 |
| 50 - 99 | HK$147.80 |
| 100 - 499 | HK$144.60 |
| 500 + | HK$119.00 |
* 參考價格
- RS庫存編號:
- 914-3569
- Distrelec 貨號:
- 304-03-658
- 製造商:
- RS PRO
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | RS PRO | |
| Switch Operation | Momentary | |
| Illuminated | No | |
| Panel Cut Out Diameter | 19mm | |
| Mounting Type | Panel Mount | |
| Push Button Colour | Yellow | |
| Contact Configuration | SPST | |
| Voltage Rating | 36V dc | |
| Push Button Style | Round | |
| IP Rating | IP65 | |
| Push Button Material | Metal | |
| Contact Current Rating | 2 A | |
| Contact Material | Silver Alloy | |
| Manufacturer Part No. | AB-AV-935 | |
| Contact DC Voltage Rating | 36V | |
| Case Colour | Yellow | |
| Terminal Type | Screw | |
| Body Material | Metal | |
| Minimum Operating Temperature | -25 °C | |
| Maximum Operating Temperature | +55 °C | |
| 選取全部 | ||
|---|---|---|
品牌 RS PRO | ||
Switch Operation Momentary | ||
Illuminated No | ||
Panel Cut Out Diameter 19mm | ||
Mounting Type Panel Mount | ||
Push Button Colour Yellow | ||
Contact Configuration SPST | ||
Voltage Rating 36V dc | ||
Push Button Style Round | ||
IP Rating IP65 | ||
Push Button Material Metal | ||
Contact Current Rating 2 A | ||
Contact Material Silver Alloy | ||
Manufacturer Part No. AB-AV-935 | ||
Contact DC Voltage Rating 36V | ||
Case Colour Yellow | ||
Terminal Type Screw | ||
Body Material Metal | ||
Minimum Operating Temperature -25 °C | ||
Maximum Operating Temperature +55 °C | ||
- COO (Country of Origin):
- CN

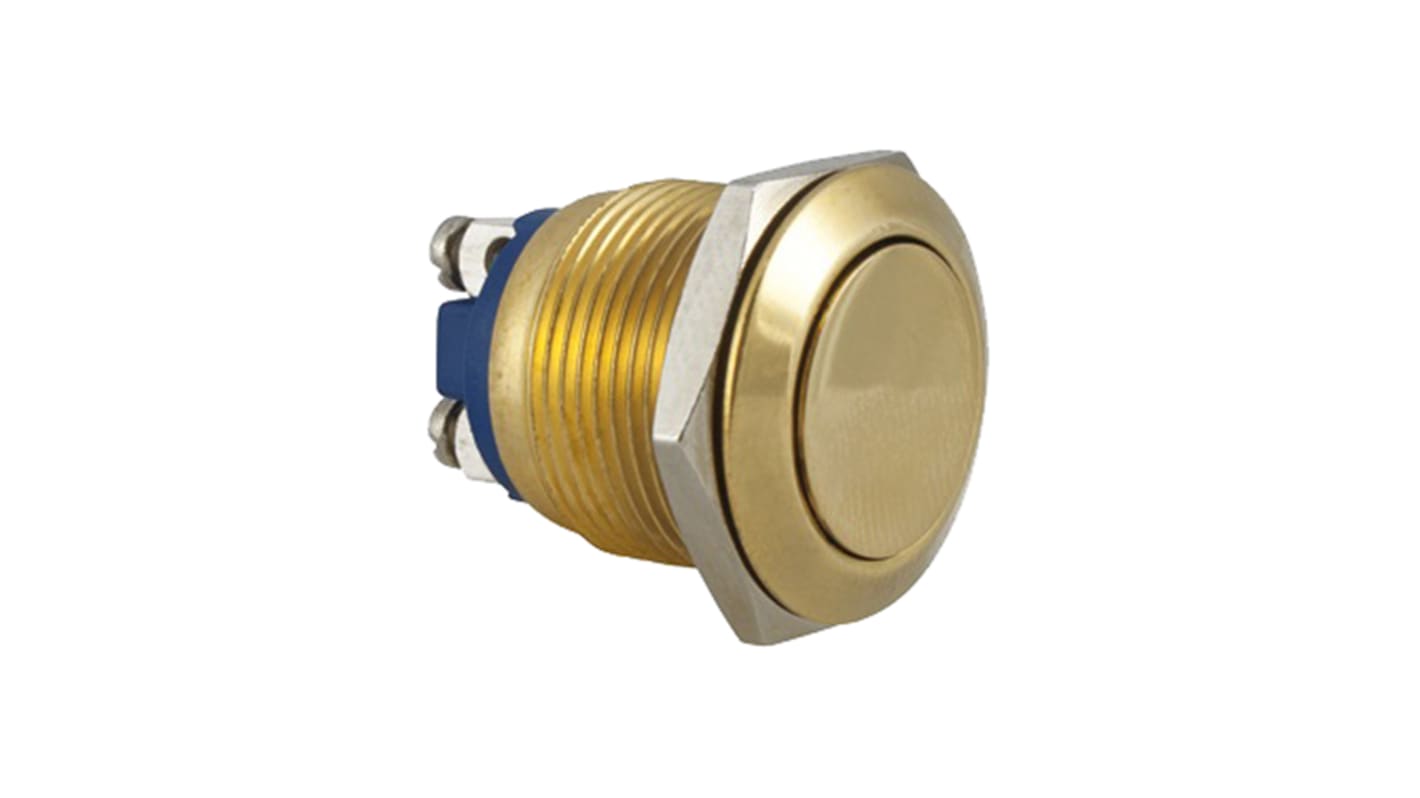

RS PRO 19mm Anti-Vandal Push Button, IP65
A hardwearing push button deal for heavy use or for public facing applications. Rated to IP65 the anti-vandal push button is protected against ingress from dust and dirt and is suitable for use for indoor applications.
The IP65 push button switch is designed with momentary 1NO contact arrangement with screw terminals and can be installed into a 19mm panel cut out in a thickness of 1 – 10mm.
Constructed with Silver alloy contacts, a PBT base with a Brass body and button for a robust and tough anti-vandal push button.
Features and Benefits
Anti-vandal push button switch
1NO Momentary
IP65 rated
Brass button and body
Screw terminals
19mm panel cut out
-25 °C to +55 °C temperature range
1NO Momentary
IP65 rated
Brass button and body
Screw terminals
19mm panel cut out
-25 °C to +55 °C temperature range
