Otto Push Button Switch, Momentary, Panel Mount, SPDT, 28 V dc, 115V ac, IP64, IP68S, IP69K
- RS庫存編號:
- 914-4443
- 製造零件編號:
- P8-V316315
- 製造商:
- Otto
- RS庫存編號:
- 914-4443
- 製造零件編號:
- P8-V316315
- 製造商:
- Otto
產品概覽和技術數據資料表
法例與合規
產品詳細資訊

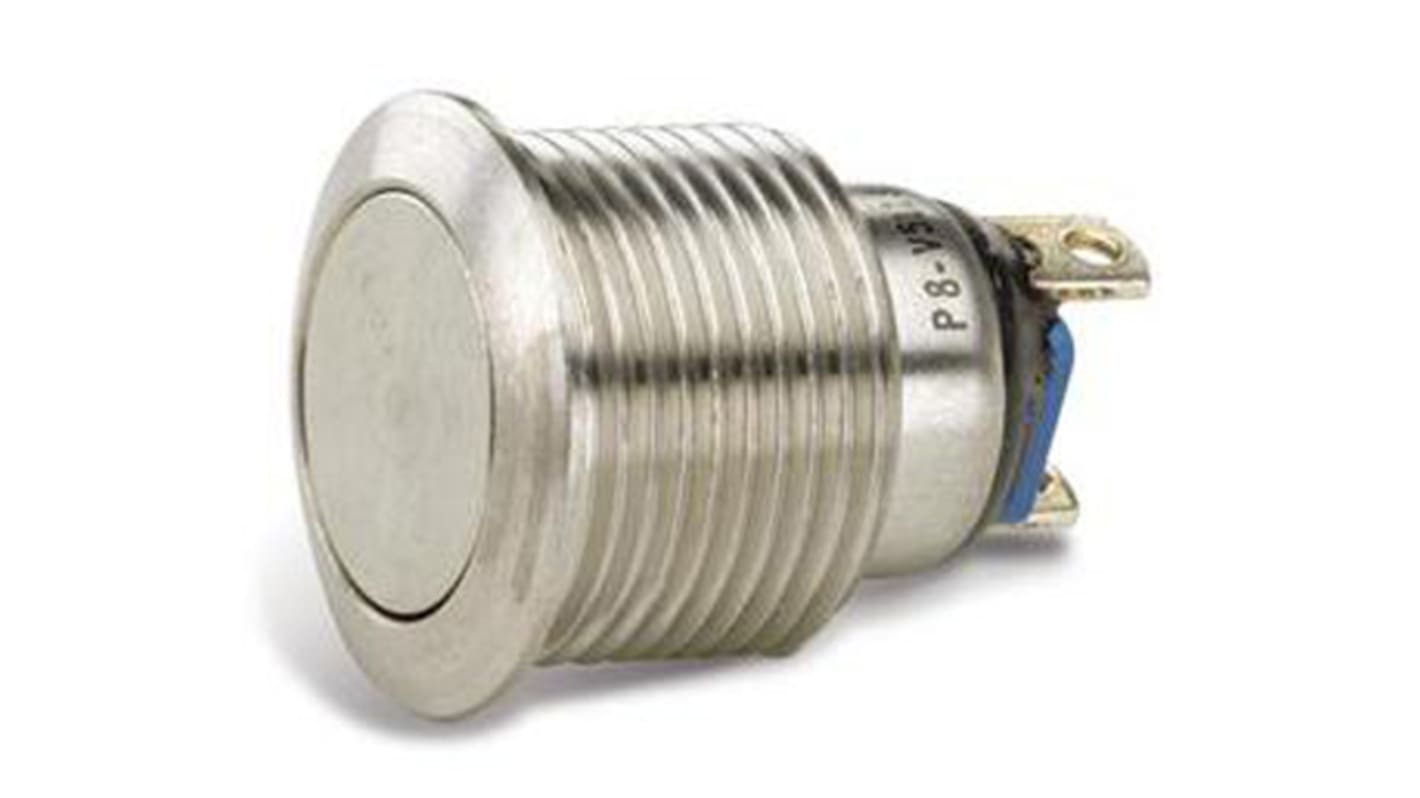

Otto P8-V Vandal Resistant Pushbuttons
The P8-V series gives the same quality and precision tactile feedback as the P8 series but comes in a stainless steel vandal resistant case and button. They are sealed to IP68S and IP69K standards and have a mechanical life expectancy of 1,000,000 cycles. The terminals are also sealed giving protection from solder flux and rear of panel harsh environment protection.
Potential Applications
The vandal resistant and sealed nature of these switches makes them ideally suited for door access security systems, public transport systems, emergency phones and traffic signals. They are also ideal for process control environments and anywhere that durability, ruggedness and security are crucial.
Features
Stainless steel vandal resistant case
Watertight to IP68S and IP69K
Positive tactile feedback
Less than 25mΩ contact resistance
Mechanical life 1 million cycles
UL1500 ignition protected
Watertight to IP68S and IP69K
Positive tactile feedback
Less than 25mΩ contact resistance
Mechanical life 1 million cycles
UL1500 ignition protected
Standards
UL recognized & CSA certified
規格
Attribute | Value |
|---|---|
| Switch Operation | Momentary |
| Illuminated | No |
| Mounting Type | Panel Mount |
| Push Button Colour | Silver |
| Contact Configuration | SPDT |
| Voltage Rating | 28 V dc, 115V ac |
| Push Button Style | Round |
| IP Rating | IP64, IP68S, IP69K |
| Contact Current Rating | 10 A @ 115 V ac, 10 A @ 28 V dc |
| Contact Material | Silver Plated |
| Case Colour | Silver |
| Contact DC Voltage Rating | 28V |
| Contact AC Voltage Rating | 115V |
| Manufacturer Part No. | P8-V316315 |
| Terminal Type | Solder |
