- RS庫存編號:
- 652-5779
- 製造零件編號:

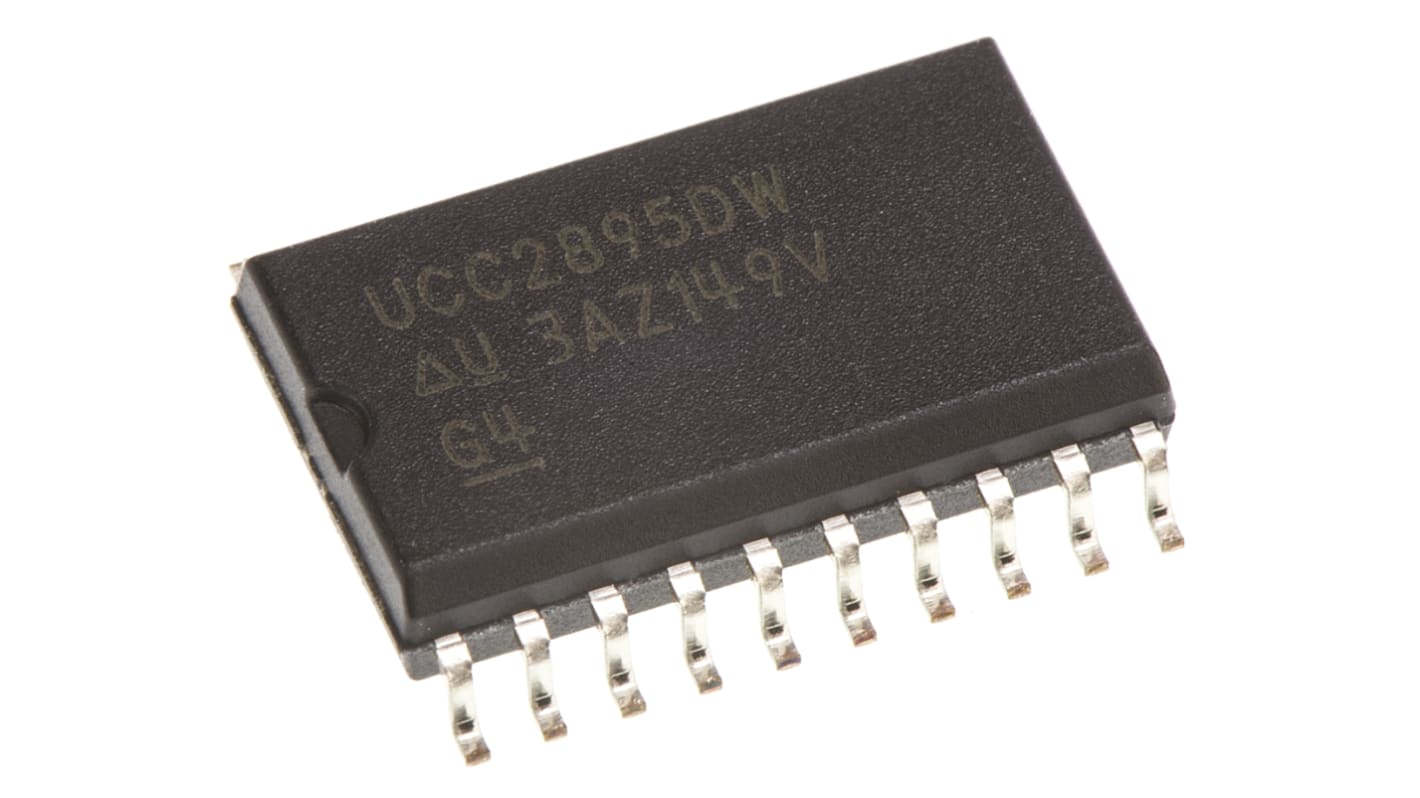

- UCC2895DW
- 製造商:
- Texas Instruments
- RS庫存編號:
- 652-5779
- 製造零件編號:
- UCC2895DW
- 製造商:
- Texas Instruments
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
PWM Controllers 1MHz, UCC28xx Series, Texas Instruments
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
PWM (Pulse Width Modulation) Controllers, Texas Instruments
規格
Attribute | Value |
---|---|
Maximum Switching Frequency | 1 MHz |
Start-up Supply Current | 150µA |
Output Current | 100 (Max) mA |
Number of Outputs | 4 |
Mounting Type | Surface Mount |
Package Type | SOIC |
Pin Count | 20 |
Dimensions | 12.8 x 7.52 x 2.35mm |
Length | 12.8mm |
Width | 7.52mm |
Height | 2.35mm |
Maximum Operating Supply Voltage | 16.5 V |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Minimum Operating Supply Voltage | 10 V |
