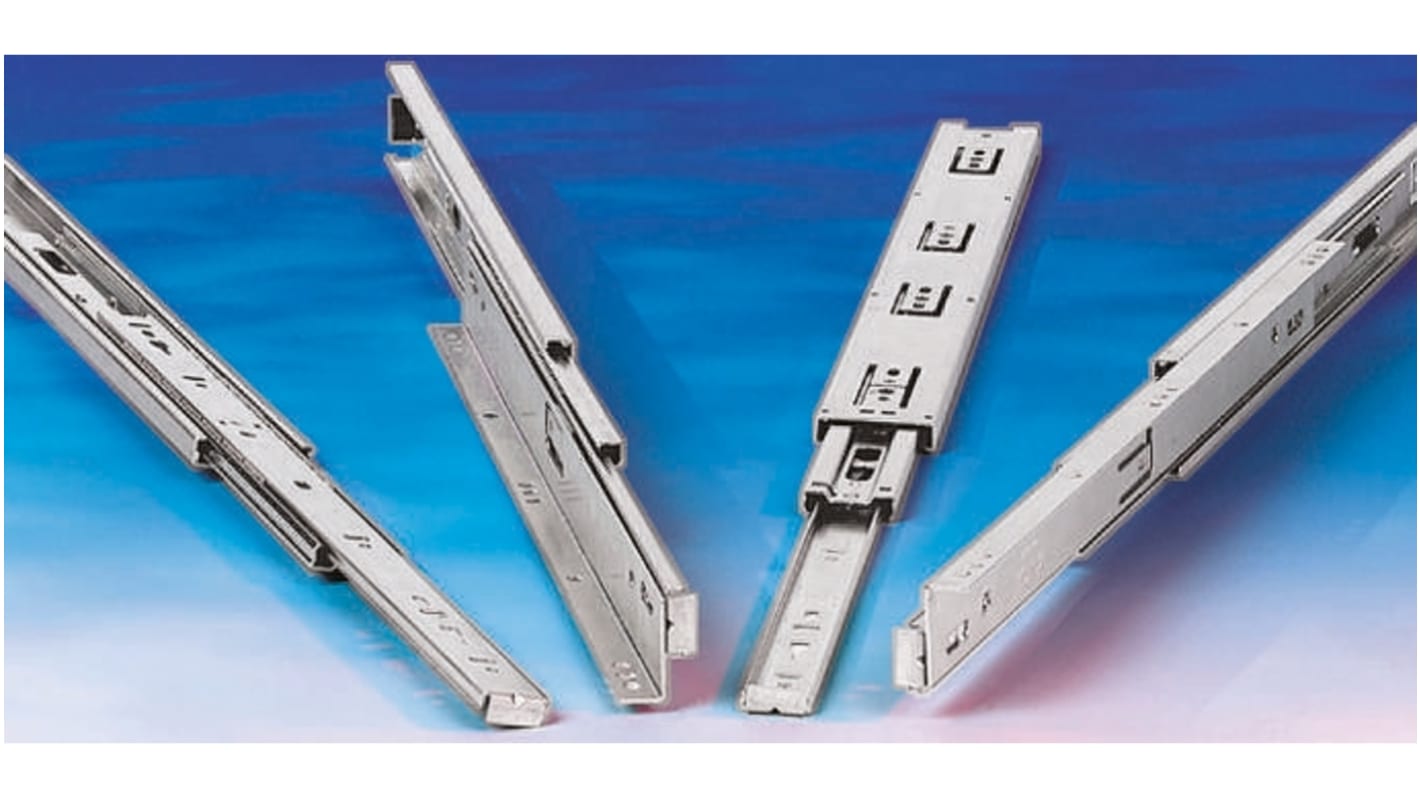

Accuride Telescopic Rail, 429mm Depth, 35kg Max Load
- RS庫存編號:
- 220-585
- 製造零件編號:
- DZ0201-0024
- 製造商:
- Accuride
- RS庫存編號:
- 220-585
- 製造零件編號:
- DZ0201-0024
- 製造商:
- Accuride
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
Models 201/204/301/305/3307/3607/3832
Strong steel construction, 35.3mm high, electro zinc plated and clear chromate
Precision high performance bearings
Mounting brackets and fittings supplied separately
Recommended fixings M4 cheese head screws (2.5mm high x 9.6mm diameter maximum) to DIN 85
Front disconnect and lockout features available for Models 204, 305,3307 and 3607
Precision high performance bearings
Mounting brackets and fittings supplied separately
Recommended fixings M4 cheese head screws (2.5mm high x 9.6mm diameter maximum) to DIN 85
Front disconnect and lockout features available for Models 204, 305,3307 and 3607
Note
All fitting positions must be used to achieve maximum load rating. Flat mounting reduces stated load carrying capacity to approximately 25%. Models 305//307 are dividable for easy assembly/disassembly. Model 305 disconnects for easy assembly/disassembly and has recessed mounting capability to reach a 100% extension with just 10mm side space
規格
Attribute | Value |
|---|---|
| Type | Telescopic Slide |
| Maximum Load | 35kg |
| Material | Steel |
| Depth | 429mm |
| Width | 9.5mm |
| Height | 35.3mm |
| Slide Length Closed | 610mm |
| Series | DZ0201 |
