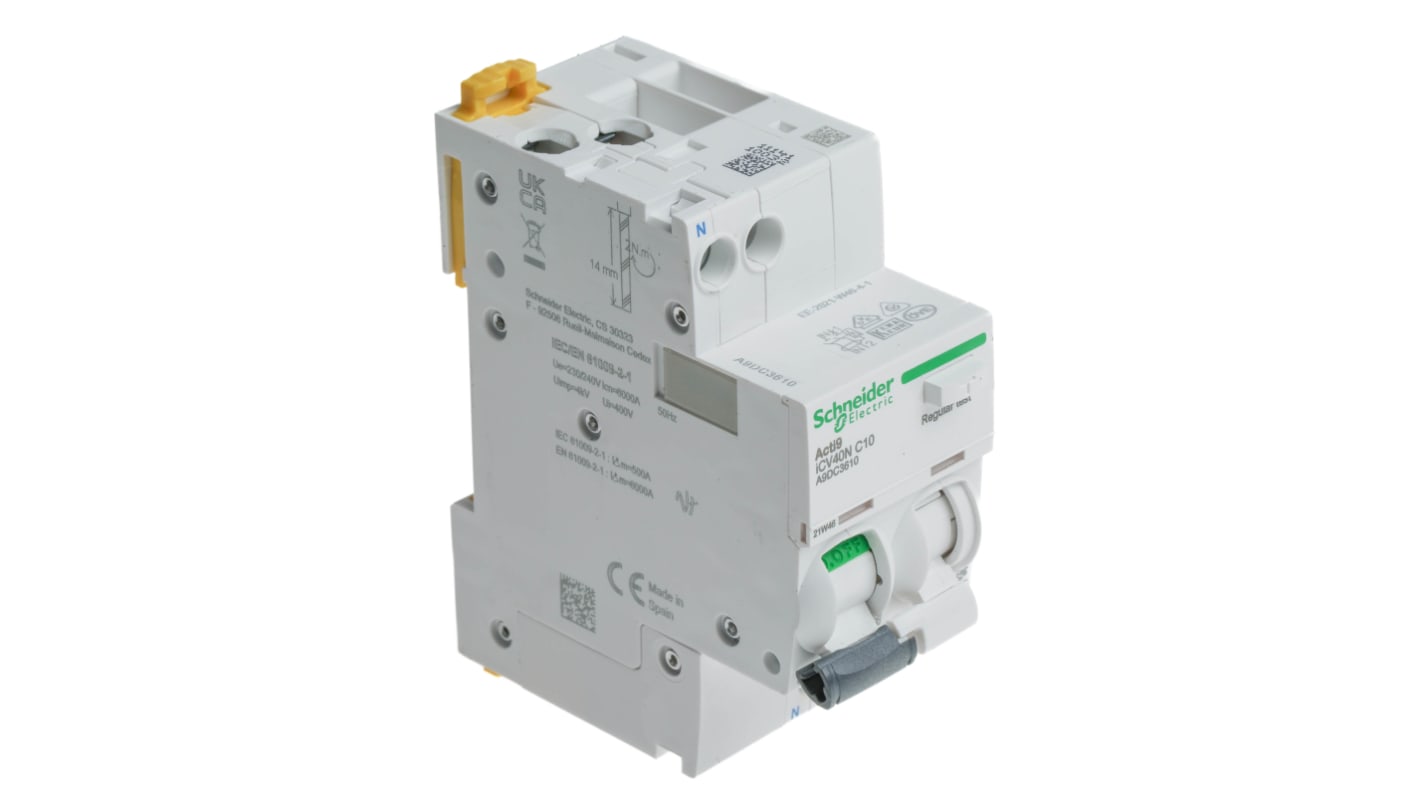

Schneider Electric Residual Current Circuit Breaker with Overload Protection, 10 A Current Rating, 1-Pole, 30 mA Trip
- RS庫存編號:
- 201-2234
- 製造零件編號:
- A9DC3610
- 製造商:
- Schneider Electric
小計（1 件）*
HK$1,502.20
库存信息目前无法访问 - 请稍候查看
單位 | 每單位 |
|---|---|
| 1 + | HK$1,502.20 |
* 參考價格
Better World
我們的 Better World 產品系列可讓您輕鬆選擇值得信賴的環保產品。 點擊此處了解更多。
- RS庫存編號:
- 201-2234
- 製造零件編號:
- A9DC3610
- 製造商:
- Schneider Electric
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | Schneider Electric | |
| Product Type | Residual Current Circuit Breaker with Overload Protection | |
| Current Rating | 10 A | |
| Range | Acti9 | |
| Series | Acti9 | |
| Number of Poles | 1 | |
| Trip Sensitivity | 30mA | |
| Tripping Characteristics | Type C | |
| Mount Type | DIN Rail | |
| Rated AC Voltage | 230 V ac | |
| Terminal Type | Screw | |
| Earth Leakage Protection Type | Type A | |
| Width | 36 mm | |
| Height | 85mm | |
| Depth | 73mm | |
| Better World Product | Yes | |
| Tripping Mechanism | Thermal Magnetic | |
| Breaking Capacity | 6kA | |
| Standards/Approvals | IEC, RoHS | |
| Application | Distribution | |
| 選取全部 | ||
|---|---|---|
品牌 Schneider Electric | ||
Product Type Residual Current Circuit Breaker with Overload Protection | ||
Current Rating 10 A | ||
Range Acti9 | ||
Series Acti9 | ||
Number of Poles 1 | ||
Trip Sensitivity 30mA | ||
Tripping Characteristics Type C | ||
Mount Type DIN Rail | ||
Rated AC Voltage 230 V ac | ||
Terminal Type Screw | ||
Earth Leakage Protection Type Type A | ||
Width 36 mm | ||
Height 85mm | ||
Depth 73mm | ||
Better World Product Yes | ||
Tripping Mechanism Thermal Magnetic | ||
Breaking Capacity 6kA | ||
Standards/Approvals IEC, RoHS | ||
Application Distribution | ||
Schneider Electric RCBO, 6kA Breaking Capacity, 30mA Trip Sensitivity - A9 Series - A9DC3610
This Schneider Electric residual current breaker with overcurrent (RCBO) provides full protection against short circuits, overloads and earth leakage currents. It instantly cuts power to your electrical system when a fault occurs, preventing damage to equipment. A breaking capacity of 6kA at 230V AC 50/60Hz means it has a high threshold for current surges and won't cause an electric arc easily. For quick diagnosis, the breaker switch is marked with status indicators, so it's easy to see when it's on or off.
Features & Benefits
• Can be secured with a padlock to prevent unauthorised access
• Mechanical service life of 20,000 cycles for long term performance
• Low weight of 210g, so it's easy to handle and won't strain your equipment
• Easy DIN rail mounting saves time and effort
• Wide operating temperature range of -25°C to +60°C for use in demanding environments
Applications
• Fire alarm systems
• Water heaters
• Power sockets
What's the difference between an MCB and an RCBO?
A miniature circuit breaker (MCB) provides protection from overloads, such as overcurrents and short circuits. An RCBO offers the advantage of complete protection from both overloads and earth leakage currents too.
