- RS庫存編號:
- 705-1654
- 製造零件編號:
- K56231GRY
- 製造商:
- MK Electric
- RS庫存編號:
- 705-1654
- 製造零件編號:
- K56231GRY
- 製造商:
- MK Electric
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊

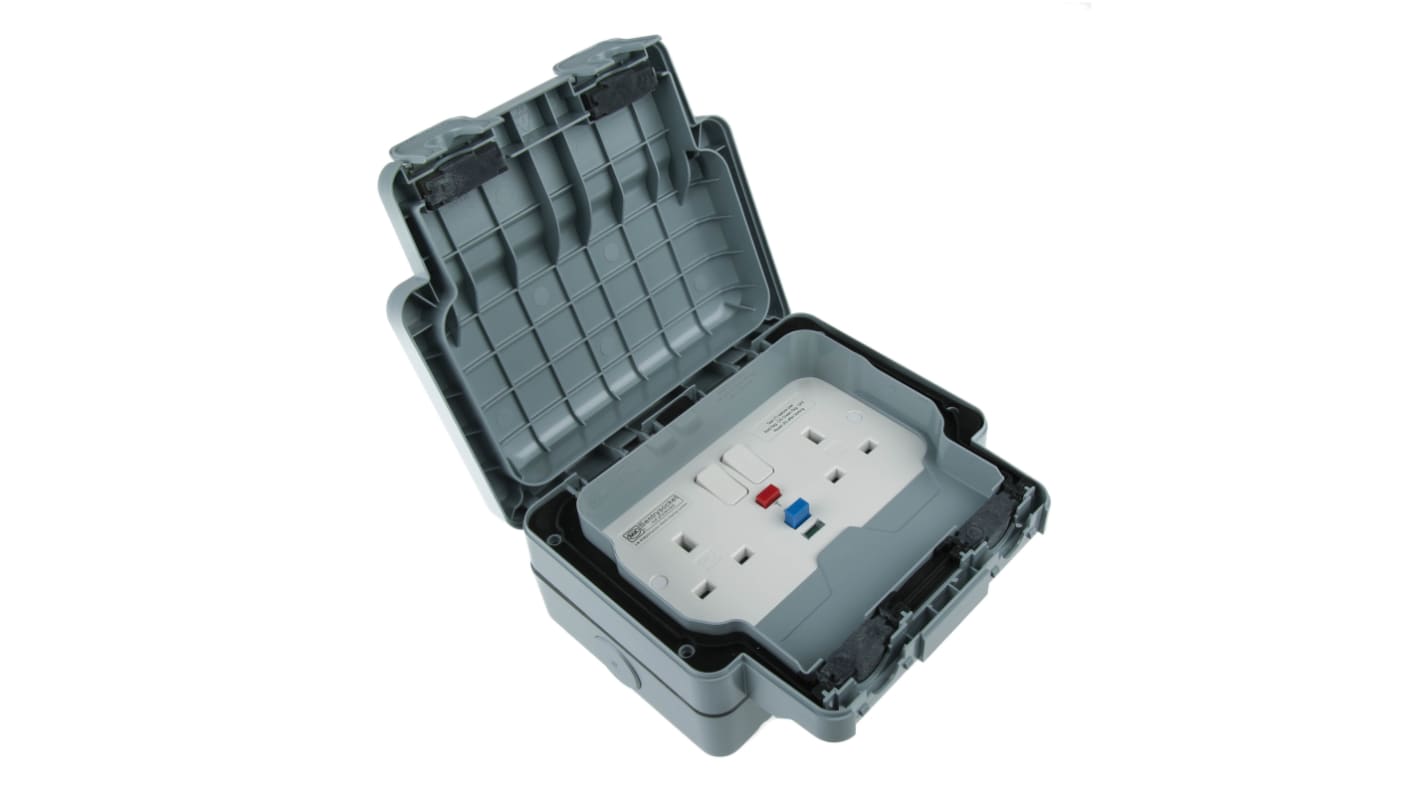

MK Electric RCD Socket
The MK Electric Masterseal Plus series 2 gang single pole RCD socket has a current rating of 13A. It is specifically developed for outdoor and indoor environments and is also useful at places where wiring devices and accessories are at risk from penetration by dust or water. Apart from total protection against dust, it is also protected against high-pressure jets of water from any direction. The sockets can seal around virtually any standard 13A plug including moulded plugs allowing safe connection for any appliance. An improved catch eases the opening and closing of the lid, whilst ensuring the integrity of the seal. The seal is fixed to the mounting frame of the product, enabling rapid installation and removing the risk of error while placing a floating gasket.
Features and Benefits
BS socket
Grey in colour
Height is 157mm
Matt finish
Rocker switch
Surface mount
Trip current is 30mA
Width is 175mm
Polycarbonate material
Rear drill holes
Patented gel seal
Grey in colour
Height is 157mm
Matt finish
Rocker switch
Surface mount
Trip current is 30mA
Width is 175mm
Polycarbonate material
Rear drill holes
Patented gel seal
Applications
Agriculture
Commercial
Industrial
Commercial
Industrial
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP66 rated
BS EN 61340-5-1:2007
IP66 rated
規格
Attribute | Value |
---|---|
Material | Polycarbonate |
Number of Gangs | 2 |
RCD Type | Active |
Series Name | Masterseal plus |
Colour | Grey |
Faceplate Depth | 50mm |
International Protection Rating | IP66 |
Current Rating | 13A |
Colour Family | Grey |
Faceplate Mounting Type | Screwed |
Height | 157mm |
Trip Current | 30mA |
Series | Masterseal plus |
Number of Poles | 1 |
Width | 175mm |
Fixing Standard | BS |
Switch Style | Rocker |
