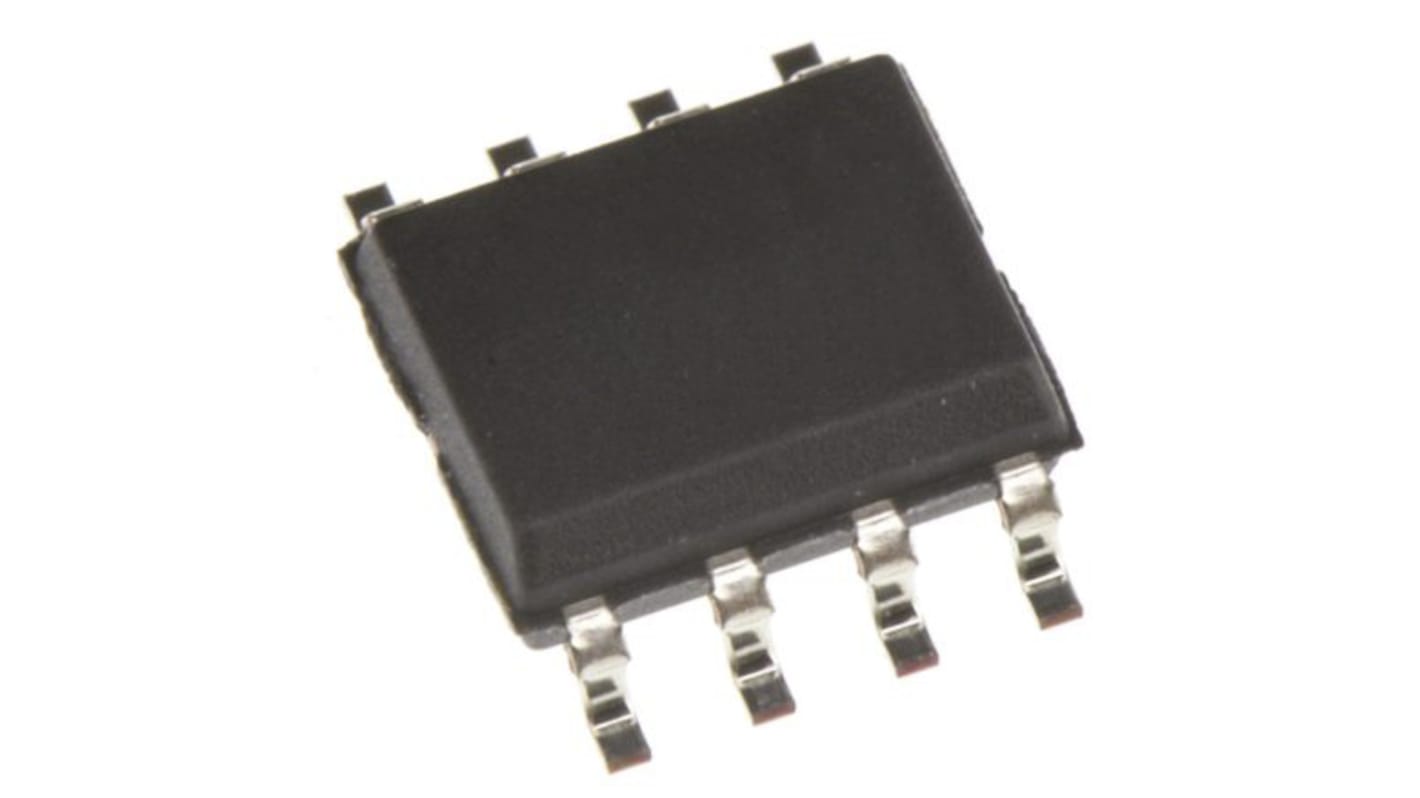

STMicroelectronics M41T80M6F, Real Time Clock Serial-2 Wire, Serial-I2C, 8-Pin SOIC
- RS庫存編號:
- 188-9342P
- 製造零件編號:
- M41T80M6F
- 製造商:
- STMicroelectronics
可享批量折扣
小計 625 件 (以卷裝提供)*
HK$12,250.00
訂單超過 HK$250.00 免費送貨
有庫存
- 1,407 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 625 - 1249 | HK$19.60 |
| 1250 + | HK$19.10 |
* 參考價格
- RS庫存編號:
- 188-9342P
- 製造零件編號:
- M41T80M6F
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Functions | Alarm, Calendar | |
| Date Format | Binary, D:D:M:Y:C | |
| Bus Type | Serial-2 Wire, Serial-I2C | |
| Mounting Type | Surface Mount | |
| Package Type | SO | |
| Pin Count | 8 | |
| Dimensions | 5 x 4 x 1.5mm | |
| Length | 5mm | |
| Width | 4mm | |
| Height | 1.5mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 2 V | |
| Minimum Operating Temperature | -40 °C | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Functions Alarm, Calendar | ||
Date Format Binary, D:D:M:Y:C | ||
Bus Type Serial-2 Wire, Serial-I2C | ||
Mounting Type Surface Mount | ||
Package Type SO | ||
Pin Count 8 | ||
Dimensions 5 x 4 x 1.5mm | ||
Length 5mm | ||
Width 4mm | ||
Height 1.5mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 2 V | ||
Minimum Operating Temperature -40 °C | ||
Counters for tenths/hundredths of seconds, seconds, minutes, hours, day, date, month, year, and century
32 KHz crystal oscillator integrating load capacitance (12.5 pF) providing exceptional oscillator stability and high crystal series resistance operation
Serial interface supports I2C bus (400 kHz)
2.0 to 5.5 V clock operating voltage
32 KHz square wave on power-up to drive a microcontroller in low-power mode
Programmable (1 Hz to 32 KHz) square wave
Programmable alarm and interrupt function
Low operating current of 200 μA
Operating temperature of –40 to 85 °C
32 KHz crystal oscillator integrating load capacitance (12.5 pF) providing exceptional oscillator stability and high crystal series resistance operation
Serial interface supports I2C bus (400 kHz)
2.0 to 5.5 V clock operating voltage
32 KHz square wave on power-up to drive a microcontroller in low-power mode
Programmable (1 Hz to 32 KHz) square wave
Programmable alarm and interrupt function
Low operating current of 200 μA
Operating temperature of –40 to 85 °C
