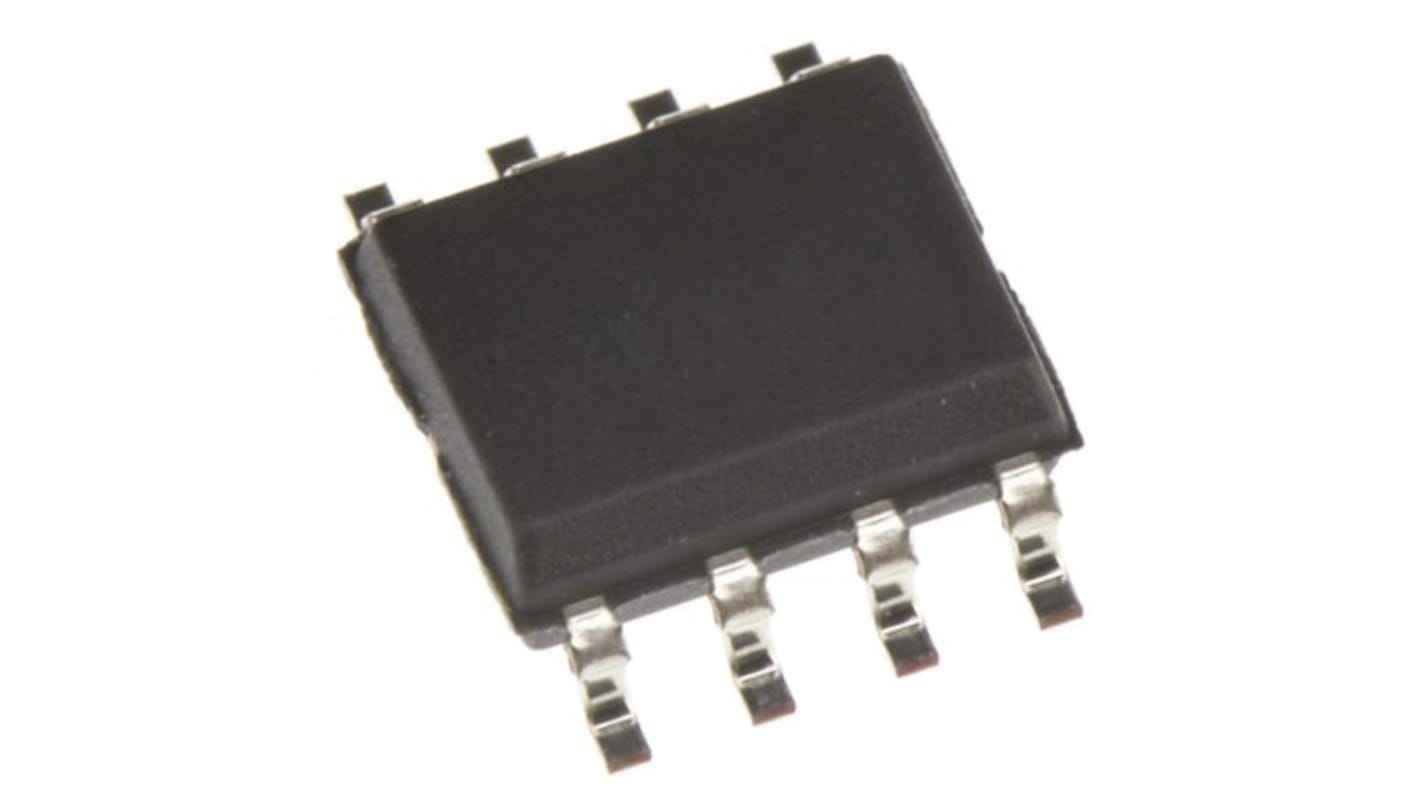

STMicroelectronics M41T82SM6F, Real Time Clock, 32bit RAM Serial-2 Wire, Serial-I2C, 8-Pin SOIC
- RS庫存編號:
- 188-9363P
- 製造零件編號:
- M41T82SM6F
- 製造商:
- STMicroelectronics
可享批量折扣
小計 625 件 (以卷裝提供)*
HK$14,500.00
訂單超過 HK$250.00 免費送貨
有庫存
- 227 件準備從其他地點送貨
**需要更多嗎？**輸入您需要的數量，然後按一下「查看送貨日期」以查詢更多庫存和送貨詳細資訊。
單位 | 每單位 |
|---|---|
| 625 - 1249 | HK$23.20 |
| 1250 + | HK$22.90 |
* 參考價格
- RS庫存編號:
- 188-9363P
- 製造零件編號:
- M41T82SM6F
- 製造商:
- STMicroelectronics
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | STMicroelectronics | |
| Functions | Alarm, Battery Backup, Calendar, Watchdog Timer | |
| Date Format | Binary, D:D:M:Y:C | |
| User RAM | 32bit | |
| Bus Type | Serial-2 Wire, Serial-I2C | |
| Mounting Type | Surface Mount | |
| Package Type | SO | |
| Pin Count | 8 | |
| Dimensions | 5 x 4 x 1.5mm | |
| Length | 5mm | |
| Width | 4mm | |
| Height | 1.5mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Supply Voltage | 3 V | |
| Minimum Operating Temperature | -40 °C | |
| 選取全部 | ||
|---|---|---|
品牌 STMicroelectronics | ||
Functions Alarm, Battery Backup, Calendar, Watchdog Timer | ||
Date Format Binary, D:D:M:Y:C | ||
User RAM 32bit | ||
Bus Type Serial-2 Wire, Serial-I2C | ||
Mounting Type Surface Mount | ||
Package Type SO | ||
Pin Count 8 | ||
Dimensions 5 x 4 x 1.5mm | ||
Length 5mm | ||
Width 4mm | ||
Height 1.5mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Supply Voltage 3 V | ||
Minimum Operating Temperature -40 °C | ||
The MC34063A/E series is a monolithic control circuit which delivers the main functions for DC-DC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch. Output voltage is adjustable through two external resistors with a 2% reference accuracy. Employing a minimum number of external components, the MC34063A/E device series is designed for step-down, step-up and voltage-inverting applications.
Output switch current in excess of 1.5 A
2 % reference accuracy
Low quiescent current: 2.5 mA (typ.)
Operating from 3 V to 40 V
Frequency operation to 100 kHz
Active current limiting
2 % reference accuracy
Low quiescent current: 2.5 mA (typ.)
Operating from 3 V to 40 V
Frequency operation to 100 kHz
Active current limiting
