Maxim Integrated DS1305+, Real Time Clock (RTC), 96B RAM Serial-SPI, 16-Pin PDIP
- RS庫存編號:
- 189-8595
- 製造零件編號:
- DS1305+
- 製造商:
- Maxim Integrated

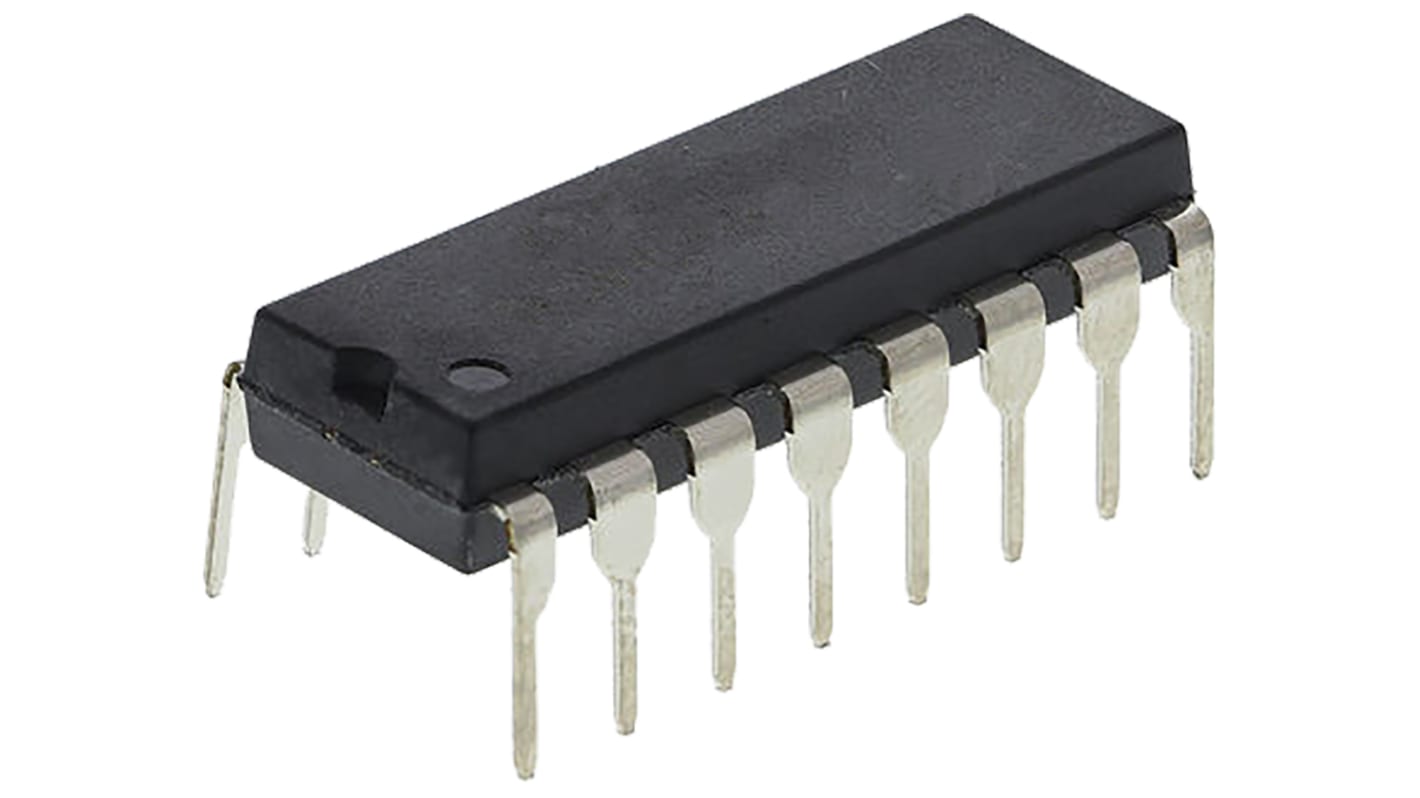

此圖片僅供參考，請參閲產品詳細資訊及規格
查看所有Real Time Clocks
- RS庫存編號:
- 189-8595
- 製造零件編號:
- DS1305+
- 製造商:
- Maxim Integrated
法例與合規
- COO (Country of Origin):
- PH
產品詳細資訊
Real Time Clock with NV Memory, Integrated
A range of real-time clock products from Maxim incorporating non-volatile RAM memory for data retention. The clock/calendar functions provide seconds, minutes, hours, day, date, month, and year information. The clocks generally operate in either the 12 or 24-hour format with an AM/PM indicator. Additional features may include watchdog timers, alarms and trickle-charging facilities for external back-up batteries; some devices are available which include an integrated crystal for the clock oscillator.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Note
Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
規格
| Attribute | Value |
| Functions | Alarm, Calendar |
| Date Format | DW:DM:M:Y |
| Time Format | HH:MM:SS |
| User RAM | 96B |
| Bus Type | Serial-SPI |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 16 |
| Dimensions | 19.43 x 7.87 x 4.45mm |
| Length | 19.43mm |
| Width | 7.87mm |
| Height | 4.45mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | 0 °C |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Temperature | +70 °C |
