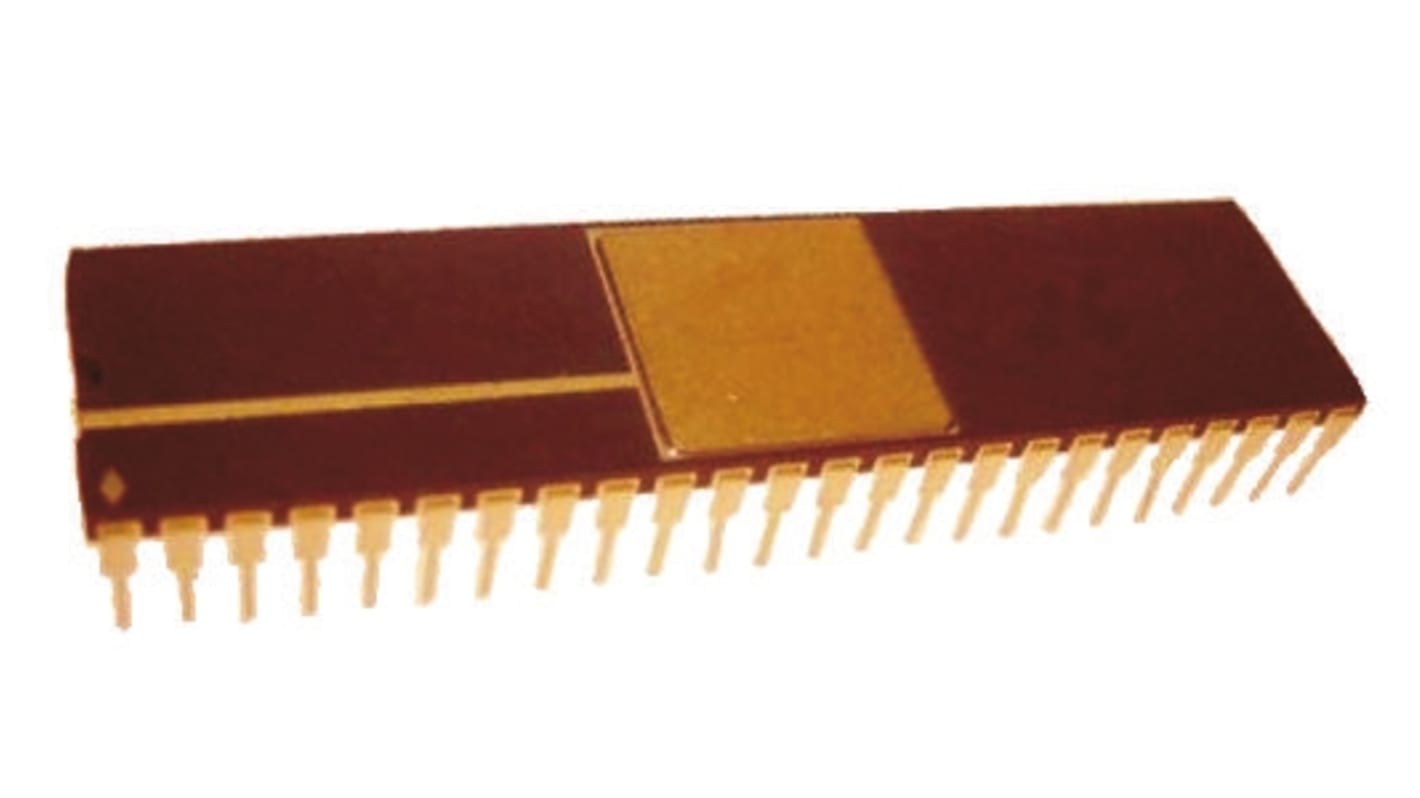

AD2S80AJD, Resolver to Digital Converter 16 bit- Differential-Input Parallel 16.25 rps, 40-Pin SBDIP
- RS庫存編號 809-9799
- 製造零件編號 AD2S80AJD
- 製造商 Analog Devices
Synchro/Resolver to Digital Converters, Analog Devices
A resolver-to-digital or synchro-to-digital converter is a transducer that converts the angular position and/or velocity of a rotating shaft to a digital output signal. They deliver signals proportional to the sine and/or cosine of the shaft angle and/or velocity.
Analogue to Digital Converters - Analog Devices
Analogue to Digital Converters translate analogue electrical signals for data processing purposes. Analog Devices offers the industry’s largest range of A/D converter products that design engineers depend on for reliable performance in the harshest environments, both on Earth and in space.
| Attribute | Value |
|---|---|
| Resolution | 16 bit |
| Accuracy | ±8arcmin |
| Input Signal Type | Differential |
| Digital Interface Type | Parallel |
| Typical Tracking Rate | 16.25 rps |
| Typical Reference Frequency | 20kHz |
| Velocity Output | Yes |
| Mounting Type | Through Hole |
| Package Type | SBDIP |
| Pin Count | 40 |
| Power Supply Type | Dual, Single |
| Typical Single Supply Voltage | 5 V |
| Typical Dual Supply Voltage | ±12V |
| Dimensions | 53.24 x 15.75 x 4.2mm |
| Length | 53.24mm |
| Minimum Operating Temperature | 0 °C |
| Height | 4.2mm |
| Maximum Operating Temperature | +70 °C |
| Width | 15.75mm |
