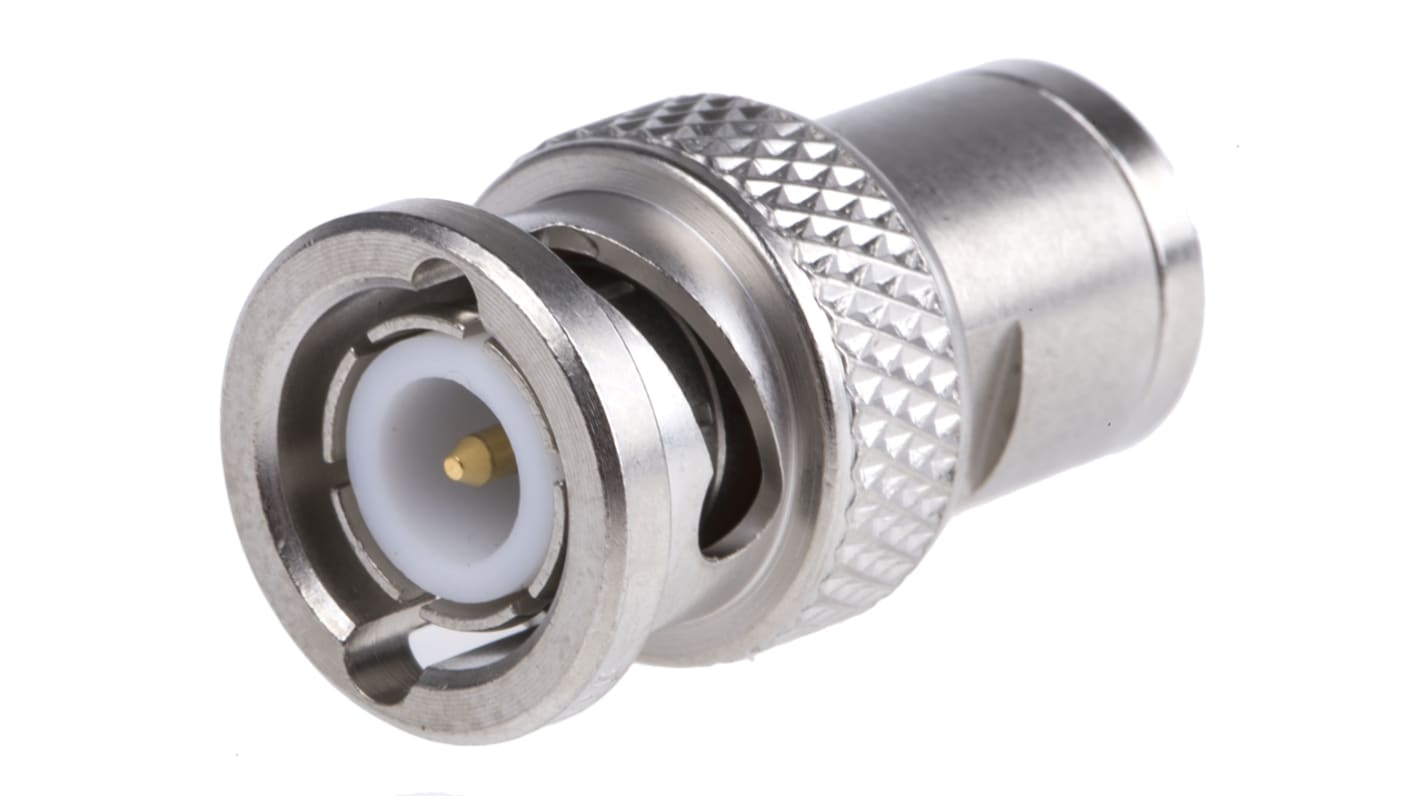

Radiall 50Ω Straight BNC RF Terminator, 4GHz, 1W Average Power Rating
- RS庫存編號:
- 296-7955
- 製造零件編號:
- R404111000
- 製造商:
- Radiall
247 現貨庫存，可於3工作日發貨。
已增加
單價 个
HK$150.62
| 單位 | Per unit |
| 1 - 9 | HK$150.62 |
| 10 - 24 | HK$146.10 |
| 25 - 49 | HK$141.57 |
| 50 - 99 | HK$138.55 |
| 100 + | HK$135.55 |
- RS庫存編號:
- 296-7955
- 製造零件編號:
- R404111000
- 製造商:
- Radiall
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
Termination
Frequency range 0 to 2.5GHz
Approvals
7777
Radiall BNC RF Coaxial Connectors
Brass -bodied connectors with PTFE insulators, and gold plated brass centre contacts. Certain connectors are available in both crimp and clamp braiding options and bulkhead sockets. A commercial range of BNC plugs and bulkhead sockets is available in bulk packs of 100. These have a different specification to the standard Radiall range. See the respective details in the technical specification table below.
規格
Attribute | Value |
|---|---|
| Interface Type | BNC |
| Gender | Male |
| Body Orientation | Straight |
| Impedance | 50Ω |
| Body Plating | Nickel |
| Operating Frequency | 4GHz |
| Average Power Rating | 1W |
| Contact Material | Brass |
| Contact Plating | Gold over Nickel |
