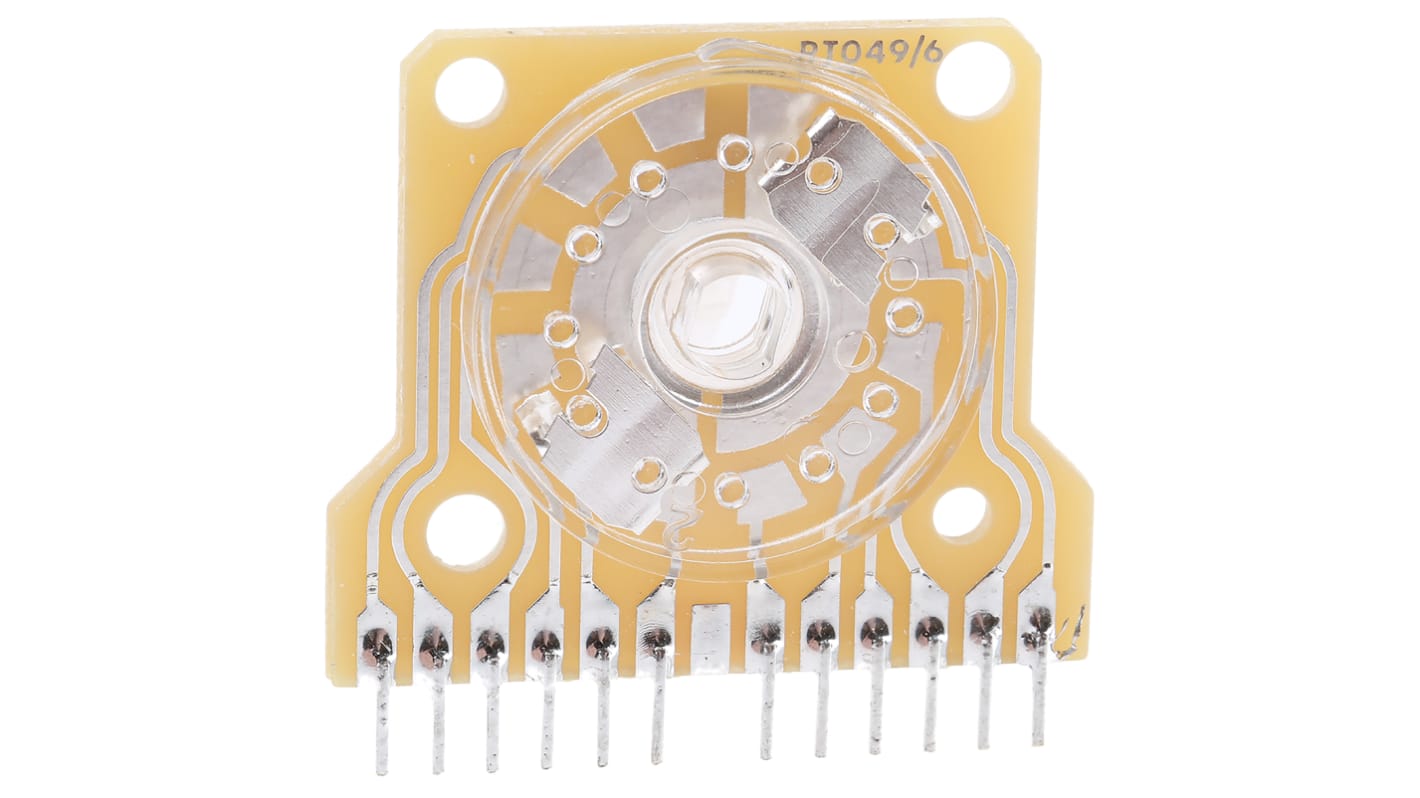

Lorlin 30° Rotary Switch Wafer 5-Position
- RS庫存編號:
- 352-301
- 製造零件編號:
- PT602-003
- 製造商:
- Lorlin
76 現貨庫存，可於3工作日發貨。
單價 个
HK$46.01
單位 | 每單位 |
|---|---|
| 1 - 49 | HK$46.01 |
| 50 - 99 | HK$44.63 |
| 100 - 249 | HK$43.26 |
| 250 - 499 | HK$42.35 |
| 500 + | HK$41.44 |
- RS庫存編號:
- 352-301
- 製造零件編號:
- PT602-003
- 製造商:
- Lorlin
產品概覽和技術數據資料表
法例與合規
- COO (Country of Origin):
- GB
產品詳細資訊
PCB Switch Kit
A rotary switch mechanism with adjustable stop which will take up to a maximum of five extra wafers from the variety available
A spacer kit is available to maintain a 6.35mm pitch between individual wafers
Terminal spacing is on a 2.54mm pitch. The switch is supplied fitted with a non-interchangeable drive wafer
Shaft diameter 6mm
All wafers are break before make
A spacer kit is available to maintain a 6.35mm pitch between individual wafers
Terminal spacing is on a 2.54mm pitch. The switch is supplied fitted with a non-interchangeable drive wafer
Shaft diameter 6mm
All wafers are break before make
Note
The 'spacers' contain a selection of items - qty 10 spacers, qty 2 front insulators, qty 1 rear driver shafts, qty 1 retaining strap, qty 2 tie rods, and qty 2 push-on fixings.
規格
Attribute | Value |
|---|---|
| Angle of Throw | 30° |
| Number of Switch Positions | 5 |
| Voltage Rating | 250 V ac, 250V dc |
| Number of Contacts | 2 |
| Contact Configuration | DP |
| Contact Current Rating | 500 mA |
| Contact Material | Silver Plated Phosphor Bronze |
| Case Material | PET |
| Height | 31.4mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
| Mounting Type | PCB |
| Mechanical Life | 10000Operations |
| Width | 35.25mm |
| Terminal Type | Through Hole |
