Miniature Pt 1000 and Pt 100 ceramic-cased temperature probes. PTFE or fibreglass wired output. Linear output.

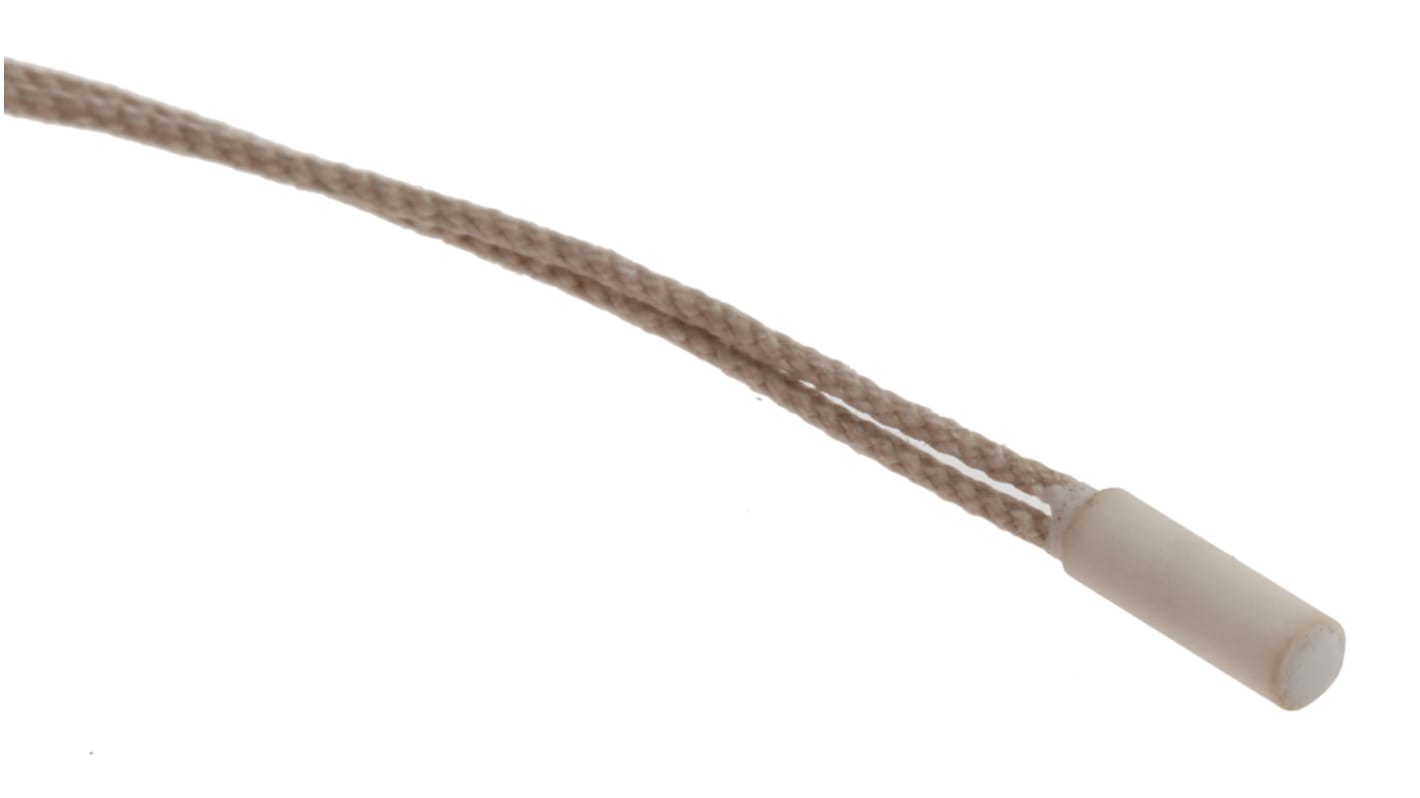

Honeywell RTD Sensor, 2.18mm x 6.35mm, 2 Wire - HEL-700 Series - HEL-707-T-0-12-00
To measure temperatures with a high degree of accuracy, use this RTD (resistance temperature detector) sensor from Honeywell. It consists of a probe that changes its electrical resistance in line with its temperature, along with two wires that can be connected to an external circuit or output device. This is a highly efficient system that offers an excellent level of repeatability. A high maximum temperature of +540°C makes this product particularly suitable for extremely hot environments, and it can also measure as low as -75°C for outdoor or refrigeration applications.
Features and Benefits
• Accuracy of ±0.2°C means that this sensor can be used for critical applications where precision is crucial • Small dimensions make it suitable for settings where space is limited • Sensor has a fast response time of 0.15 seconds, so it's ideal for frequent measurements
Application Information
• Process control • Electronic assemblies • Refrigeration equipment
What material is this RTD made from?
The sensor at the end of the probe is a thin platinum film. This provides a high level of stability and a linear change in resistance to temperature to ensure the measurements are as accurate as possible.
