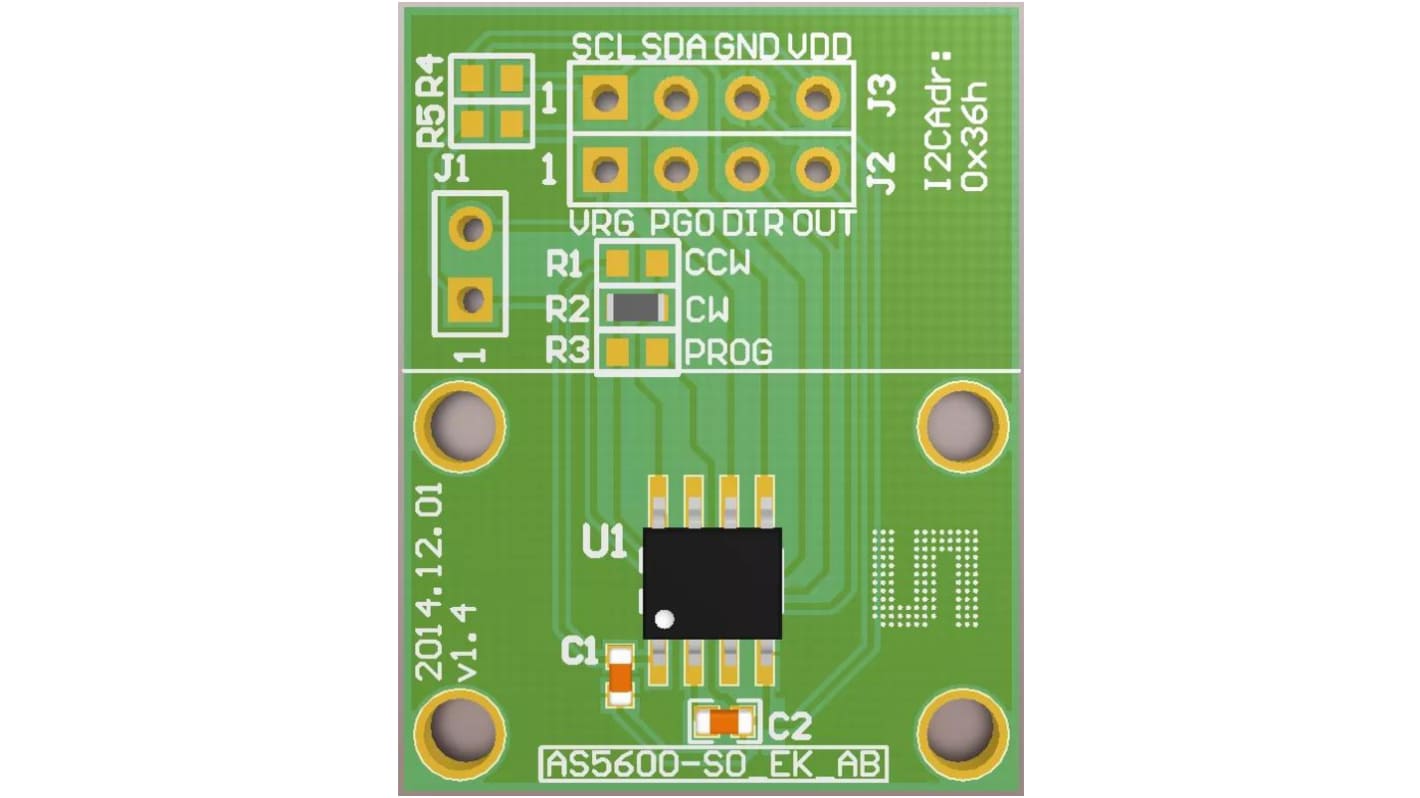

The ams OSRAM Adapter board allows an easy and fast evaluation of the AS5600 rotary magnetic position sensor in the lab or together with an existing system. This small factor board is fully assembled with AS5600 position sensor and its necessary external components. All relevant signals are available on a dual-row 2.54mm 4-pin header footprint.
Compact design for seamless integration into prototypes Facilitates straightforward wiring to existing systems
