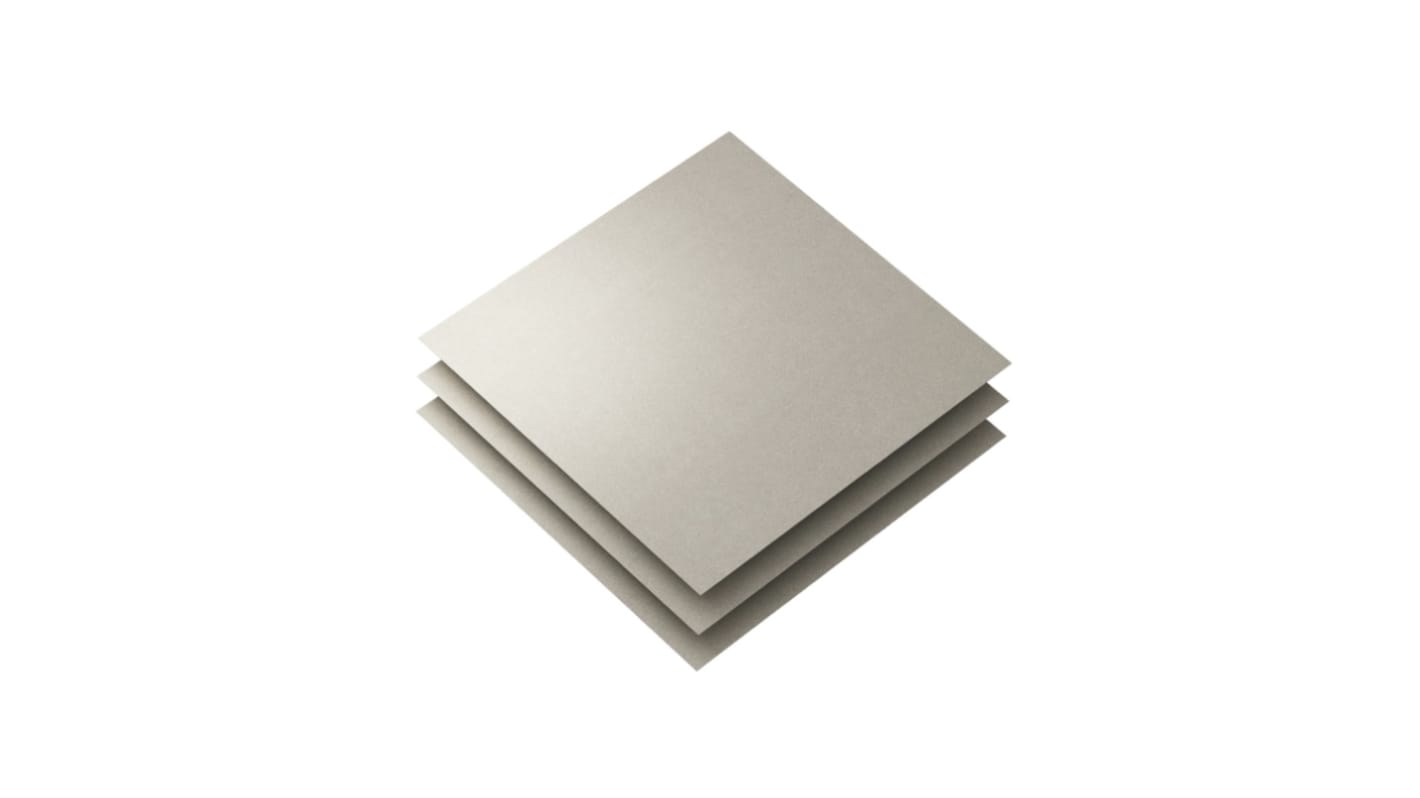

KEMET Polymer, Magnetic Shielding Sheet, 120mm x 120mm x 0.025mm
- RS庫存編號:
- 181-5961
- 製造零件編號:
- FG1(25)-120X120T2900
- 製造商:
- KEMET
暫時無法供應
我們無法確定此產品何時有貨，RS 預計將其從我們的產品目錄中移除。
- RS庫存編號:
- 181-5961
- 製造零件編號:
- FG1(25)-120X120T2900
- 製造商:
- KEMET
規格
產品概覽和技術數據資料表
法例與合規
產品詳細資訊
透過選取一個或多個屬性來查找類似產品。
選取全部 | 屬性 | 值 |
|---|---|---|
| 品牌 | KEMET | |
| Material | Polymer base blended with micron sized magnetic powders | |
| Fixing Method | Self-Adhesive | |
| Series | FG1 | |
| Thickness | 0.025mm | |
| Length | 120mm | |
| Width | 120mm | |
| Operating Temperature Range | -40 → +125 °C | |
| Minimum Operating Temperature | -40°C | |
| Peak Frequency | 10GHz | |
| Maximum Operating Temperature | +105°C | |
| Maximum Shielded Frequency | 1GHz | |
| Minimum Shielded Frequency | 1000MHz | |
| 選取全部 | ||
|---|---|---|
品牌 KEMET | ||
Material Polymer base blended with micron sized magnetic powders | ||
Fixing Method Self-Adhesive | ||
Series FG1 | ||
Thickness 0.025mm | ||
Length 120mm | ||
Width 120mm | ||
Operating Temperature Range -40 → +125 °C | ||
Minimum Operating Temperature -40°C | ||
Peak Frequency 10GHz | ||
Maximum Operating Temperature +105°C | ||
Maximum Shielded Frequency 1GHz | ||
Minimum Shielded Frequency 1000MHz | ||
- COO (Country of Origin):
- JP
The KEMET Noise Suppression Sheet Flex Suppressor® is effectively designed for high frequency noise that is generated from the electronic devices. The flexible sheet is a polymer base, blended with micron-sized magnetic powders dispersed throughout the material. These sheets are effective for electromagnetic wave and resonance suppression, and can be cut into a variety of shapes and sizes.
Electromagnetic wave suppression – the electromagnetic wave enters through the sheet and is suppressed by losing its magnetic structure
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
Resonance suppression – controls the high frequency current and suppresses unwanted electromagnetic resonance by creating impedance
Wide range of frequencies available from MHz band to GHz band
Thin, flexible material used in portable equipment
Virtually no limitation to where it can be used
Less time required for installation
Easily cut into any shape
Halogen-free
