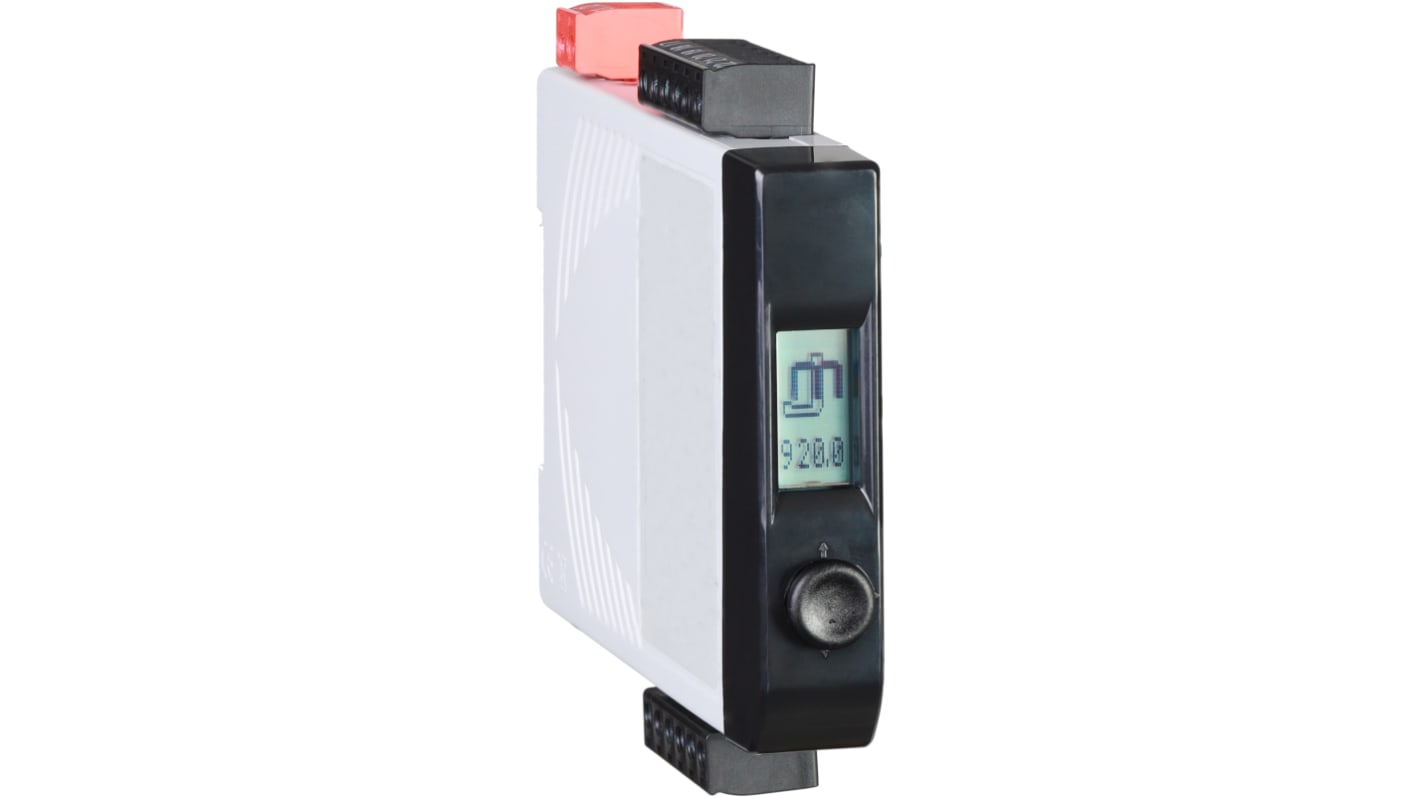

JM CONCEPT ULCOS 800 Series Frequency / Current Converter, Frequency Input, Current, Voltage, Relay Output, 22 →
- RS庫存編號:
- 232-8252
- 製造零件編號:
- ULCOS820F2
- 製造商:
- JM CONCEPT
- RS庫存編號:
- 232-8252
- 製造零件編號:
- ULCOS820F2
- 製造商:
- JM CONCEPT
法例與合規
- COO (Country of Origin):
- FR
產品詳細資訊
The JM CONCEPT Frequency Converter is coupled with a sensor power supply, with 2 analog outputs and 2 relays. It has voltage input function and linear type display function with resolution of 1 and 0 offset. It has a factory setting of high alarm with threshold value of 9999 and no storage.
Response time <300ms
Thermal drift <25ppm
Residual ripple on current output <20μA
Residual ripple on voltage output <10mV
Maximum of consumption <7VA
Thermal drift <25ppm
Residual ripple on current output <20μA
Residual ripple on voltage output <10mV
Maximum of consumption <7VA
規格
Attribute | Value |
|---|---|
| Module Type | Frequency Converter |
| Input Signal Type | Frequency |
| Output Signal Type | Current, Voltage, Relay |
| Input Range | 1000000Hz |
| Supply Voltage | 22 → 240 V dc, 90 → 230V ac |
| Mounting Type | DIN Rail |
| Operating Temperature Range | -10 → +60°C |
| Series | ULCOS 800 |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
