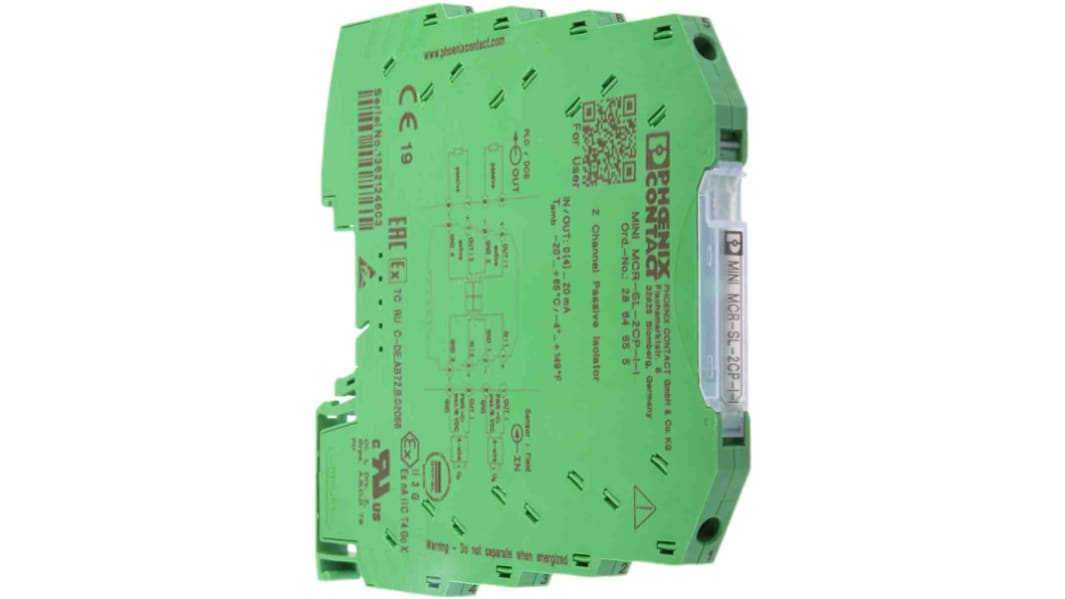

Phoenix Contact MINI MCR Series Signal Conditioner, 18V, Current Input, Current Output
- RS庫存編號:
- 489-2718
- 製造零件編號:
- 2864655
- 製造商:
- Phoenix Contact
查看所有Signal Conditioners
- RS庫存編號:
- 489-2718
- 製造零件編號:
- 2864655
- 製造商:
- Phoenix Contact
- COO (Country of Origin):
- DE
法例與合規
- COO (Country of Origin):
- DE
產品詳細資訊
Passive 4-20mA Loop Isolator
These isolators can be mounted on DIN rail individually or with other units. The housings are 102.5mm high by 6.2mm wide. The performance specifications are similar to standard sized MCR products. No separate supply voltage necessary.
Features and benefits:
Single and dual channel versions available
Input and output 4-20mA
Loop powered
Input and output 4-20mA
Loop powered
規格
| Attribute | Value |
| Module Type | Loop Powered Isolator |
| Input Signal Type | Current |
| Output Signal Type | Current |
| Supply Voltage | 18V |
| Input Range | 0 → 20mA |
| Output Range | 0 → 20mA |
| Mounting Type | DIN Rail Mount |
| Operating Temperature Range | -20 → +65°C |
| Series | MINI MCR |
| Maximum Operating Temperature | +65°C |
| Minimum Operating Temperature | -20°C |
