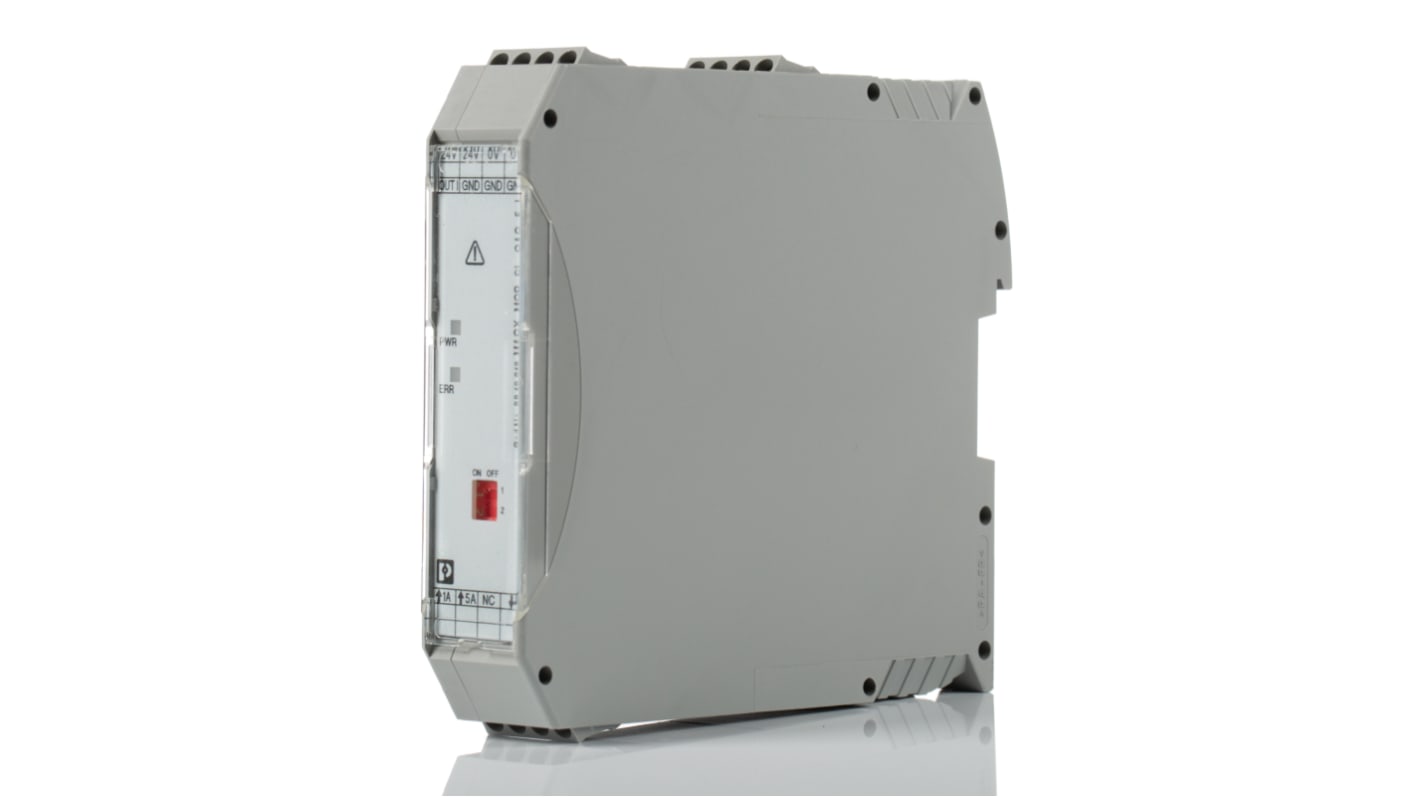

Phoenix Contact MACX MCR-SL-CAC-5-I Series Current Measuring Transducer, 24V dc Supply

Looking for a reliable way to reduce the current in your system? Choose this current transformer from Phoenix Contact. It turns input currents between 0 and 5A into an output current between 0 and 20mA to suit your setup's needs. You can easily configure the input and output using the DIP switches on the upper part of the housing.
For added safety, this device has built-in reverse polarity protection and a 35V suppressor diode to prevent electrical hazards from damaging your equipment. Its low power consumption of less than 0.9W means it's an energy-efficient option. You'll find current transformers like this one commonly used in grid stations and control rooms.

• Red and green LED indicators for ease of status monitoring
• M3-sized screw thread for simple and secure installation
• Small dimensions of 104 (H) x 22.5 (W) x 114.5mm (D) to maximise space in your setup
• IP20 rating means it's finger-safe and protected against objects larger than 12.5mm in size
• Broad operating temperature range between -20°C and +65°C for use in demanding conditions
