Analog Devices AD9154-FMC-EBZ DAC Evaluation Board for AD9154

  • RS庫存編號 875-2879
  • 製造零件編號 AD9154-FMC-EBZ
  • 製造商 Analog Devices
產品概覽和技術數據資料表
法例與合規
相容
產品詳細資訊

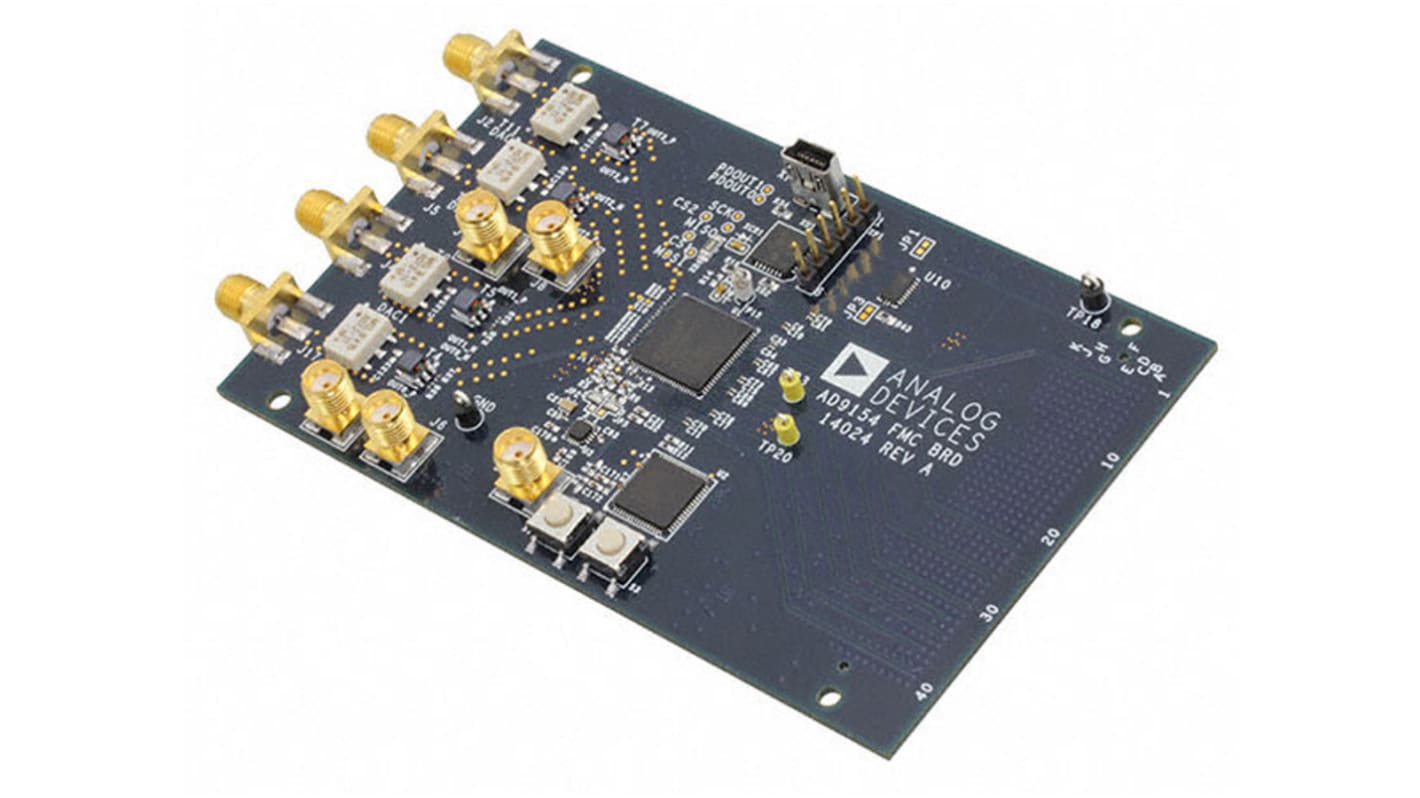

Evaluation Board for AD9154 Quad, 16-Bit, 2.4 GSPS, TxDAC+® DAC, AD9154-FMC-EBZ

The AD9154-FMC-EBZ attaches to an ADS7 data pattern generator system. The AD9154 is a quad JESD204B signal processing RF Digital to Analog Converter. The ADS7 calibrates the data and sends it to the AD9154-FMC-EBZ via its JESD204B lanes.

The AD9154-FMC-EBZ is an FMC mezzanine card. +12V, +3.3V, and VADJ power supply rails are provided by the ADS7 system via the FMC connector P1. A clock distribution chip AD9516 is included on this evaluation board as a clock fan-out and frequency divider for the DACCLK, JESD204B SYSREF signals, and a GBTCLK clock used by the ADS7. There is also an FMC standard I2C bus that is used by the ADS7 to identify the AD9154-FMC-EBZ. This I2C interface is applied in firmware in the AD9154-FMC-EBZ PIC processor (XU1). PIC firmware is installed in PIC non-volatile memory by ADI. All ADS7 to/from AD9154-FMC-EBZ interface signals are connected via the FMC connector P1.

ADC Evaluation Boards and Development Kits, Analog

規格
Attribute Value
Converter Type DAC
Featured Device AD9154
Kit Classification Evaluation Board
Resolution 16-bit
2 現貨庫存,可於3工作日發貨。
單價 個
HK$ 4,887.16
(不含稅)
單位
Per unit
1 +
HK$4,887.16
